61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Unscrew nut (1).

Unlock catches (2) and remove rocker switch for side window operation (3) downwards out of rear door trim panel (4).

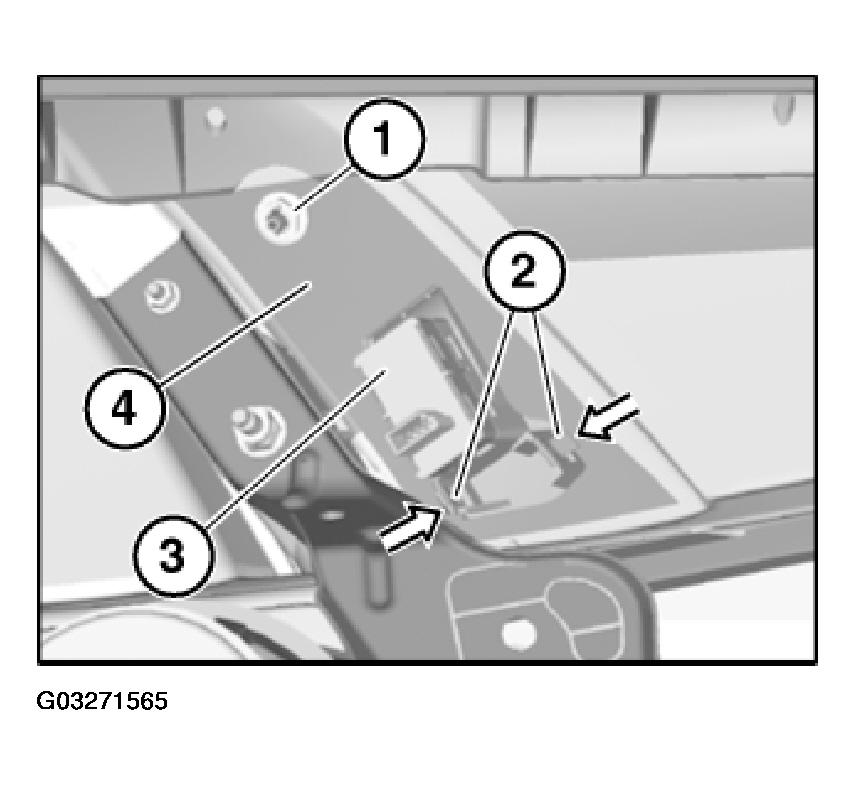

Fig 1: Identifying Rocker Switch Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hook (1) and plastic pin (2) must not be damaged.

Make sure rocker switch for side window operation (3) is installed in correct position.

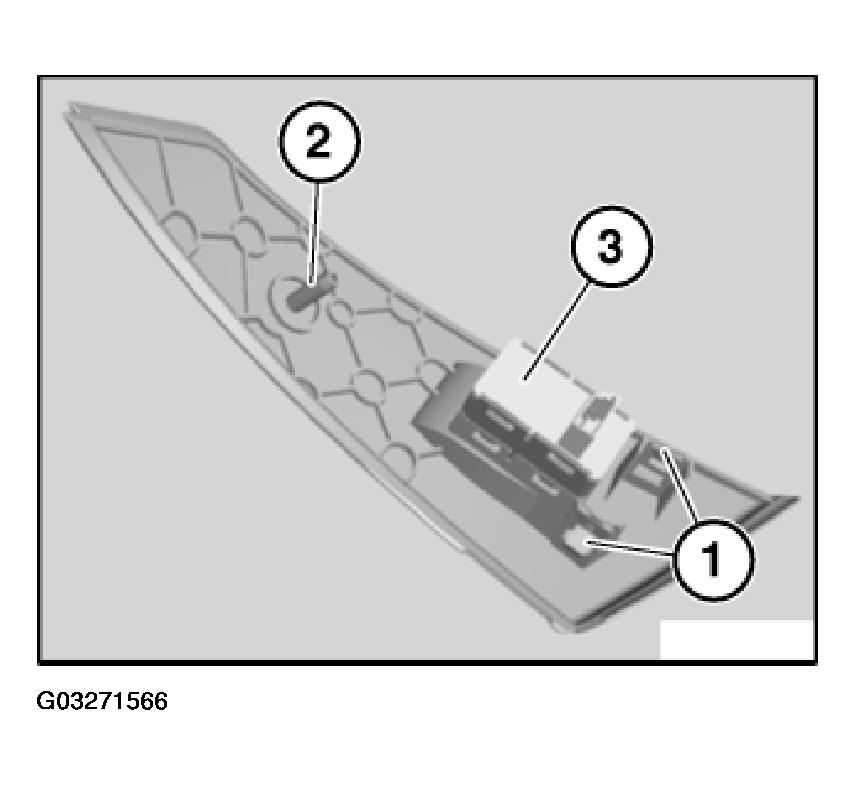

Fig 2: Identifying Rocker Switch Retaining Hook And Plastic Pin

Courtesy of BMW OF NORTH AMERICA, INC.
