61 31 011 Removing and installing/replacing volute spring cassette

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove fixture for steering column stalk. Refer to 61 31 006 REMOVING AND INSTALLING (REPLACING) FIXTURE FOR STEERING COLUMN STALK .

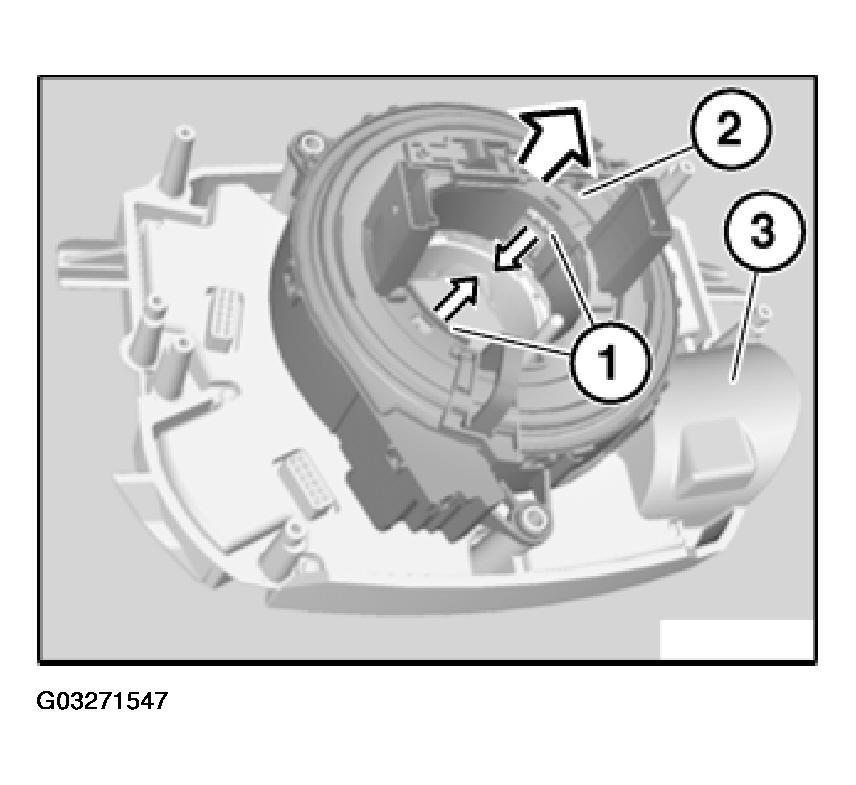

Unlock catches (1) and remove volute spring cassettes (2) in direction of arrow from fixture for steering column switch (3).

Fig 1: Removing Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

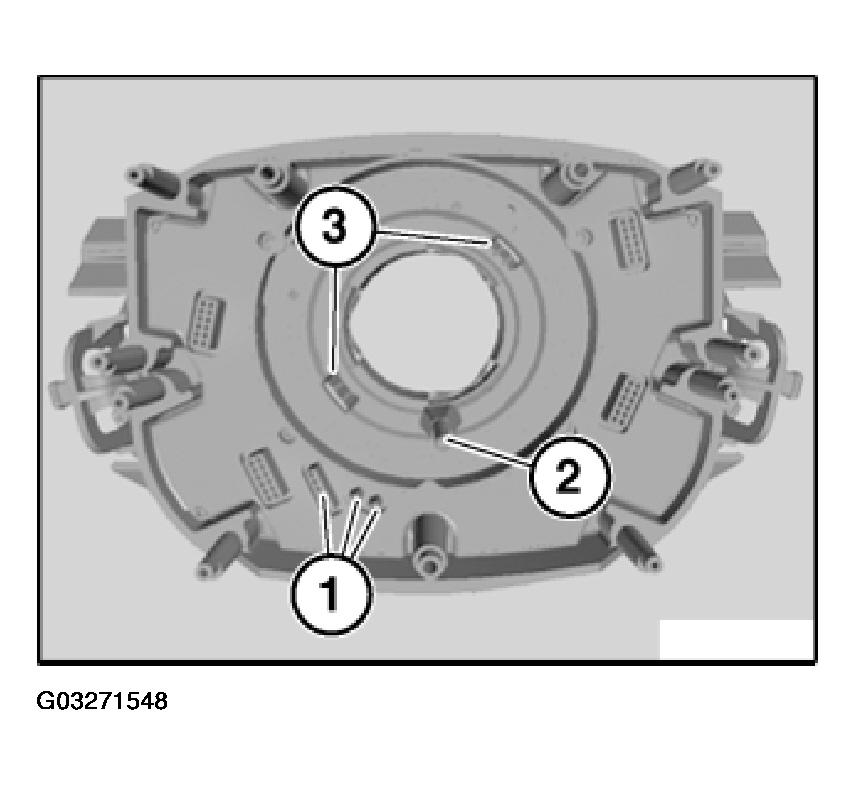

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).

Fig 2: View Of Plug Connections, Guide And Mounts For Cassette

Courtesy of BMW OF NORTH AMERICA, INC.
