61 36 570 Removing and installing/replacing windscreen wiper system relay

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove lower section of microfilter housing on right. Refer to 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION .

Release screws (1).

Remove electronics box cover (2).

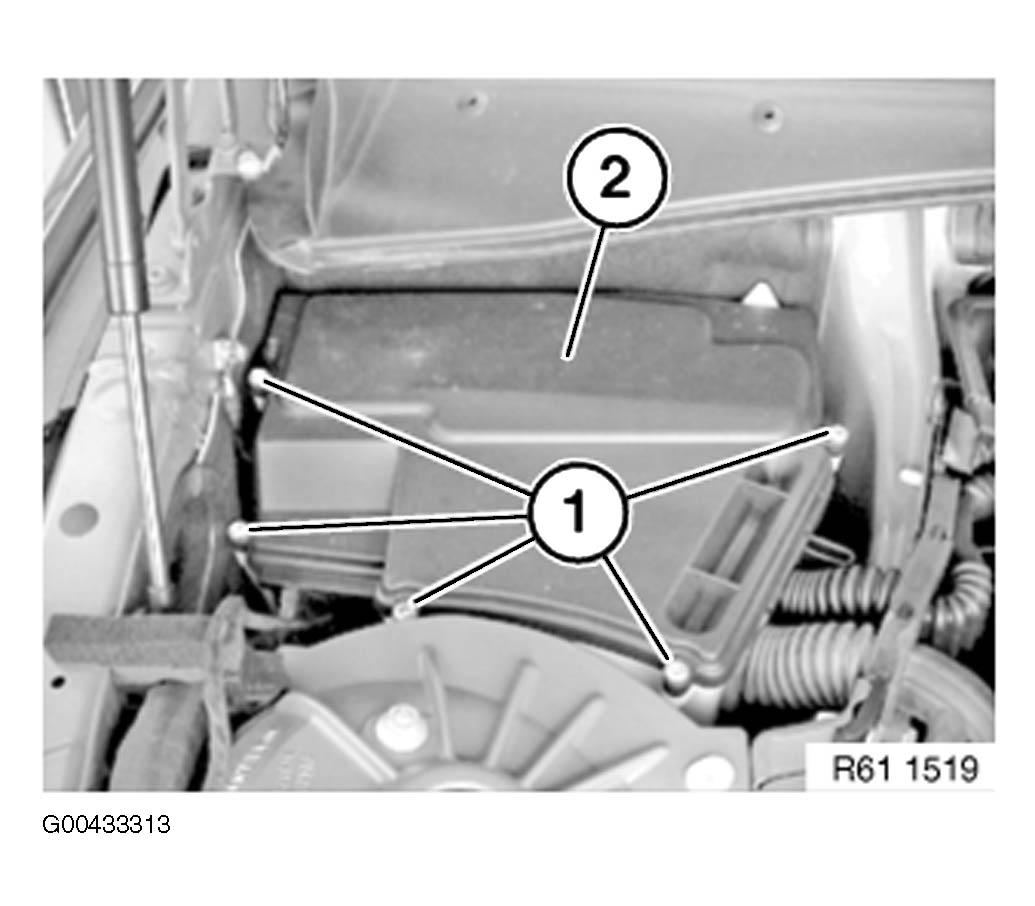

Fig 1: View Of Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach relay (1).

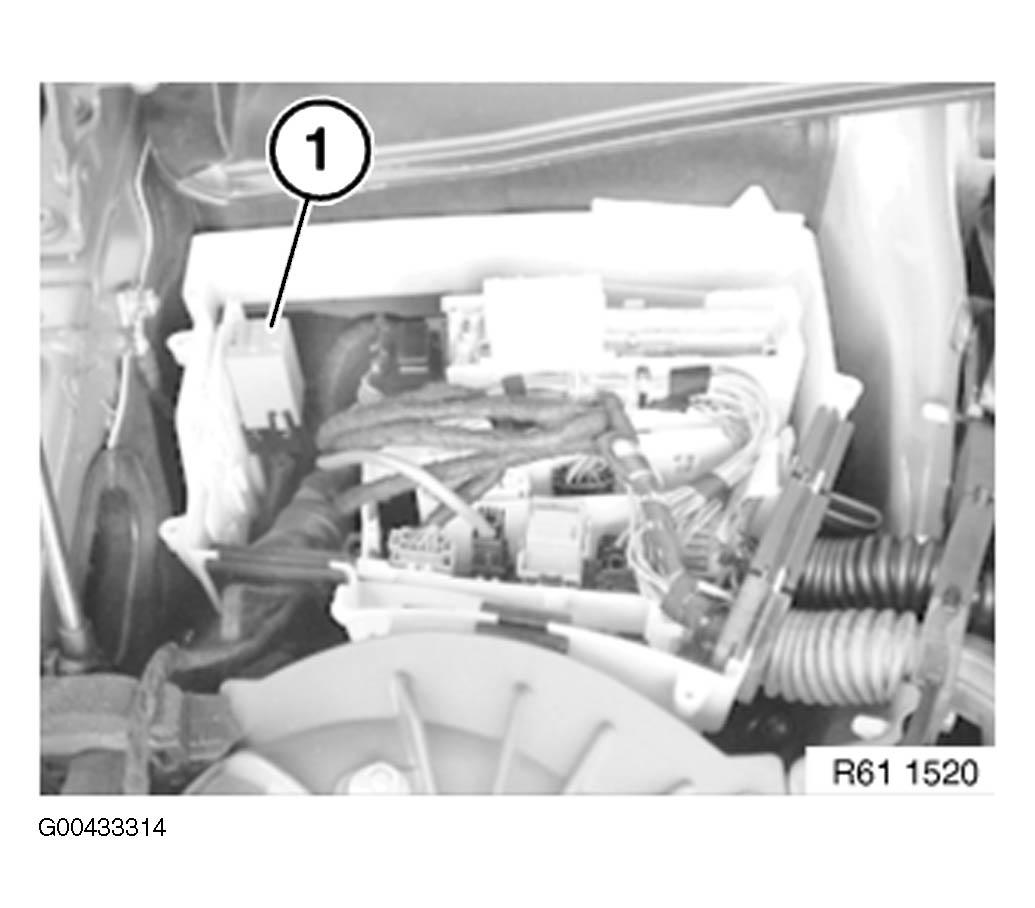

Fig 2: Locating Windscreen Wiper System Relay

Courtesy of BMW OF NORTH AMERICA, INC.
