61 36 560 Removing and installing/replacing headlight washer relay

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open glovebox.

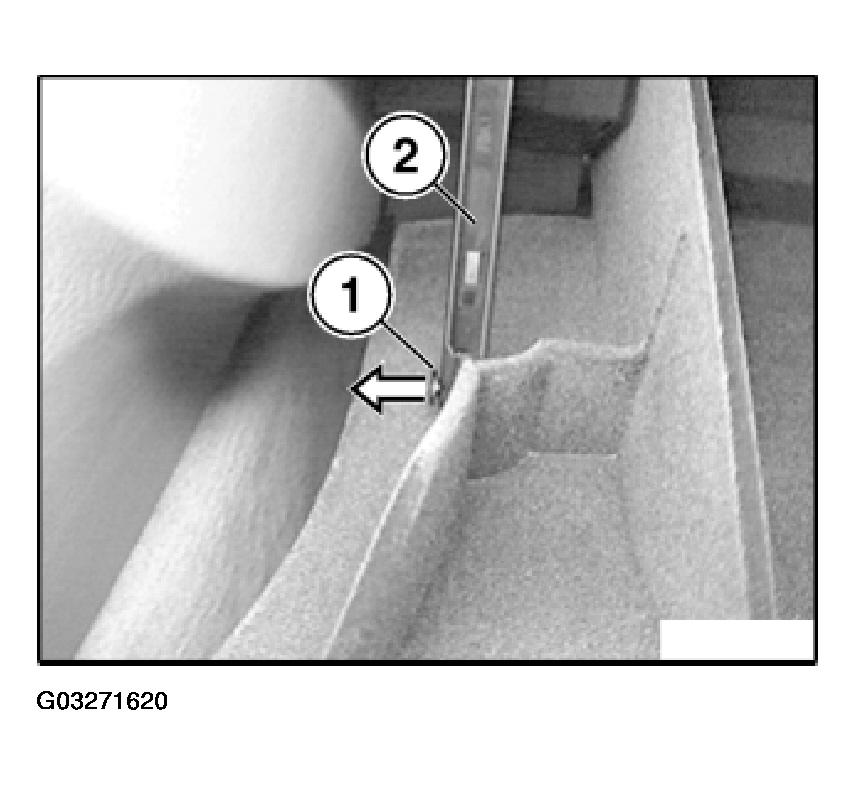

Unclip pin (1) from shock absorber (2).

Fig 1: Removing Pin From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

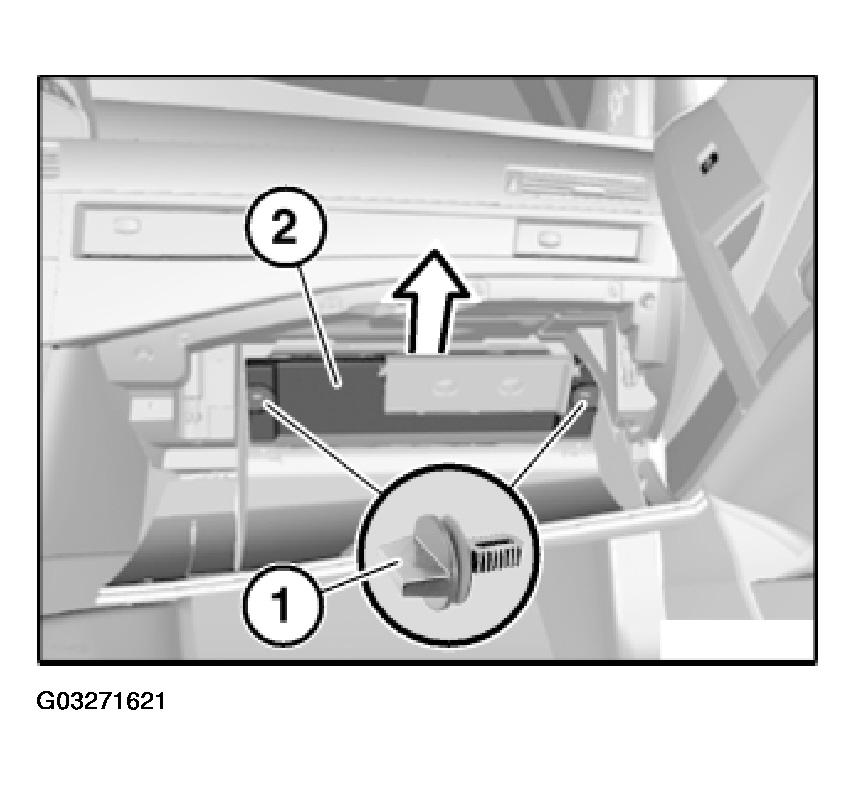

Open rotary clips (1) and remove cover (2) in direction of arrow.

Fig 2: Locating Rotary Clips

Courtesy of BMW OF NORTH AMERICA, INC.

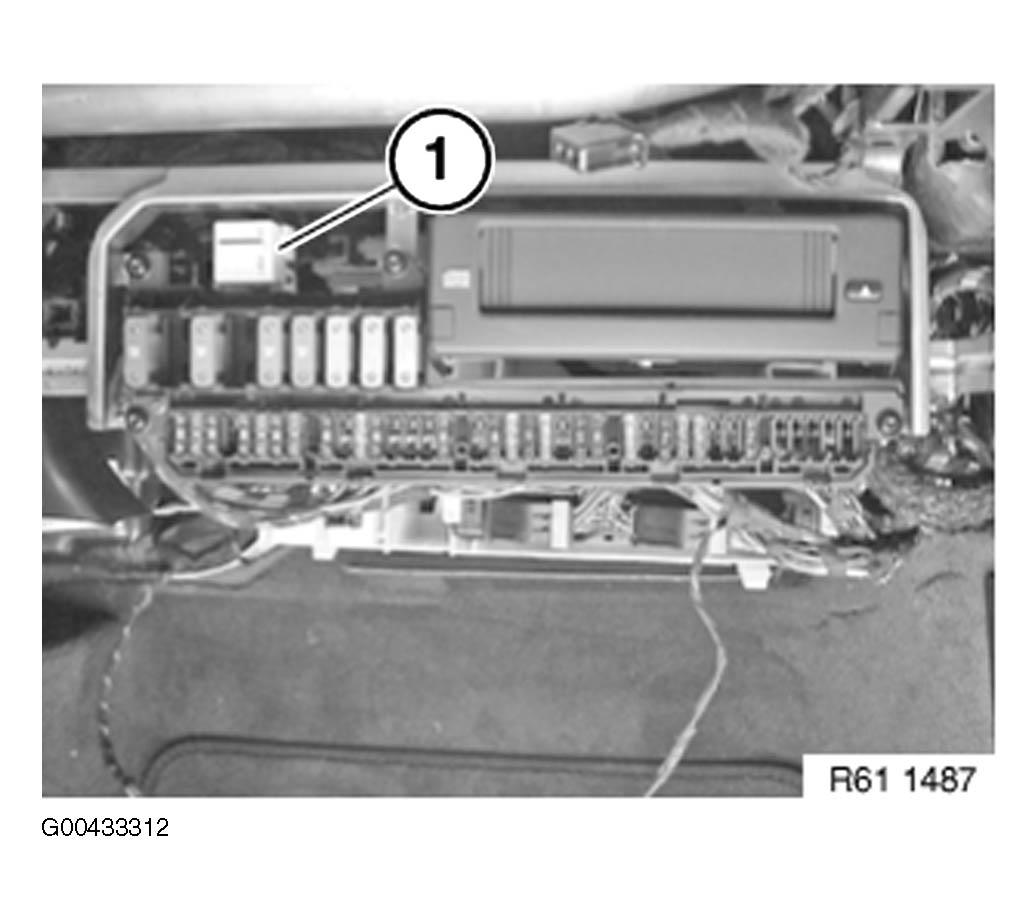

Detach relay (1).

Fig 3: Identifying Headlight Washer Relay

Courtesy of BMW OF NORTH AMERICA, INC.
