61 67 010 Removing and installing/replacing washer pump of headlight cleaning system

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

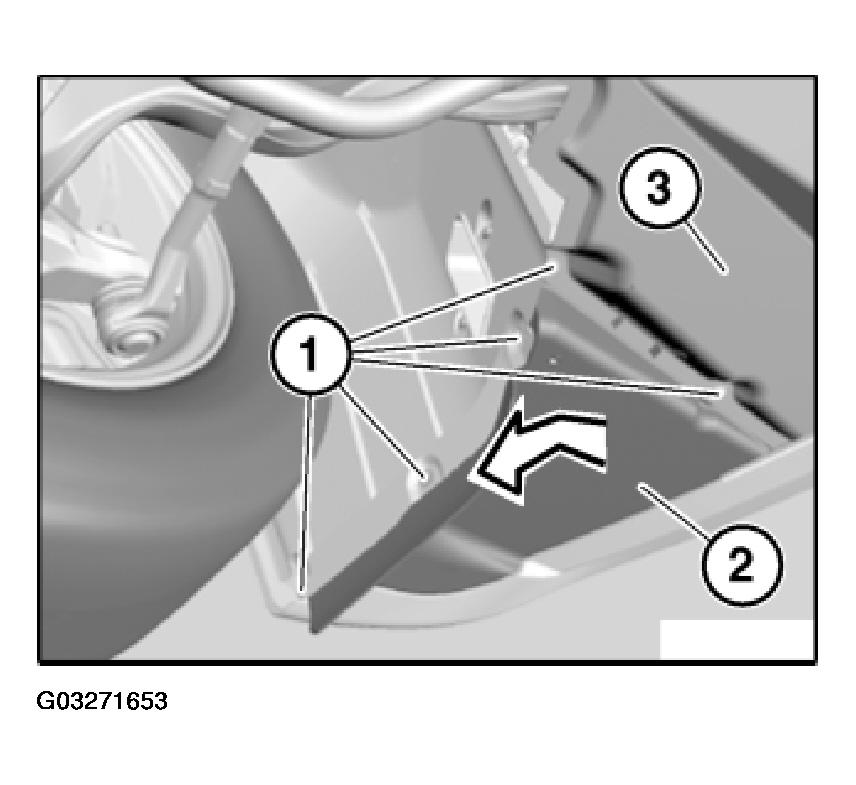

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Removing Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows front wheel removed.

Unfasten screws.

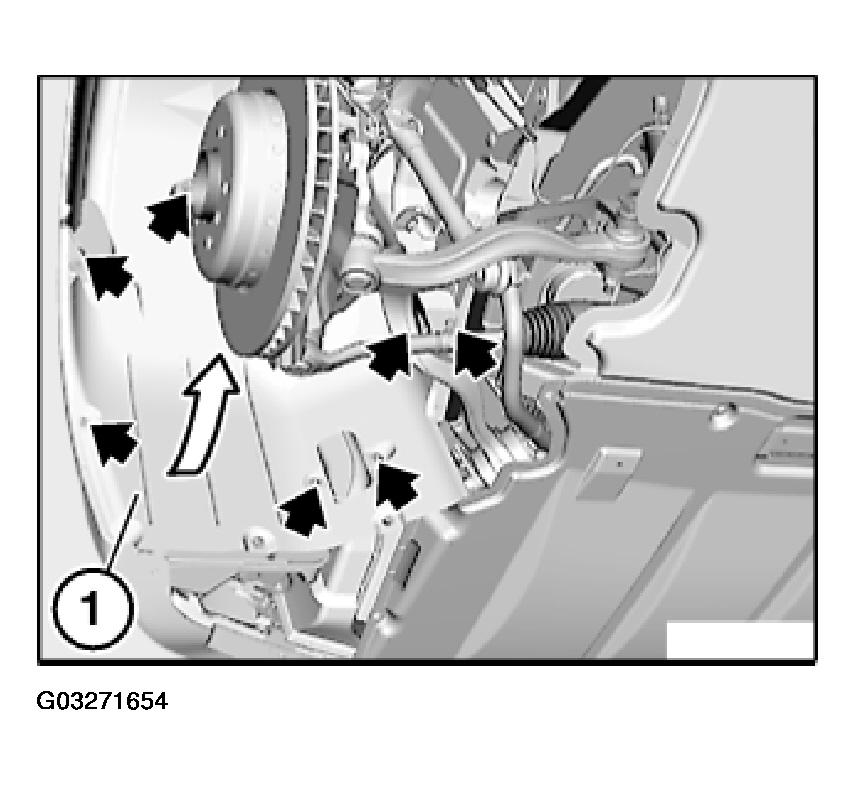

Fold back wheel arch trim (1) slightly in direction of arrow.

Fig 2: Locating Back Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Unlock hose (2) and detach from washer pump of headlight cleaning system (3).

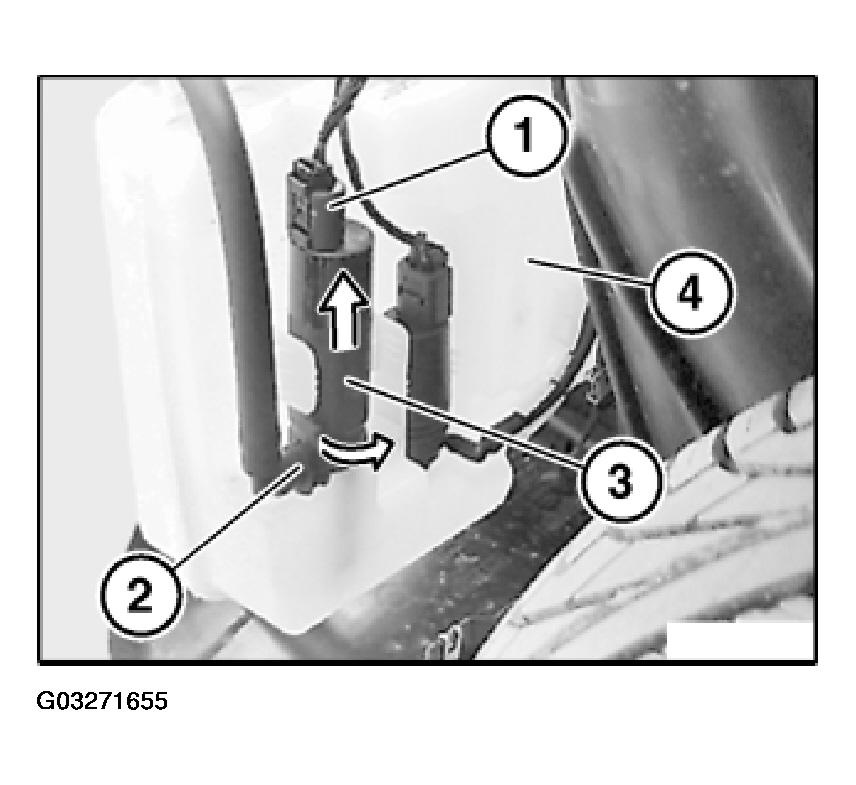

Turn washer pump of headlight cleaning system (3) in direction of arrow and pull upwards out of fluid tank for windshield washer system (4).

Fig 3: Removing Washer Pump Of Headlight Cleaning System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace strainer for washer pump of headlight cleaning system.
If necessary, coat sealing ring of washer pump for headlight cleaning system with anti-seize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windscreen washer system.
