61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 5 - SERIES (E60) .
Special Tools Required:
- 61 3 300
Necessary Preliminary Tasks:
- Remove top section of steering column casing. Refer to 32 31 004 REMOVING AND INSTALLING / REPLACING UPPER SECTION OF STEERING COLUMN TRIM .

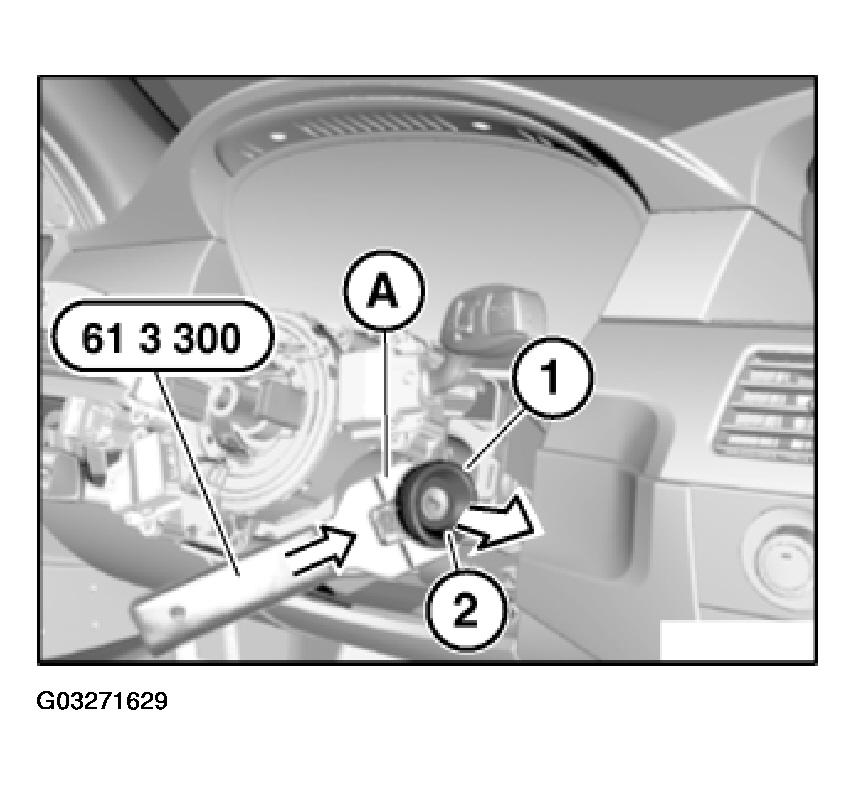

Disconnect plug connection (1).
Position special tool 61 3 300 as illustrated with flattened side (A) to ring antenna of electronic immobilizer (2).
Lever out ring antenna of electronic immobilizer (2) in direction of arrow and remove.
