54 12 117 Replacing seal for glass slide/tilt sunroof lid
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Follow repair instructions for bonded seals on slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .
- Open glass lid completely.

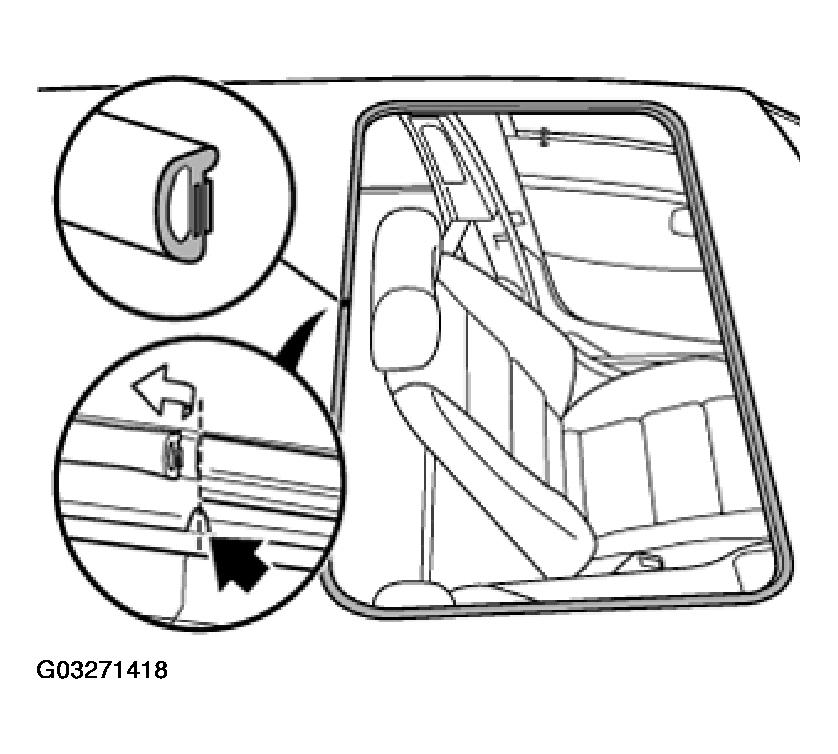

Begin removal at contact edge (rear center):
- Peel off rubber seal.
- Clean bonded area.
Installation:
Also begin at specified point of contact edge for installation:
- Stick on rubber seal in sections.
- Establish seal joint.
- Press on seal
