52 26 311 Removing and installing/replacing lock for left or right rear seat backrest (through-loading system)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock rear seat backrest and fold down.

NOTE: If the rear seat backrest cannot be unlocked, carry out emergency opening. Refer to 52 26 ... EMERGENCY ACTUATOR FOR REAR SEAT BACKREST .

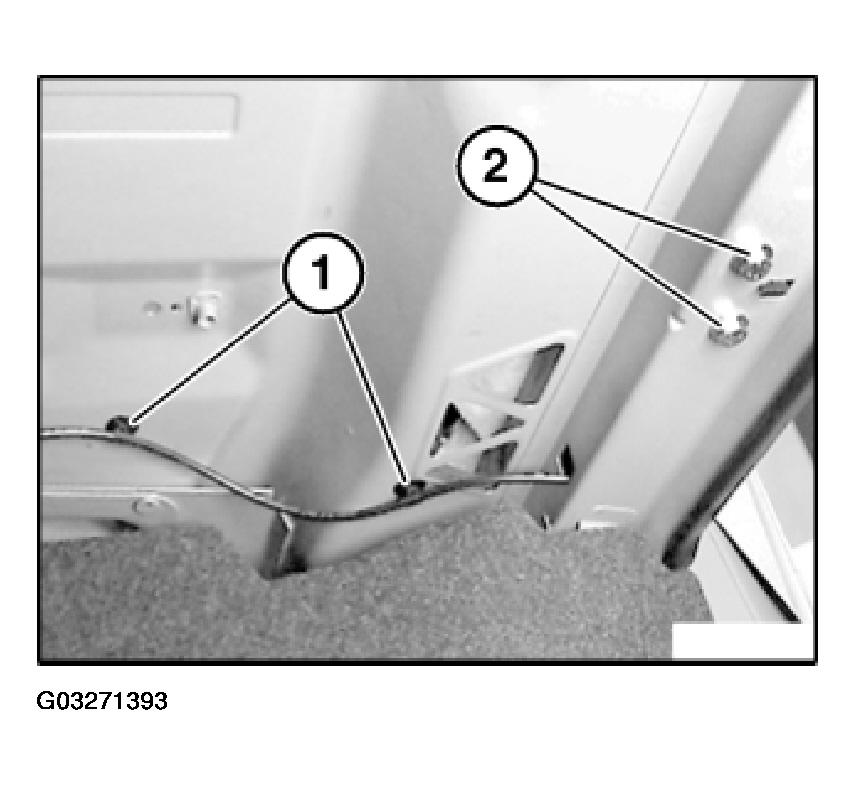

Unclip Bowden cable from fixture (1).

Loosen screws (2).

Fig 1: Locating Bowden Cable In Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

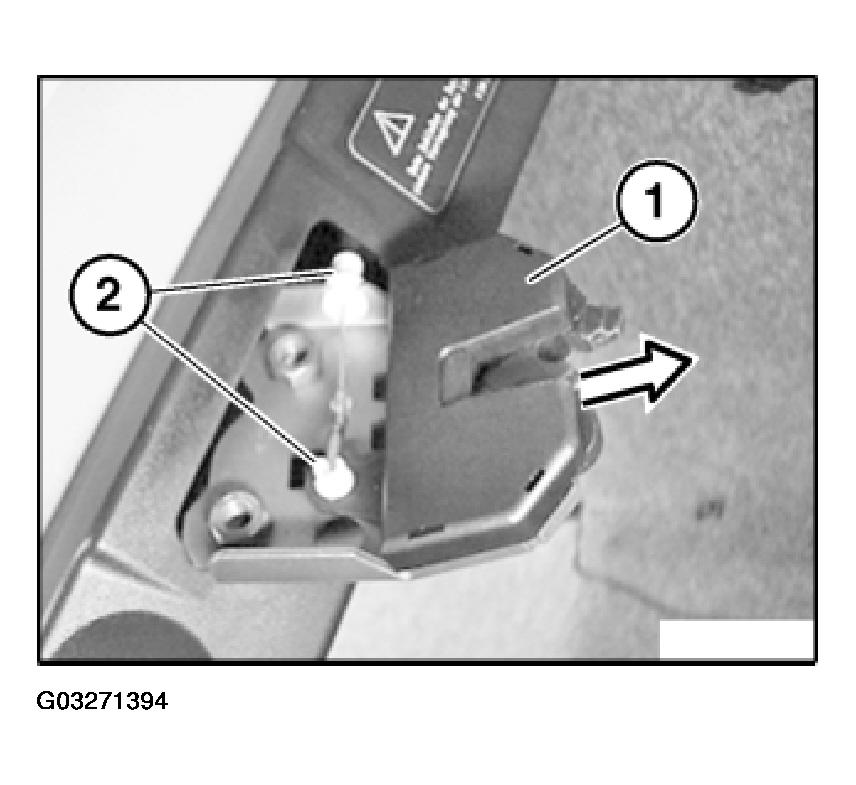

Feed lock (1) out of installation opening slightly and unclip Bowden cable (2).

Remove lock completely from installation opening.

Installation:

Catches (2) on lock must not be damaged.

Bowden cable must be correctly anchored in catches (2).

Fig 2: Removing Rear Seat Backrest Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

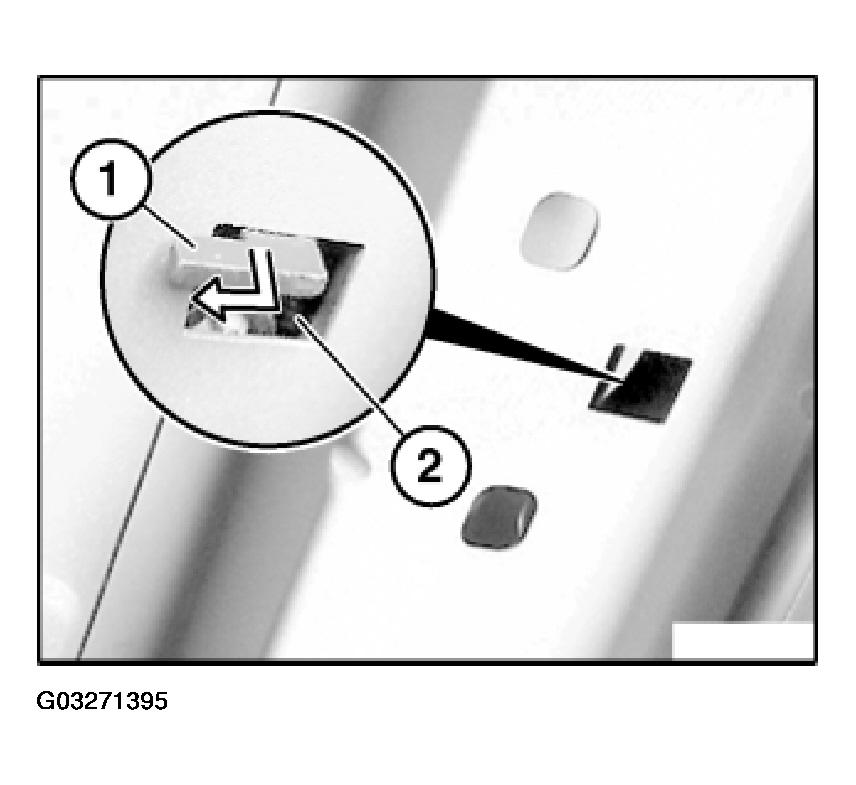

Slide guide lug (1) of lock into opening (2).

Fig 3: Identifying Guide Lug Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment of lock:

Slacken screws.
Firmly push engaged backrest back.
Tighten down screws.

Tightening torque, refer to 52 26 10AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .
