52 26 303 Removing and installing/replacing actuator for left or right rear seat backrest (through-loading system)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Unclip Bowden cable (1).

Loosen screws (2).

Unlock catch (3) to center of car and at same time unclip actuator towards bottom (4). If necessary, insert special tool 00 9 317 between actuator and body for levering out.

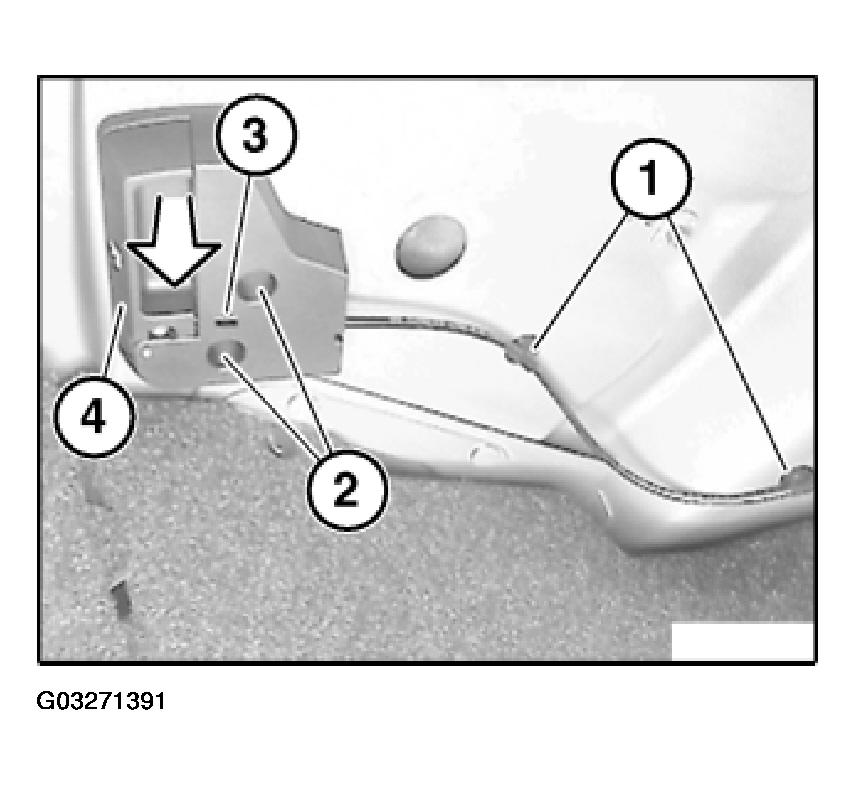

Fig 1: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and (2) of actuator (3) must not be damaged.

Bowden cable (4) must be correctly engaged in actuator (3).

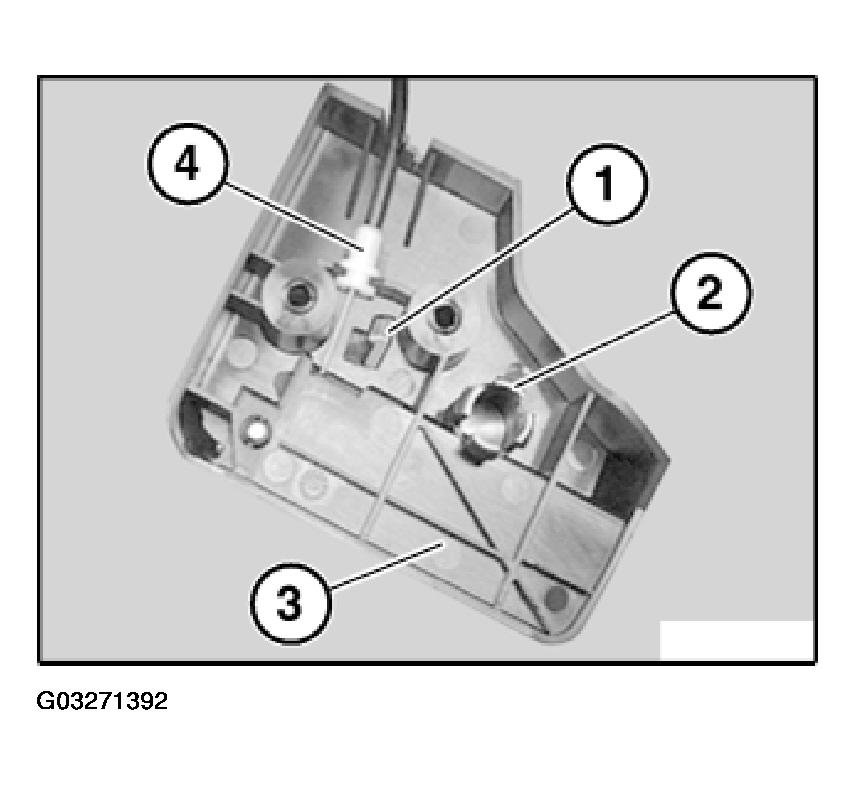

Fig 2: Identifying Bowden Cable, Actuator And Catch
