52 26 030 Removing and installing/replacing armrest for rear seat backrest (through-loading system)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

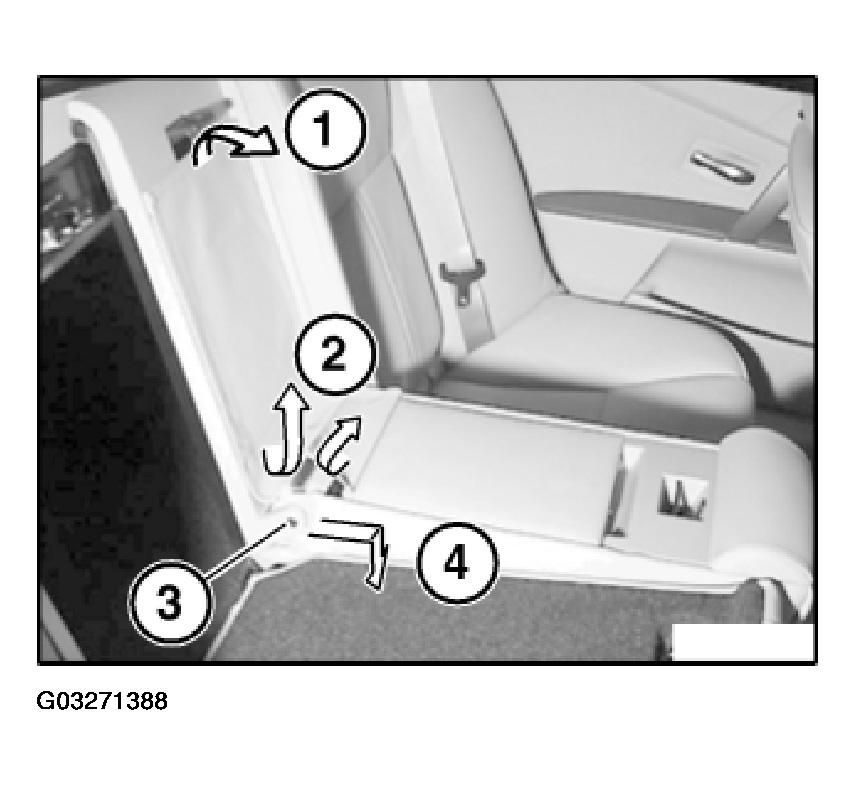

Fold down right backrest.
Feed out top cover (1) or detach from armrest (2).
Release screw (3).
Tightening torque, refer to 52 26 4AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .
Feed armrest first forwards and then to right out of left backrest mount (4).
IMPORTANT:
Cover must not be trapped during installation.
