51 16 204 Removing and installing/replacing cup holder in armrest for rear seat backrest
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 64 1 020
Necessary Preliminary Tasks:
- Fold center armrest forwards.

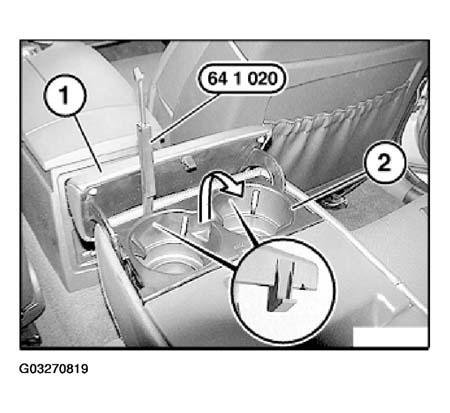

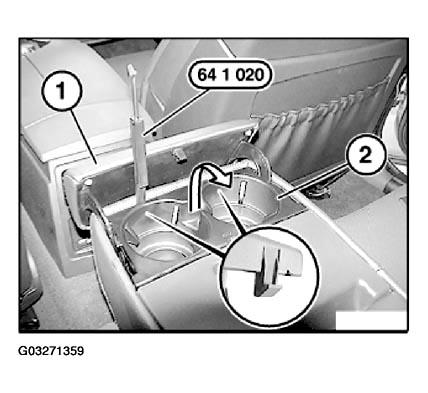

Open cover (1).
Lever out cup holder (2) in direction of arrow.
If necessary, unlock retaining lugs with special tool 64 1 020.
