52 24 037 Removing and installing/replacing seat frame
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 00 9 317
Necessary Preliminary Tasks:
- Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .
Removing seat frame:

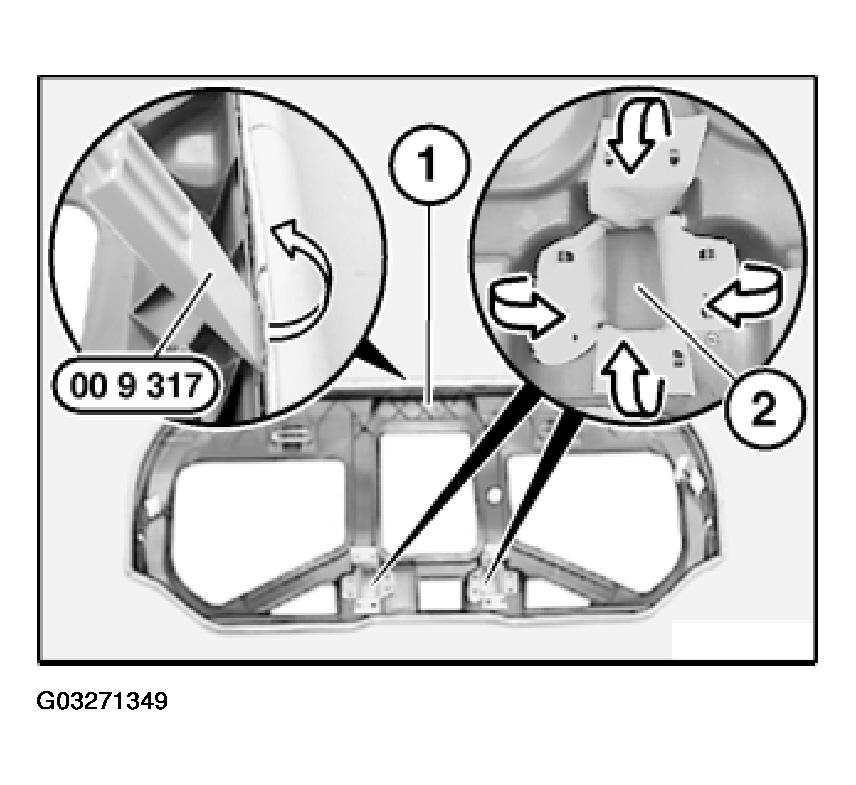

- Feed cover welt (1) all round with special tool 00 9 317 out of retaining lugs (partly marked through recesses).
- Detach cover lugs in areas (2) from locking pins.
- Carefully pull cover back to top side and pull Velcro-type fastener off frame.
- Remove seat frame.
Installation:
- Align and press on Velcro-type fastener.
- Lay cable in opening of padding and through bore in frame.
- Feed welt back in with special tool 00 9 317.
