52 13 405 Replacing backrest cover for left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS - 5-SERIES (E60) and MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317
52 0 050

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) .
Remove rear panel on front seat backrest. Refer to 52 13 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/SEMI-ELECTRIC) .

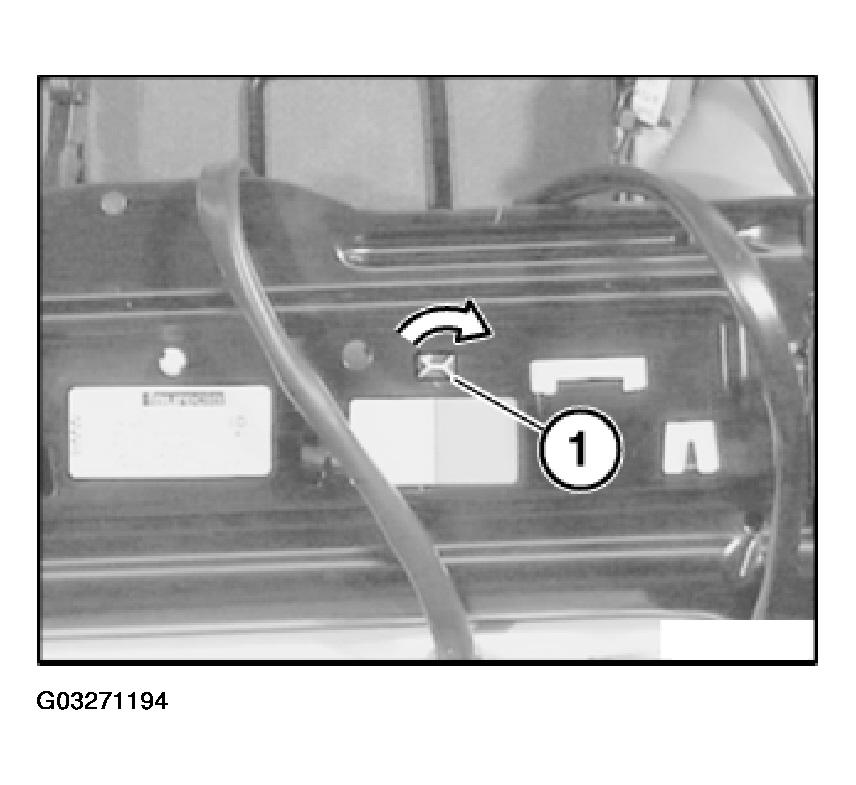

Detach plug connection (1) by twisting from backrest frame.

Disconnect plug-in connection.

Fig 1: Identifying Plug Connection In Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

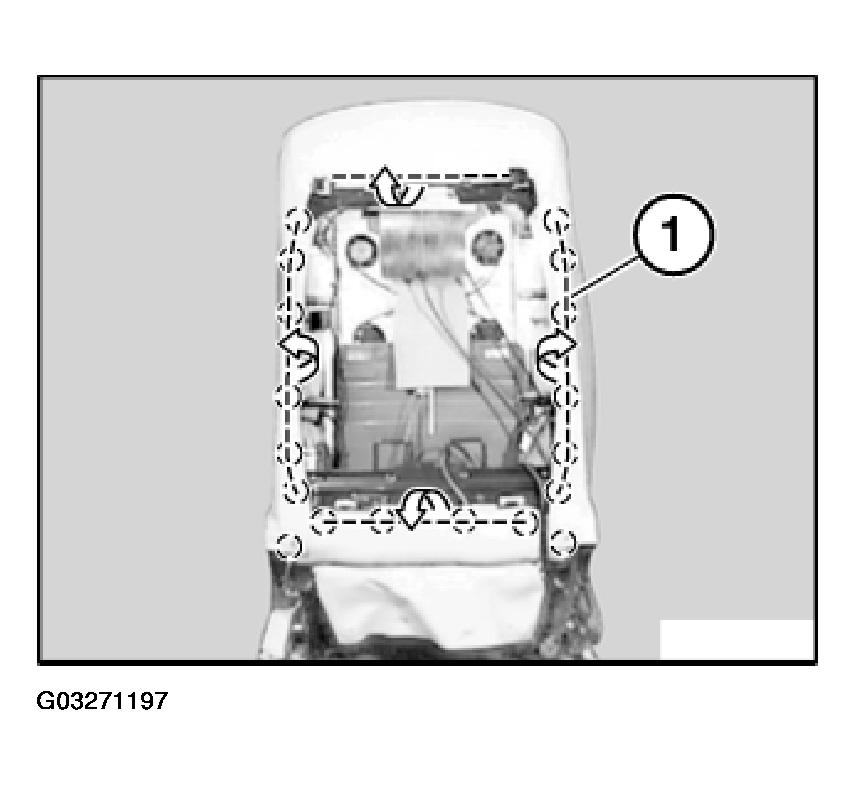

Release all retainers (1) on cover.

Remove cover.

Fig 2: Locating Retainers On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

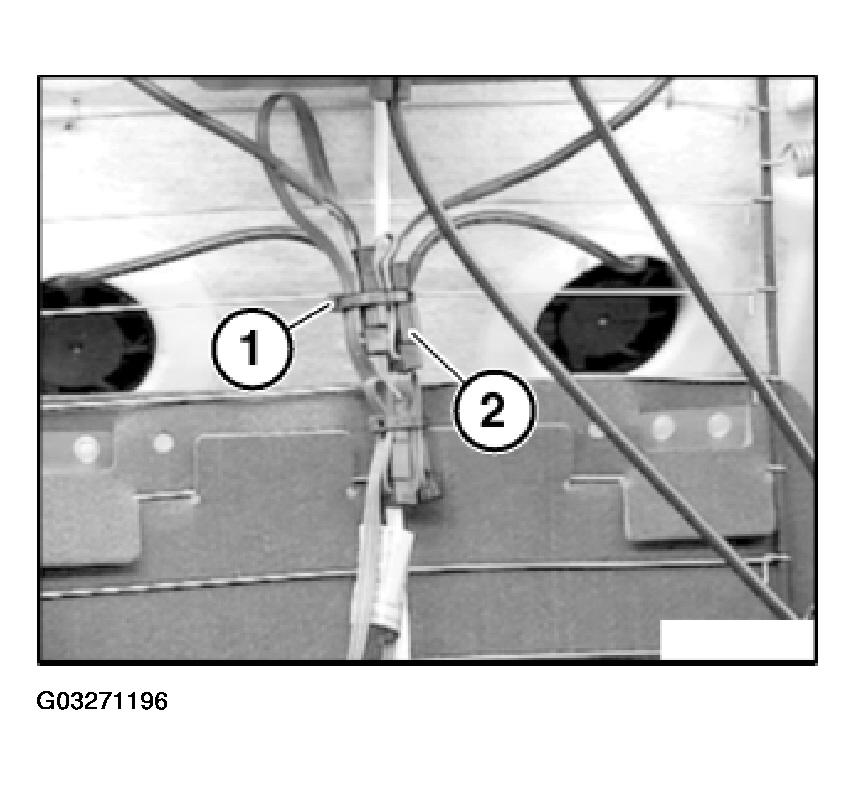

For A/C optional extra only:

Disconnect cable strap (1) on wiring harness for fan.

Disconnect plug connections (2).

Fig 3: View Of Cable Strap On Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

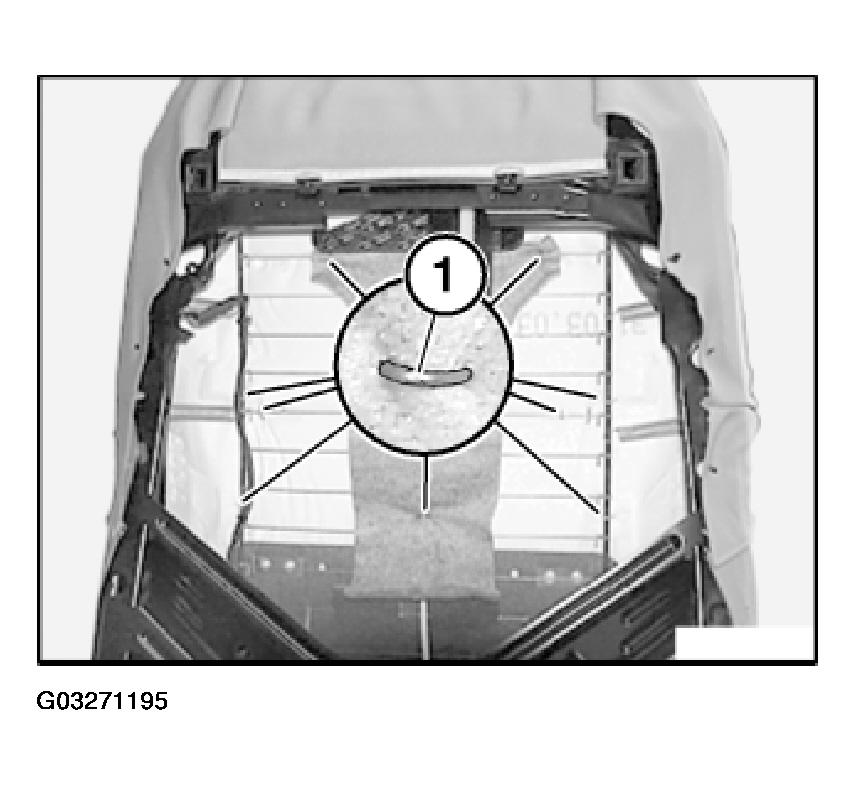

Unhook backrest cover at retaining points in area (1).

Fig 4: Identifying Backrest Cover Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

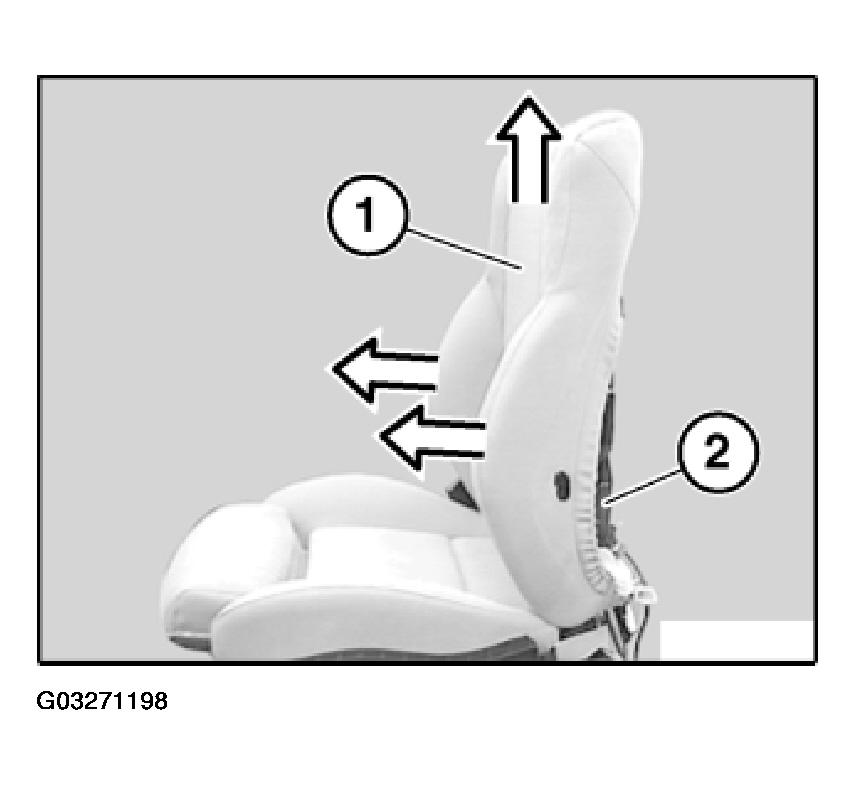

Unhook backrest cover (1) at bottom and sides towards front.

Pull off backrest cover (1) with padding towards top from backrest frame (2).

Fig 5: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

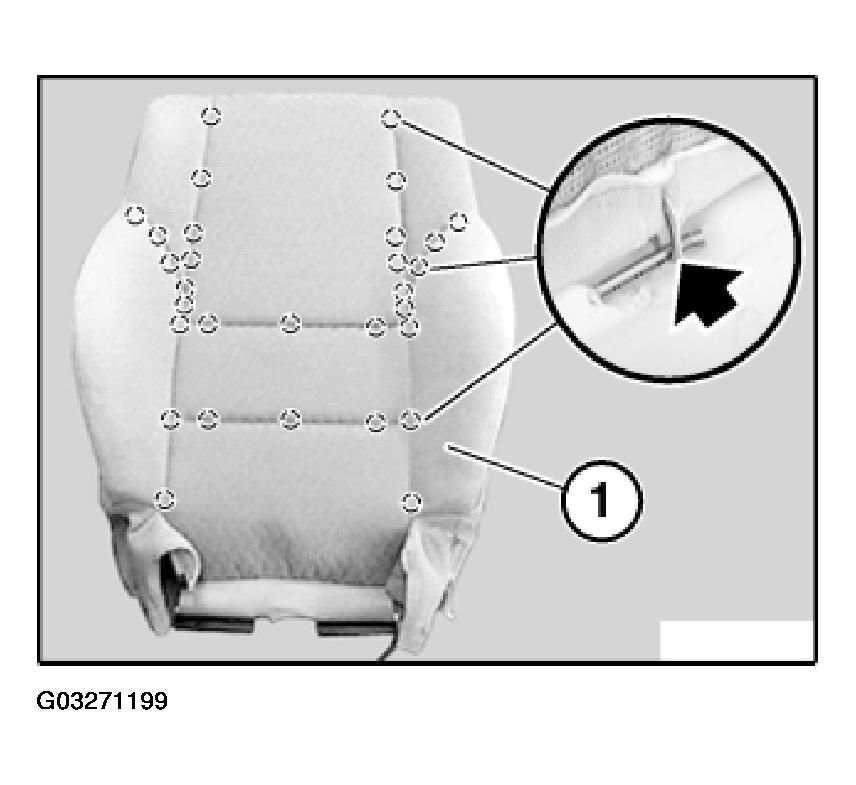

Release all retainers.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 6: Removing Backrest Cover From Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

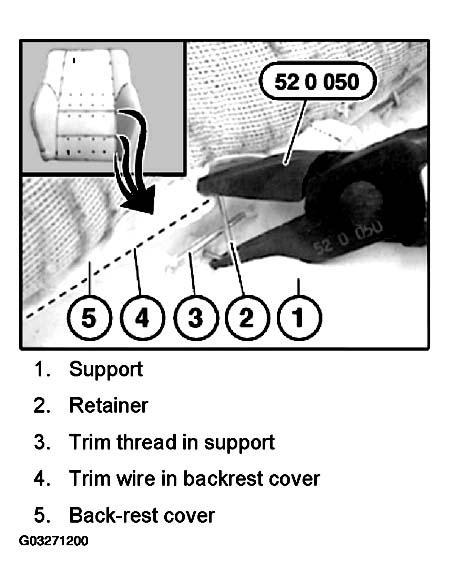

Bend new retainer (2) closed with pliers 52 0 050.

Fig 7: Installing Retainer Using Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

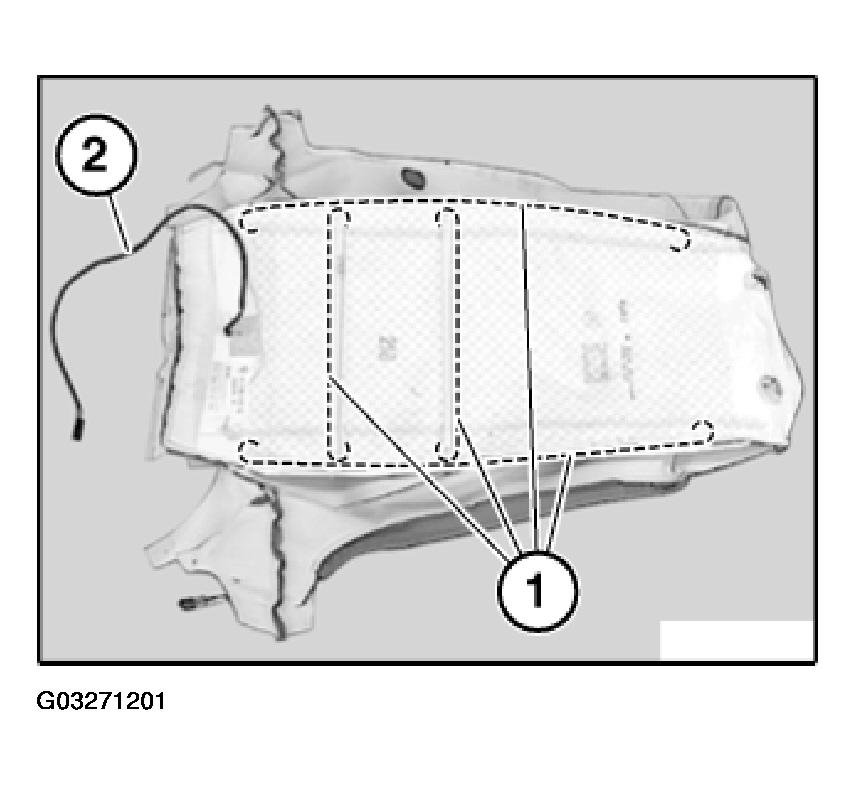

Remove trim threads (1) from backrest cover.

(2) Seat heater cable

Installation:

Slide trim threads (1) into new backrest cover; if necessary, cut new part.

Fig 8: View Of Trim Threads In Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

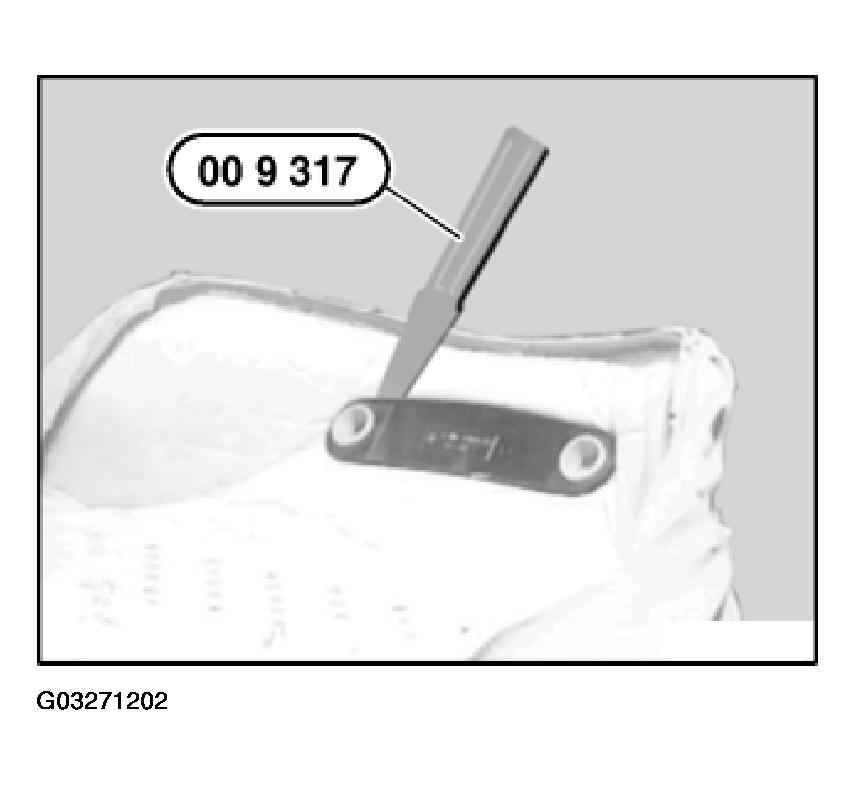

Lever out locking strip of head restraint guide with special tool 00 9 317.

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Removing Head Restraint Guide Locking Strip

Courtesy of BMW OF NORTH AMERICA, INC.
