52 14 420 Replacing padding for left or right front seat backrest (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This task is identical to replacing backrest cover. Refer to 52 13 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) .

Seat with air conditioning:

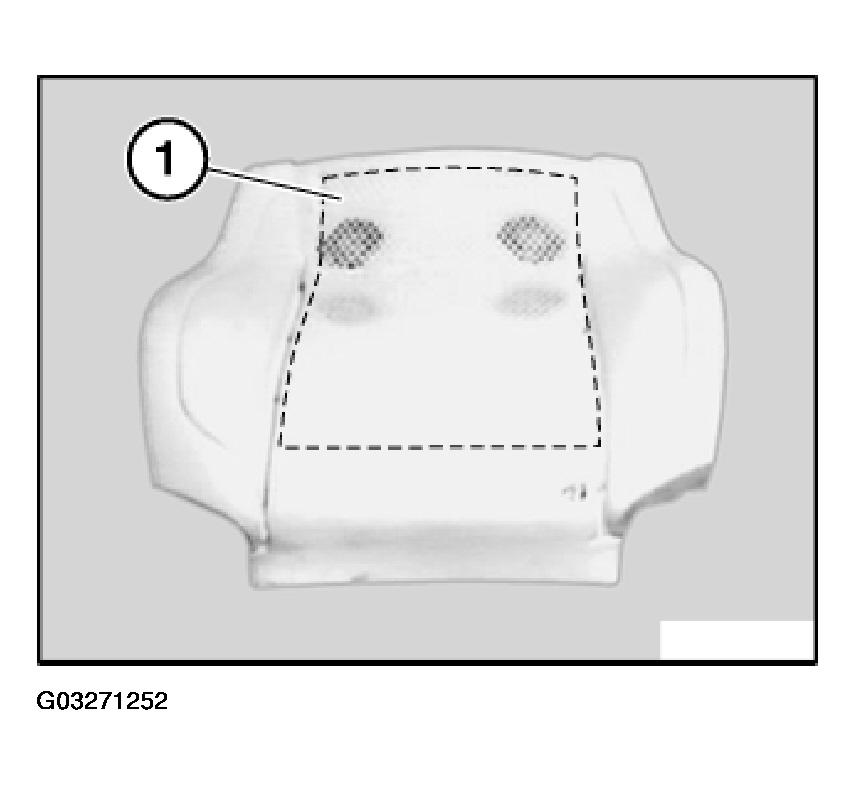

Remove dividing net (1) towards top.

Fig 1: Removing Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

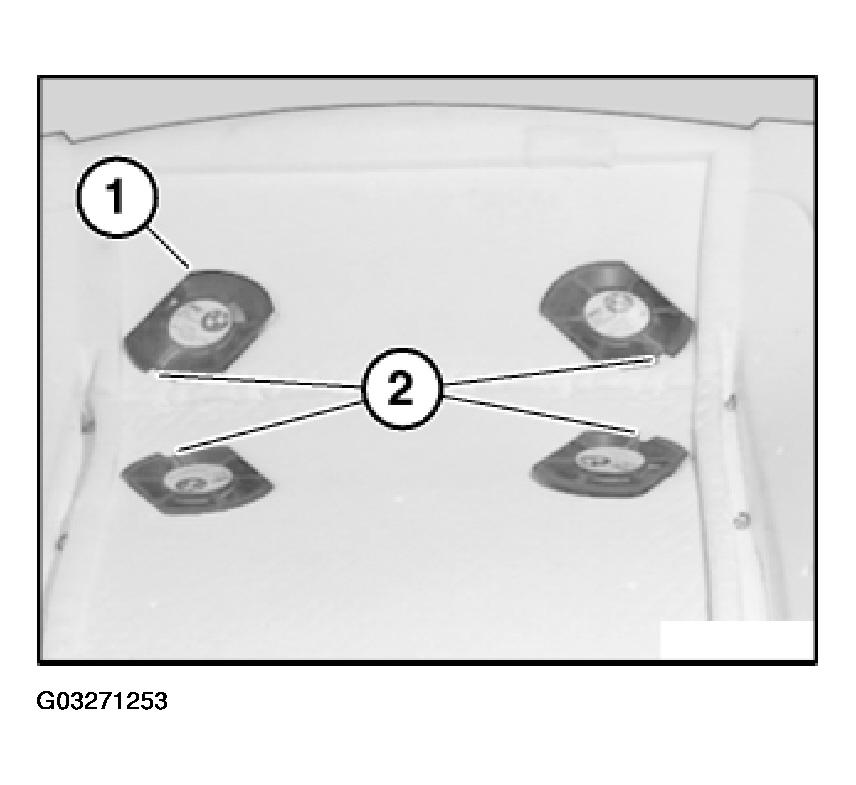

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

Fig 2: Aligning Fan Cables

Courtesy of BMW OF NORTH AMERICA, INC.
