52 14 060 Removing and installing/replacing valve housing for left or right front lumbar support (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) .

Release retaining screw (1).

Disconnect electrical plug connection.

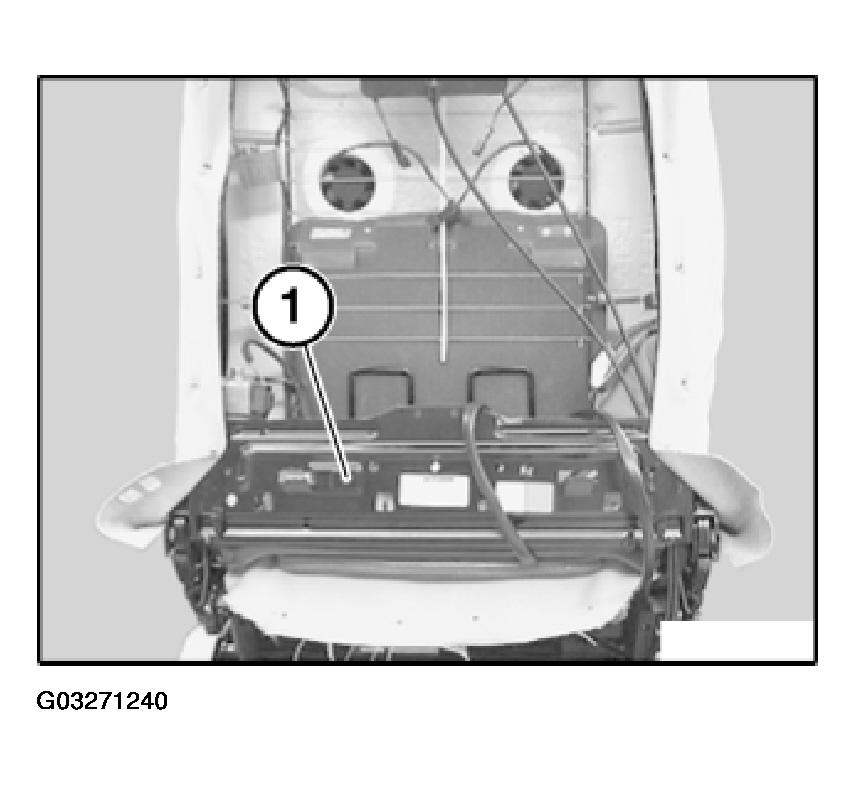

Fig 1: Locating Retaining Screw Of Valve Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect air hoses (1) and (2).

Installation:

Make sure air hoses (2) are correctly connected to valve block (color coding: red/blue).

Housing on valve block must not be unclipped (leakage). If necessary, clip housing together.

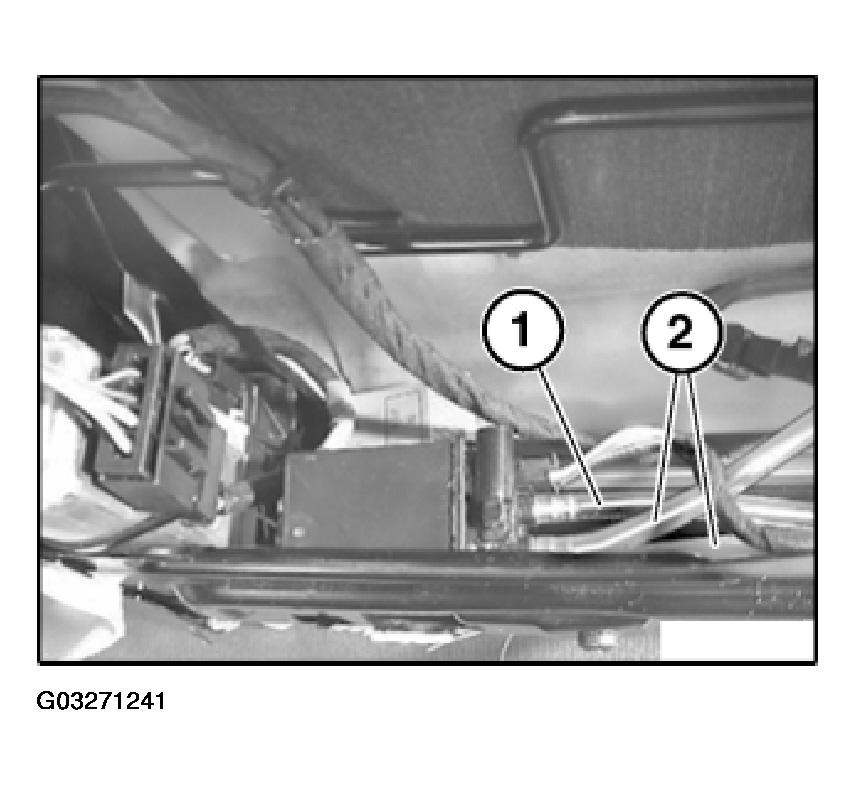

Fig 2: View Of Air Hoses
