52 14 ... Replacing left flex shaft for longitudinal seat adjustment drive

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical plug connection.

Lift drive (1) and flex shaft (3) out of guide (2) in direction of arrow.

Detach flex shaft (3) (plug connection).

Fig 1: View Of Drive And Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove drive (4).

Detach flex shaft (3) with holder (2).

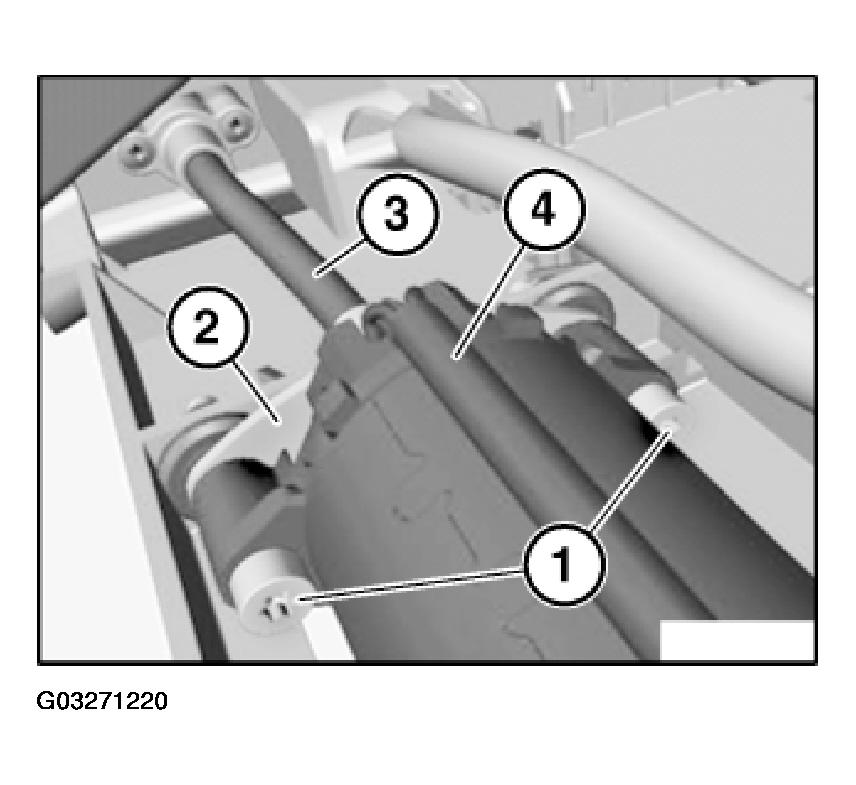

Fig 2: Locating Retaining Screws For Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
