52 14 ... Removing and installing outer upper rail trim with electric anchor fitting tensioner (from 04/2004)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Driver's seat only:
NOTE:
Version with anchor fitting tensioner from 04/2004.

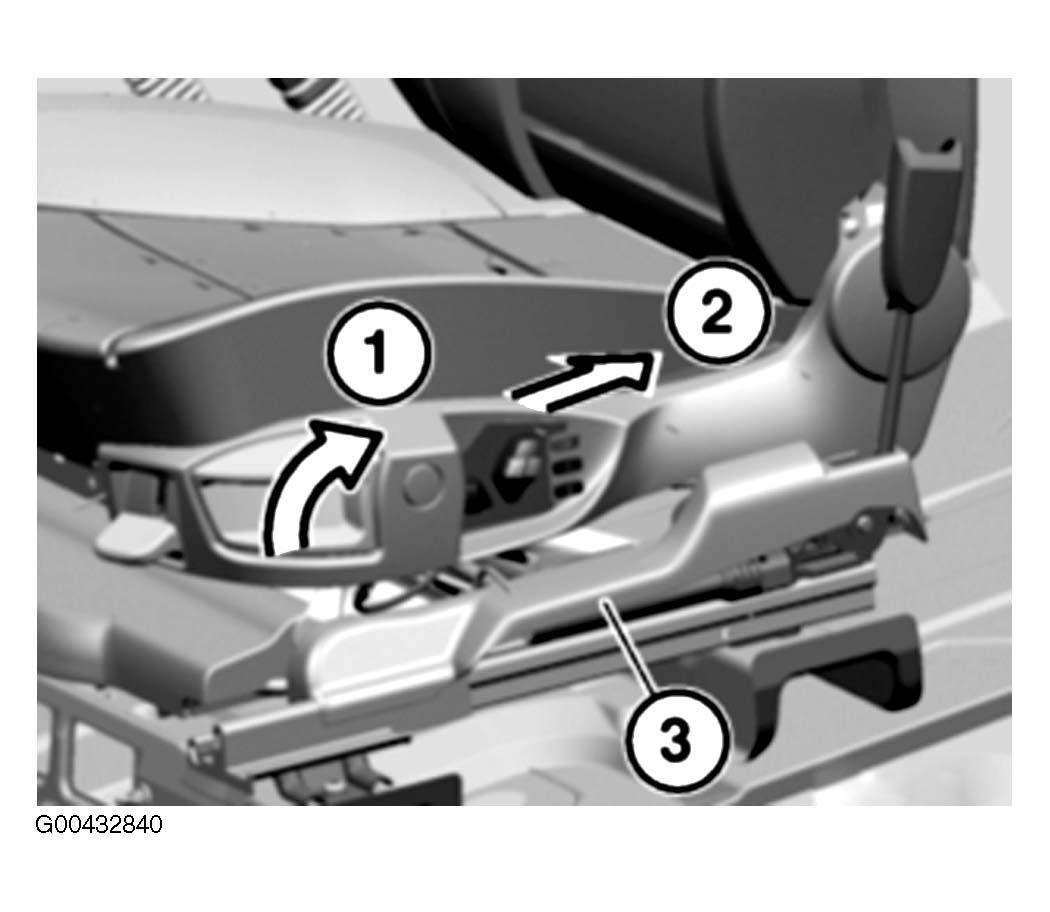

Lever trim (3) out of seat mechanism:
- Upwards,
- Slide towards rear,
And feed out of anchor fitting tensioner.
Installation:
Secure plug connection with felt strip against unlocking.
Lock on plug connection to anchor fitting tensioner can be unlocked when trim is fitted.
