52 17 420 Replacing padding for left or right front seat backrest (comfort)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This task is identical to replacing backrest cover. Refer to 52 17 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT)  .

Remove dividing net (1) towards top.

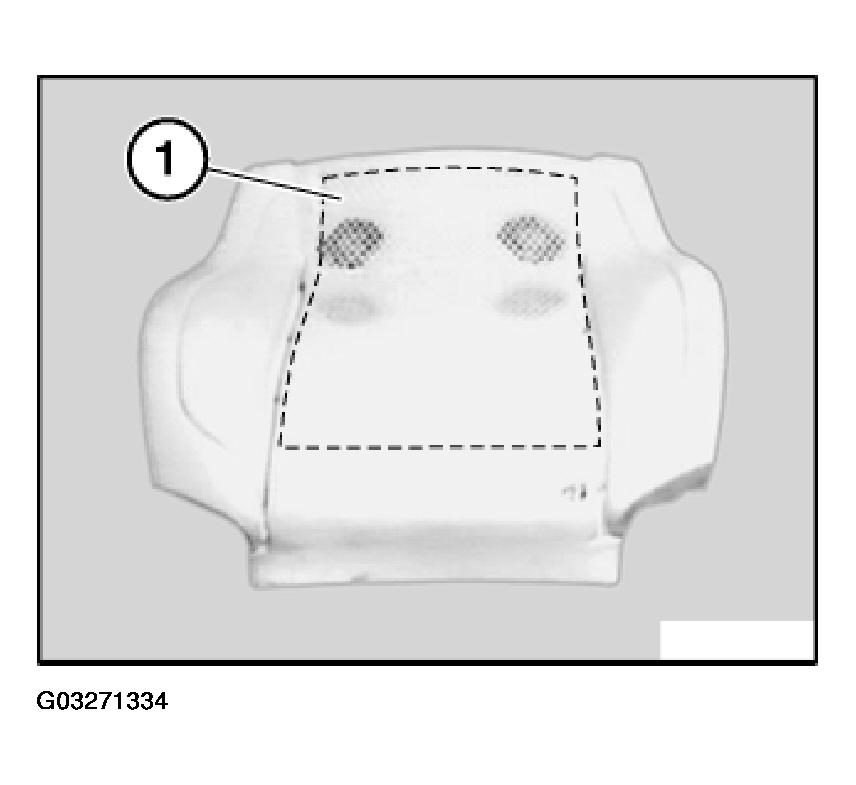

Fig 1: Removing Dividing Net
G03271334Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

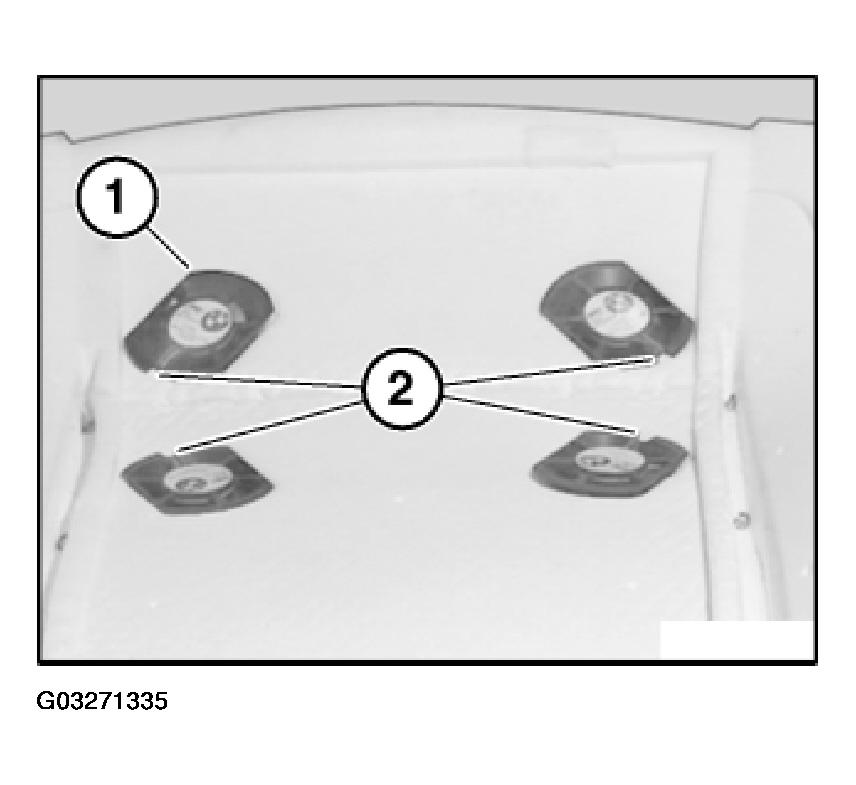

Fig 2: Aligning Fan Cables
G03271335Courtesy of BMW OF NORTH AMERICA, INC.
