52 17 390 Removing and installing/replacing front left or right head restraint (comfort)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

Pull out forcefully.

Installation:

Position adjustment drive briefly before upper stop.

Press in head restraint until it clicks audibly into place (on right and left).

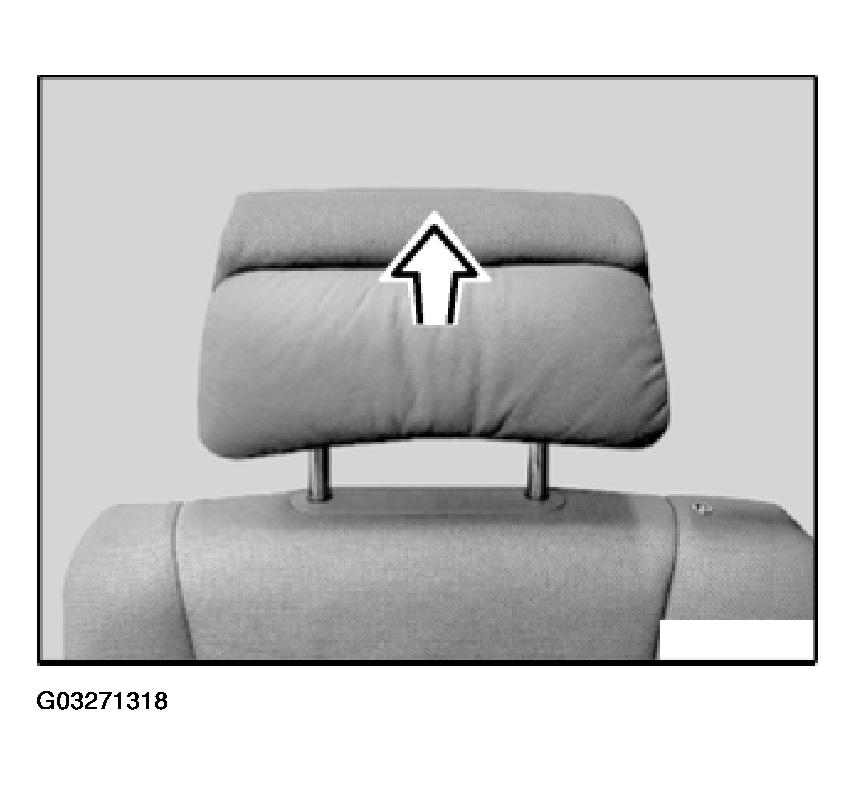

Fig 1: Removing Headrest

Courtesy of BMW OF NORTH AMERICA, INC.
