52 17 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
Remove thigh support. Refer to 52 17 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT

Move front thigh support forwards as far as possible.

Release screws (1).

Detach compressor (2) complete with holder (3) in direction of arrow.

Installation:

Attach holder (3) in area (5).

Disconnect plug connection (4) on drive.

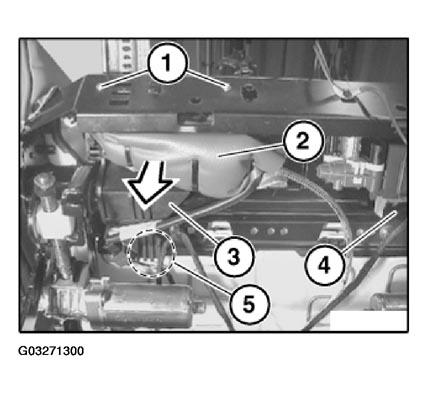

Fig 1: Locating Compressor Holder Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in areas (1).

Feed out adjusting unit (2) complete with drive in direction of arrow and remove.

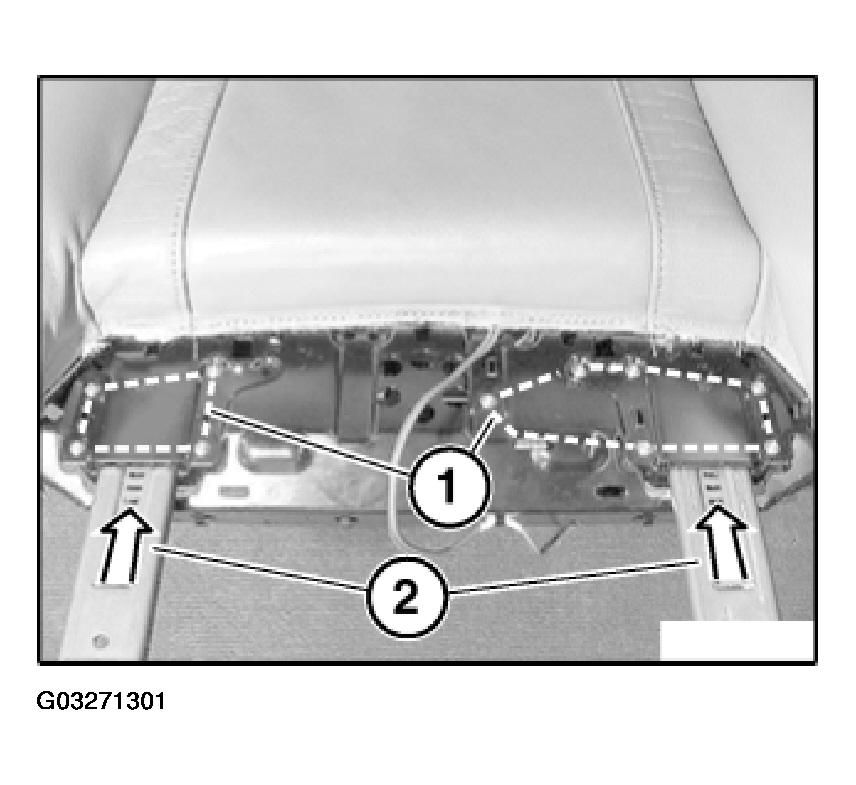

Fig 2: Identifying Adjusting Unit Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
