51 24 326 Removing and installing / replacing left tension spring with damper for rear lid

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove right luggage compartment wheel arch trim. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

WARNING: Support rear lid in fully opened position with suitable apparatus. Risk of injury.

Pull off retainer (1) upwards.

Pull off tension spring with damper (2) in inwards direction.

WARNING: The rear lid will drop down if it is not supported.

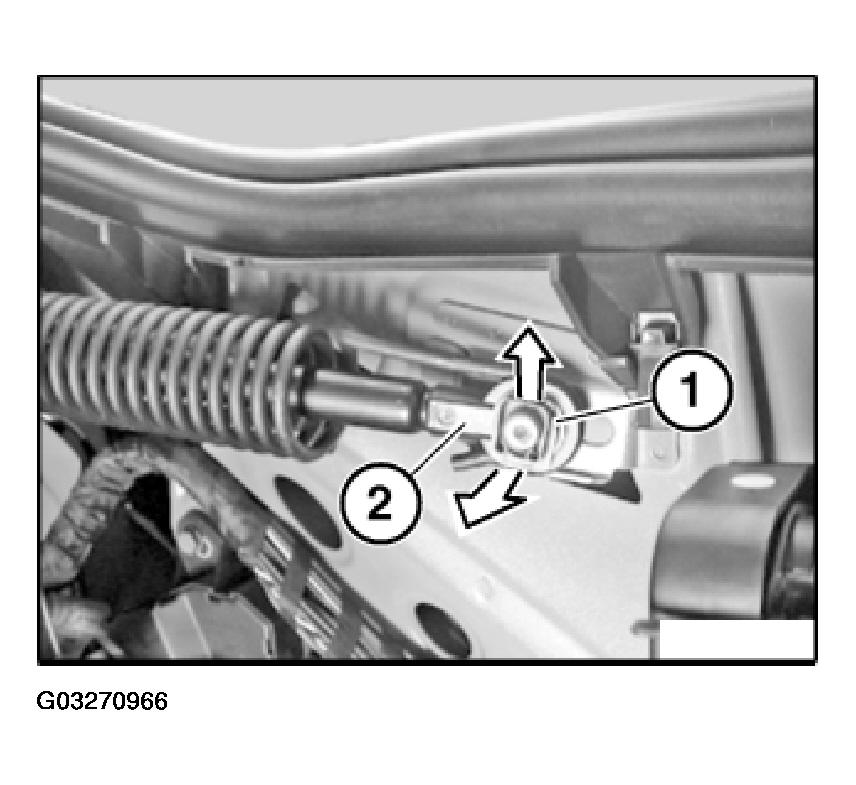

Fig 1: Identifying Damper Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

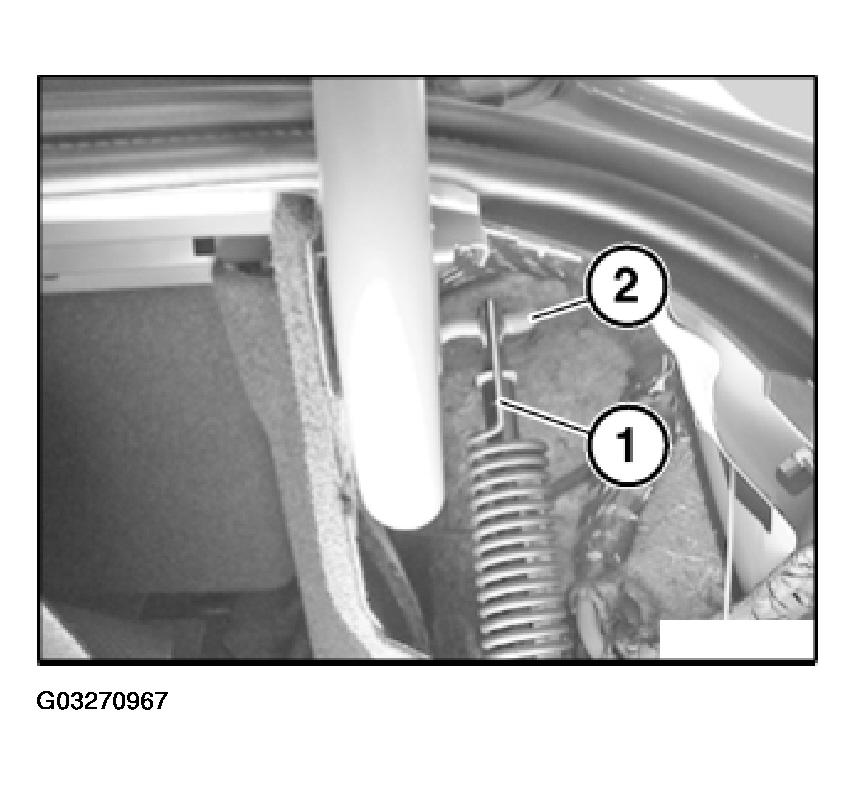

Unhook tension spring with damper (1) from rear lid hinge (2).

Fig 2: View Of Tension Spring On Rear Lid Hinge Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

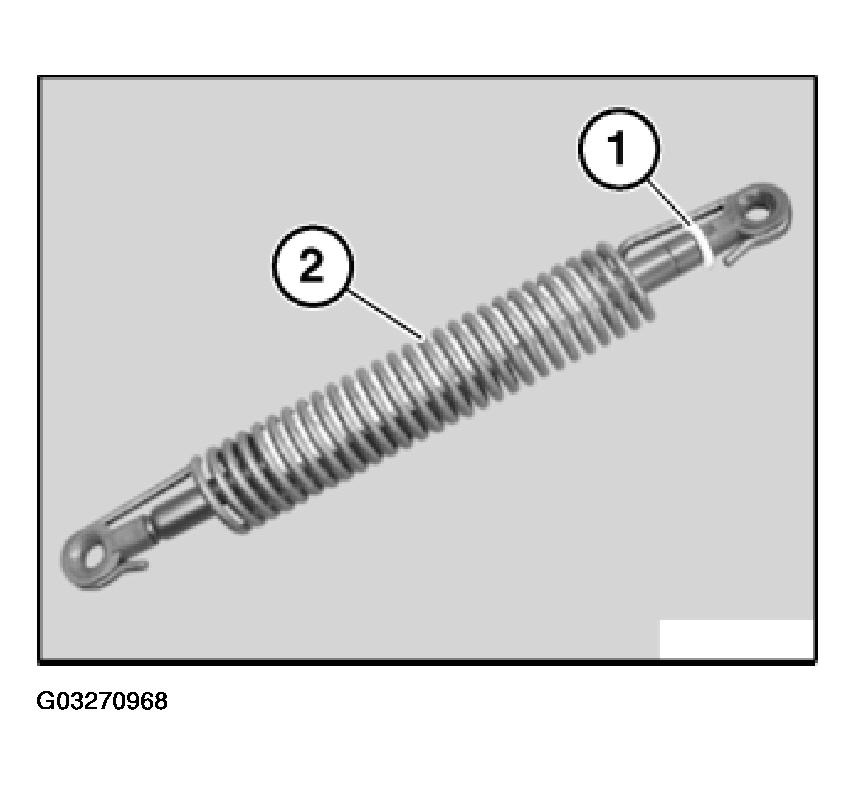

Observe installation direction: hinge end is identified by means of plastic sleeve (1).

Following parts on the tension spring with damper must not be damaged or missing:

Plastic sleeve.
Foam inlay in tension spring.

Fig 3: Identifying Tension Spring With Damper
Courtesy of BMW OF NORTH AMERICA, INC.

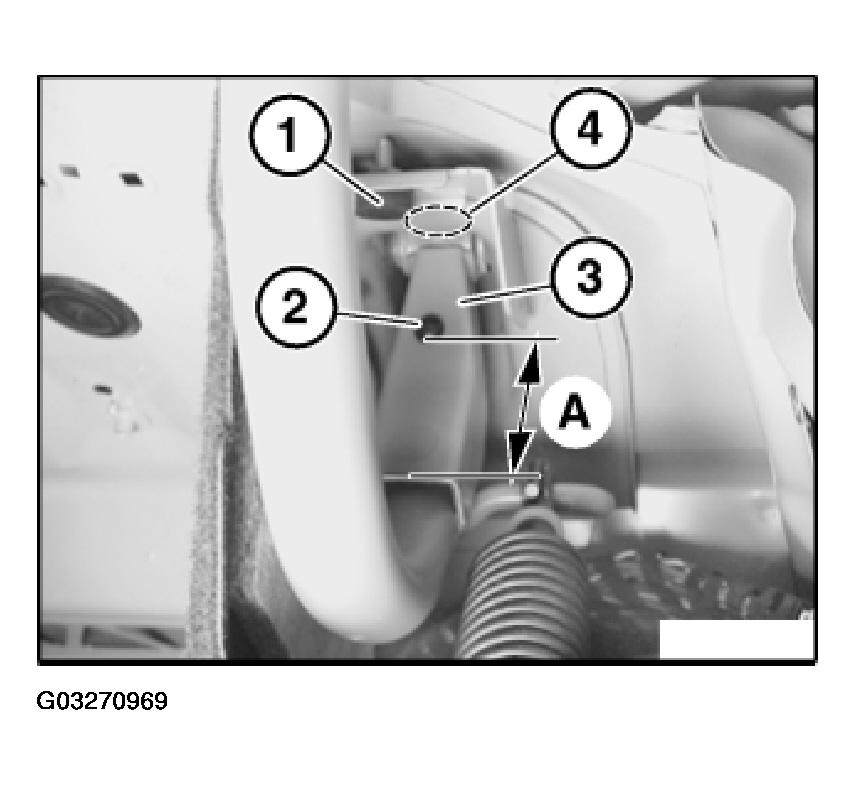

IMPORTANT: Semicircular rubber buffer (2) (from window repair kit) must be fitted to rear lid hinge (3) without end stop (1).

Stick semicircular rubber buffer (2) at spacing (A) on rear lid hinge (3).

A = 65 mm.

Semicircular rubber buffer (2) must touch rear lid hinge (3) in area (4) with rear lid open.

Fig 4: Locating Rubber Buffer On Rear Lid Hinge

Courtesy of BMW OF NORTH AMERICA, INC.
