51 24 145 Removing and installing/replacing button for rear lid actuation

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 323

Necessary Preliminary Tasks:

Remove panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

If necessary, disconnect plug connection in rear lid.

Move special tool 00 9 323 under front edge of button (1) and lever out button (1).

Pull button (1) out of rear lid (2).

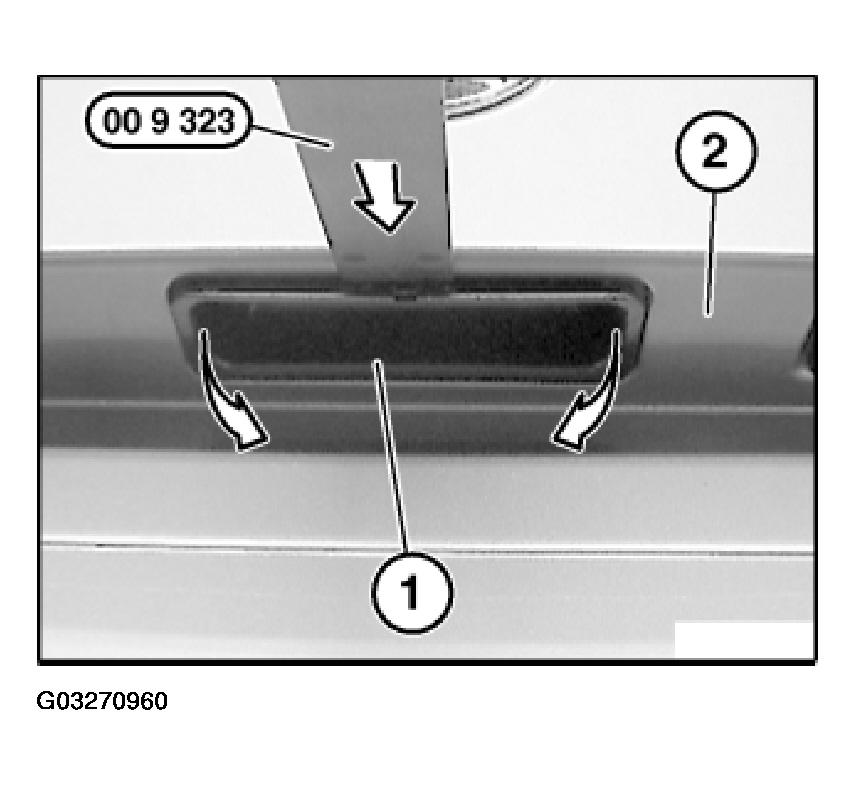

Fig 1: Inserting Special Tool Under Front Edge Of Button

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off clip (1) and remove microswitch (2). Pull off seal (3).

Installation:

Seal (3) must be undamaged and button must be correctly snapped into place.

Perform function check with trunk lid open.

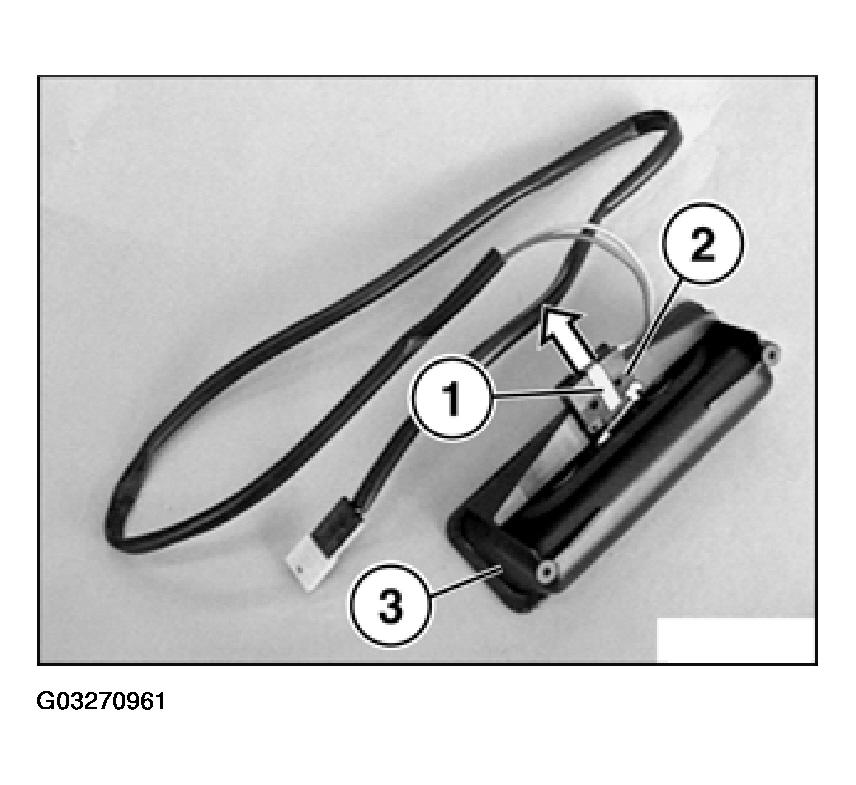

Fig 2: Removing Microswitch From Rear Lid Actuation Button

Courtesy of BMW OF NORTH AMERICA, INC.
