51 24 100 Removing and installing/replacing rear lid lock (upper section)

Necessary Preliminary Tasks:

• Remove panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

Release screws (2) and feed out upper section of rear lid lock (3).

Disconnect plug connection (1).

Installation:

Use self-tapping screws.

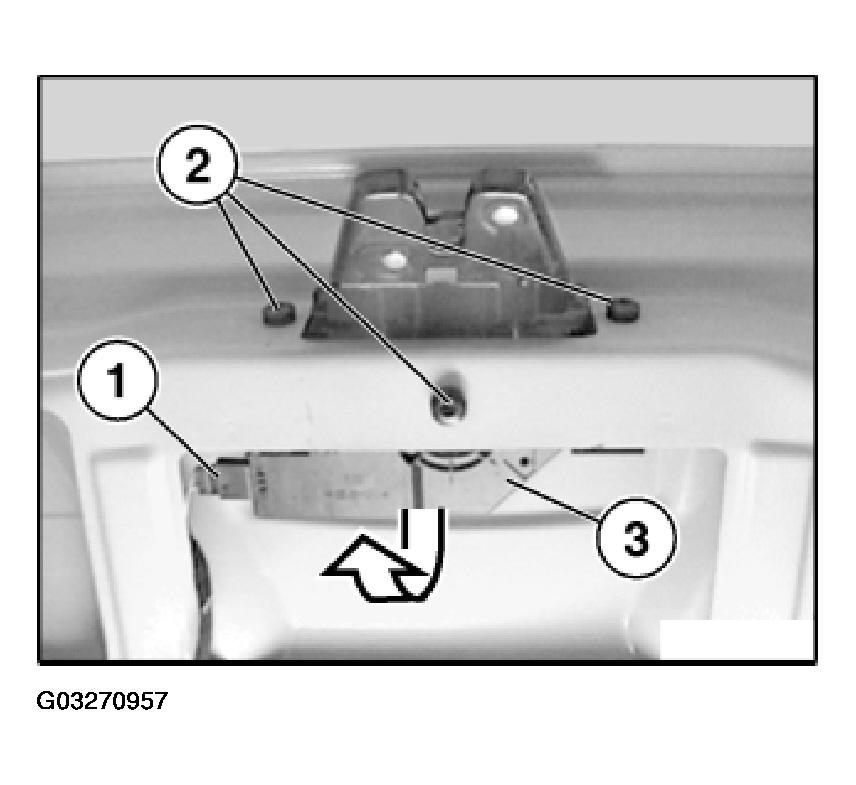

Fig 1: Locating Rear Lid Lock Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:

Engage lock (1) correctly.

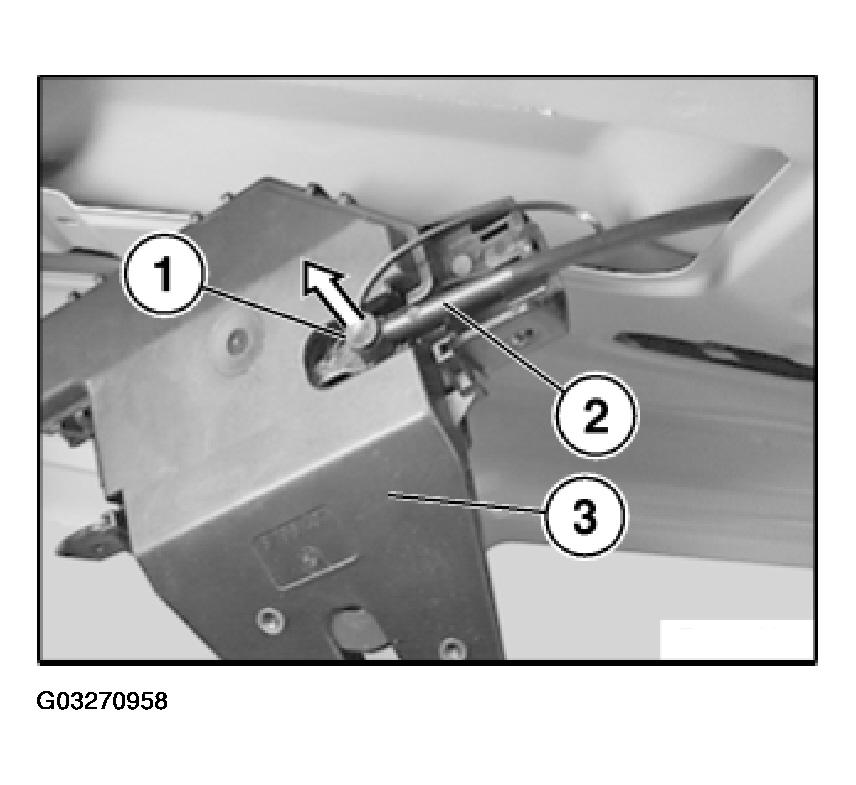

Fig 2: View Of Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
