51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid

Necessary Preliminary Tasks:

• Remove panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

Disconnect plug connection (1) on microswitch.

Detach Bowden cable (2) from holders.

Move lock actuator (3) in direction of arrow up to end stop.

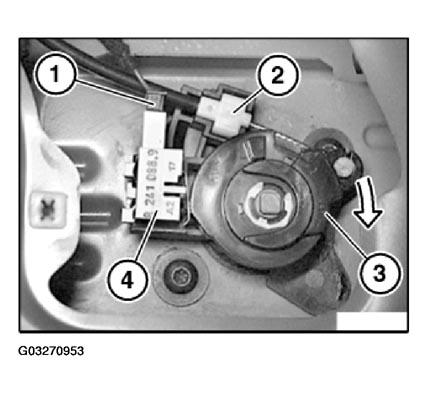

Fig 1: Disconnecting Plug Connection On Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and turn complete lock (2) in direction of arrow.

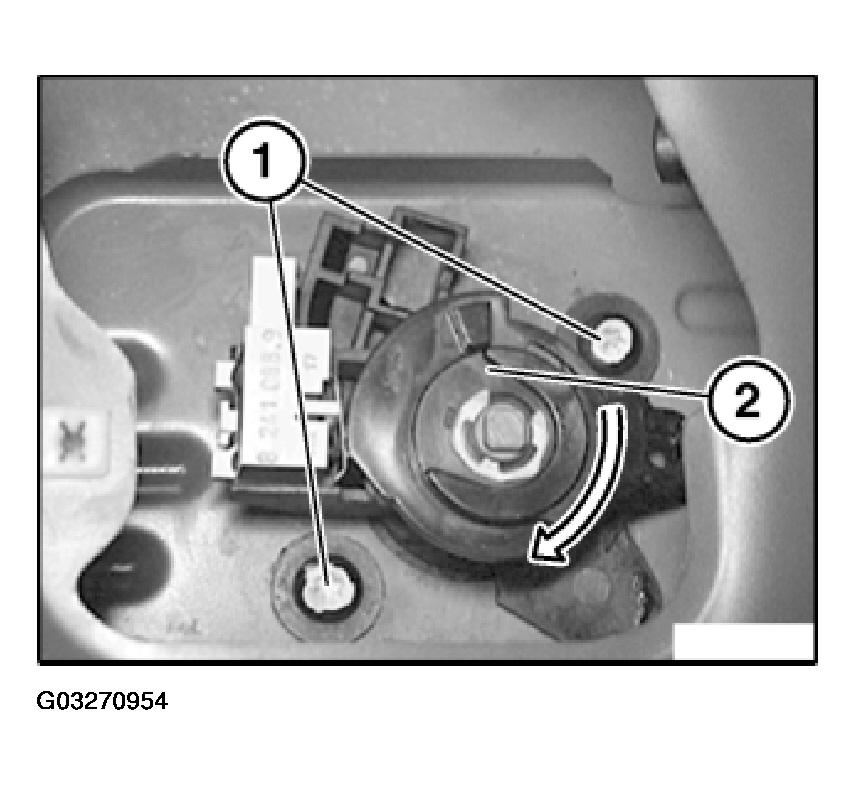

Fig 2: Locating Retaining Screws For Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Turn lock (1) to right until guide (2) is located in metal cutout (3).

Remove lock in direction of arrow.

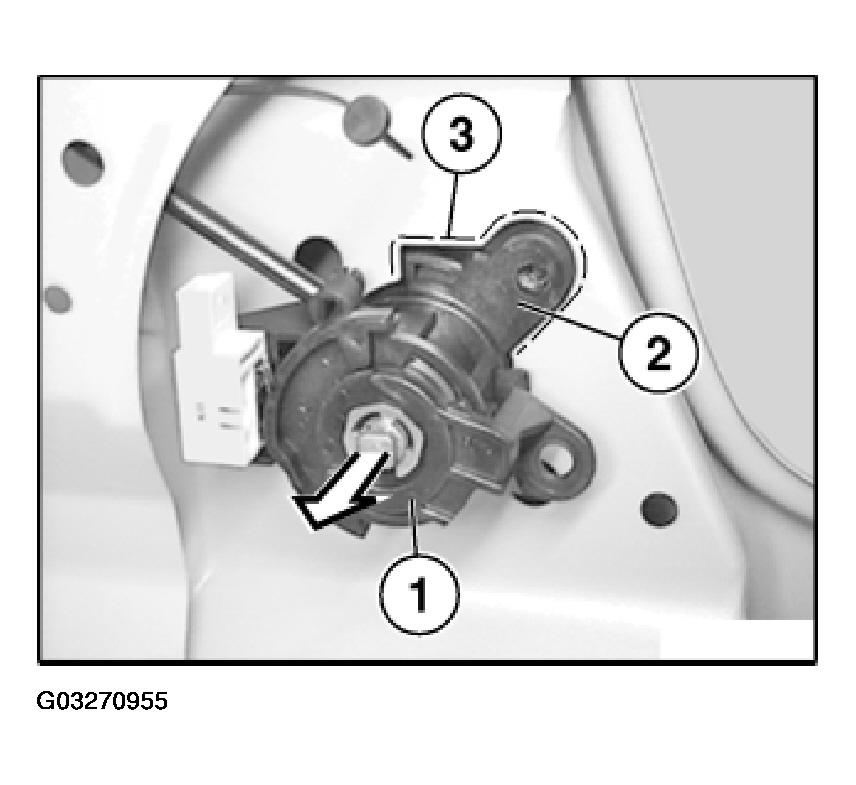

Fig 3: Removing Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Only replace:

Pull off rubber grommet (1).

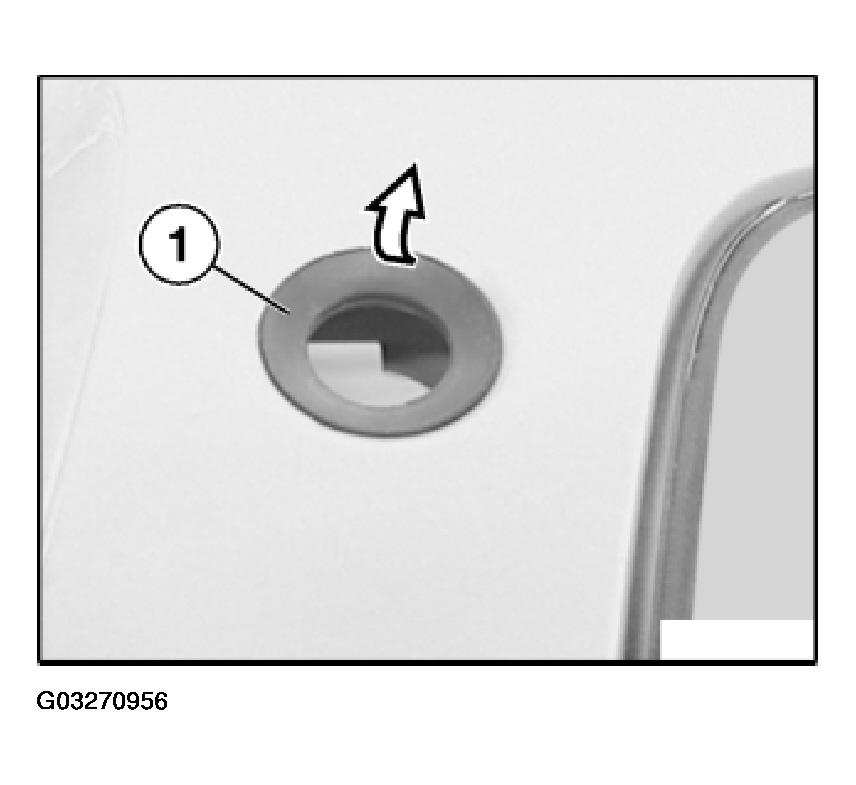

Fig 4: Identifying Rubber Grommet For Lock

Courtesy of BMW OF NORTH AMERICA, INC.
