51 13 280 Removing and installing trim strip on roof frame at left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 321

Necessary Preliminary Tasks:

Lever out trim strip (1) with special tool 00 9 321 at rear first. Unclip trim strip (1) up to front and pull out of seal (2) towards rear.

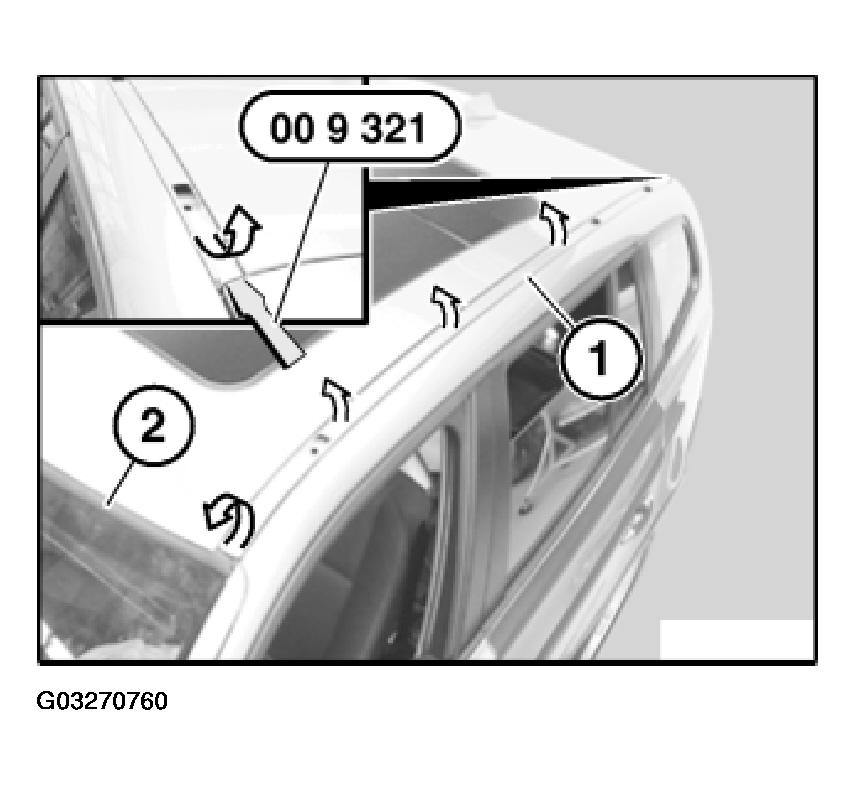

Fig 1: Levering Out Trim Strip With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of clips (2) must not be damaged.

If necessary, replace clips (2).

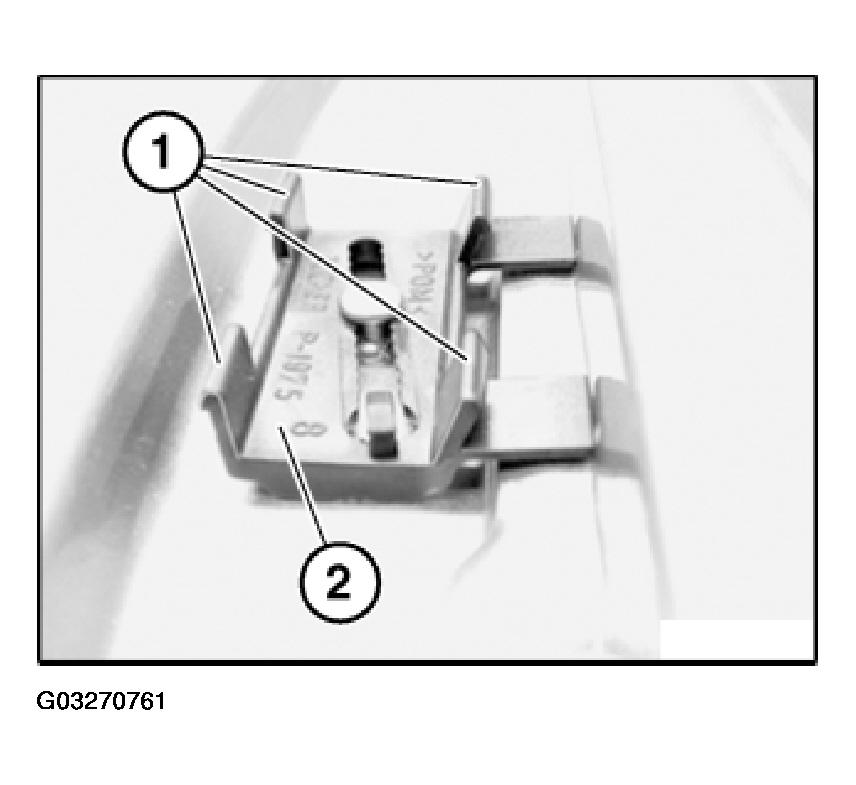

Fig 2: View Of Catches Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim strip (3) must not be damaged or missing:

1) Seals.

2) End piece, front.

4) Spacer.

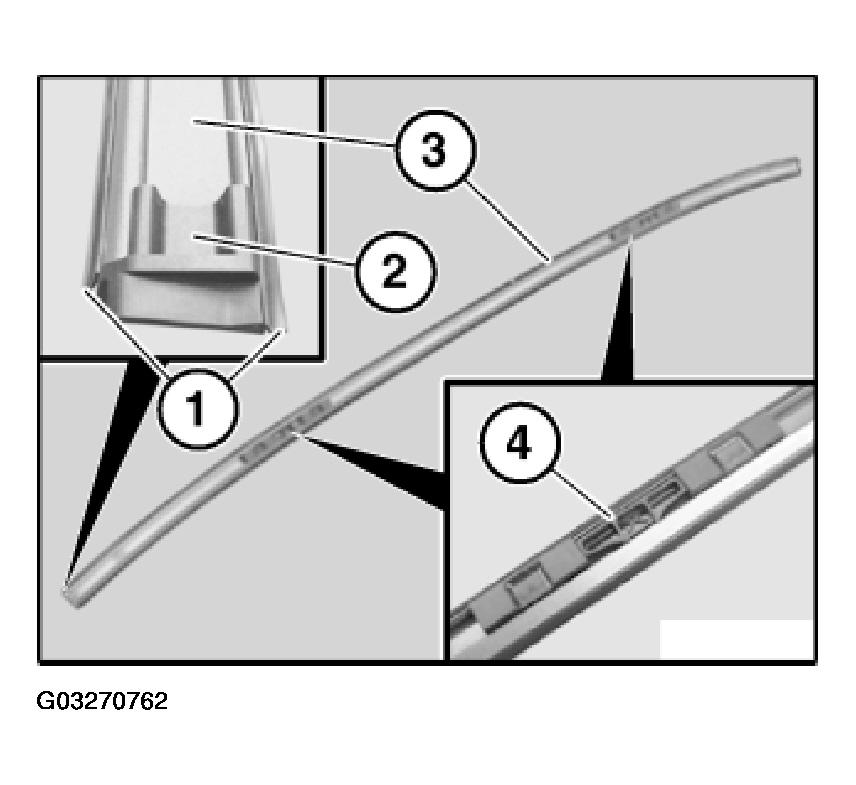

Fig 3: Identifying Trim Strip Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First push trim strip (2) at front into seal (1), clip in at rear flush with edge (3) and then clip in remainder.

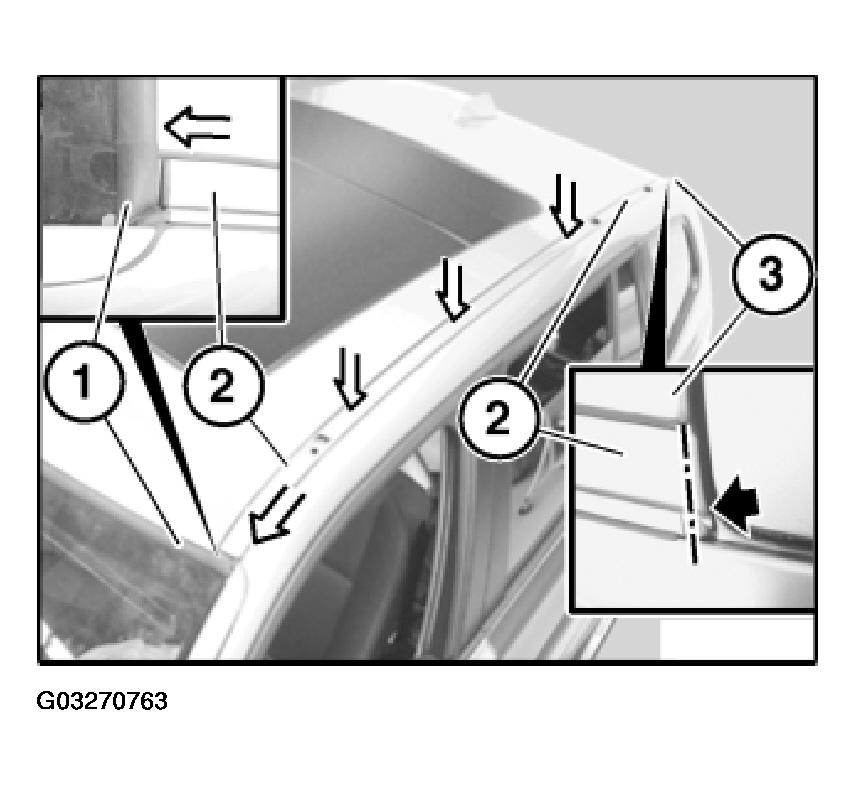

Fig 4: Installing Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.
