51 43 201 Removing and installing or replacing trim for front left or right roof pillar

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems. Refer to 51 00 ... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Detach mucket (1) in area of panel (2).

Unclip protective cap (3) and remove.

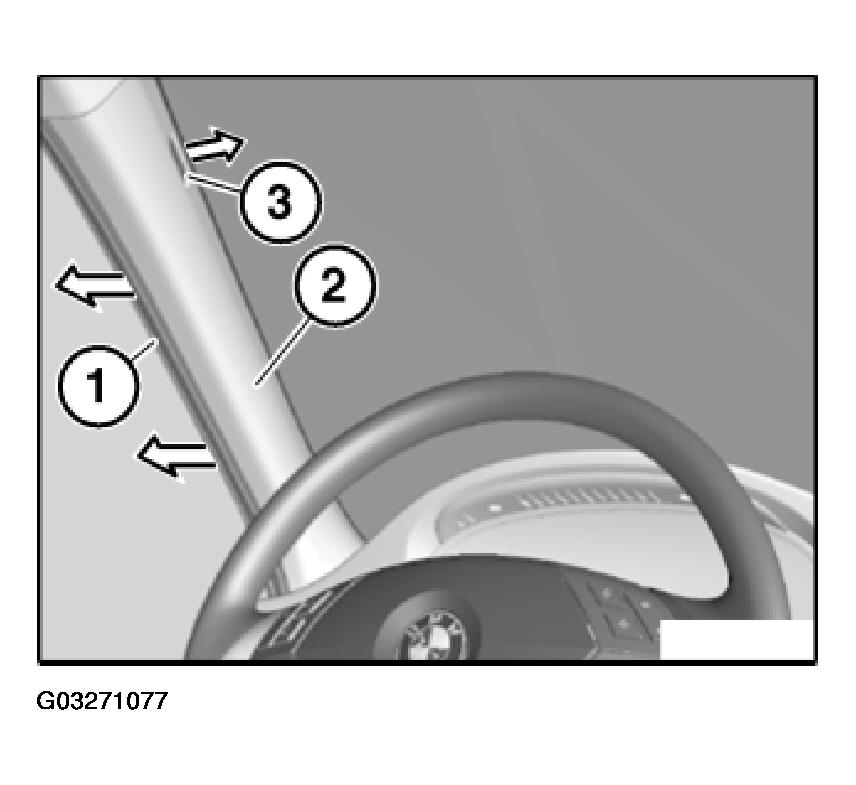

Fig 1: Releasing Mucket In Area Of Trim For Front Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque, refer to 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Unclip panel (2) at fastening point (3).

Feed out panel (2) from instrument panel (4) and remove.

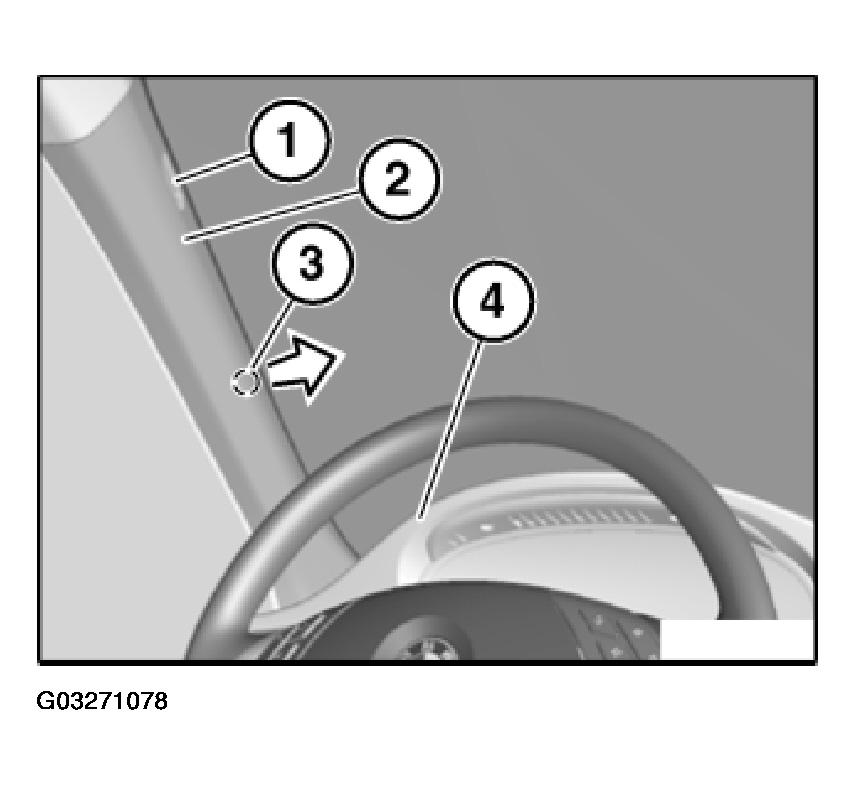

Fig 2: View Of Front Roof Pillar Fastening Point

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clip (1) remaining in bore.

If necessary, replace faulty clip (1).

Make sure guide (3) of trim for front roof pillar (2) are correctly seated in associated mounting.

Position trim for front roof pillar (2) preassembled with clip (1) on associated bore and clip into place.

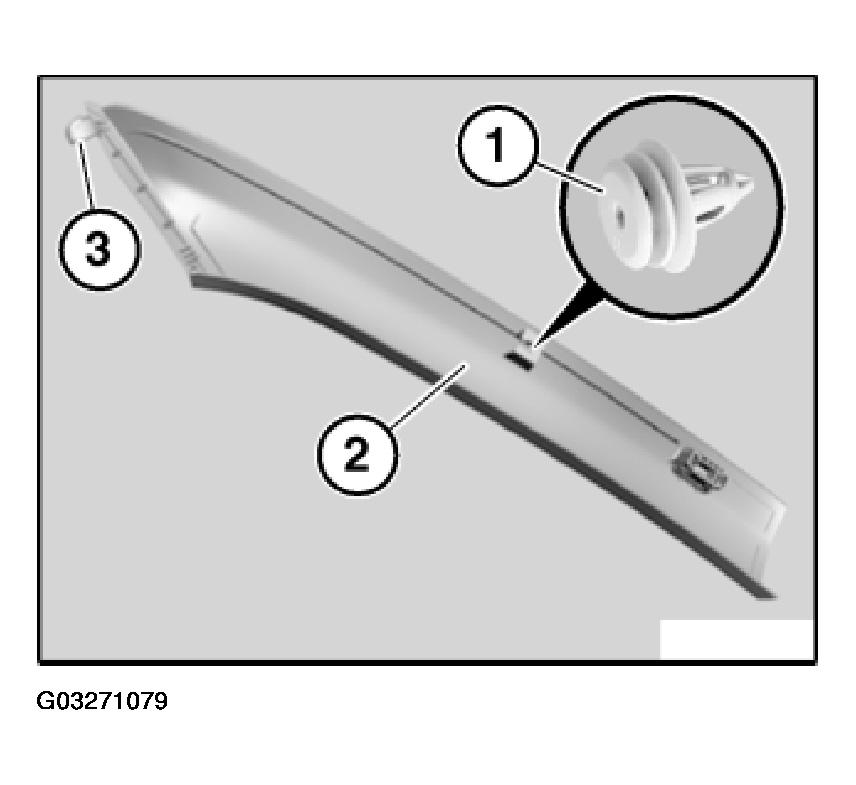

Fig 3: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
