51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

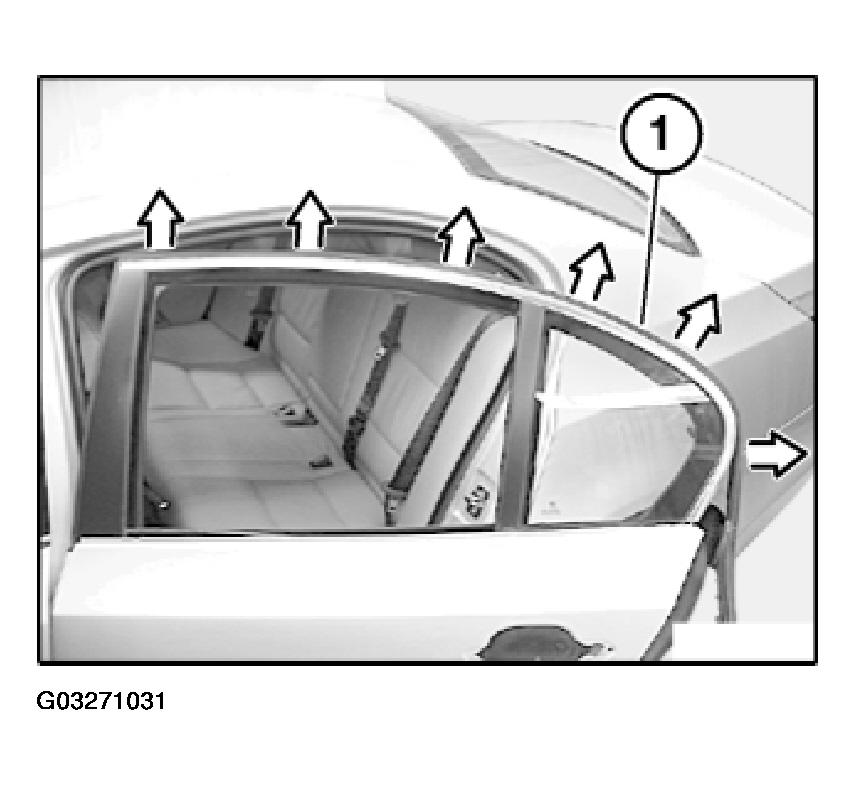

Partly lever out seal (1) at top.

Fig 1: Removing Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

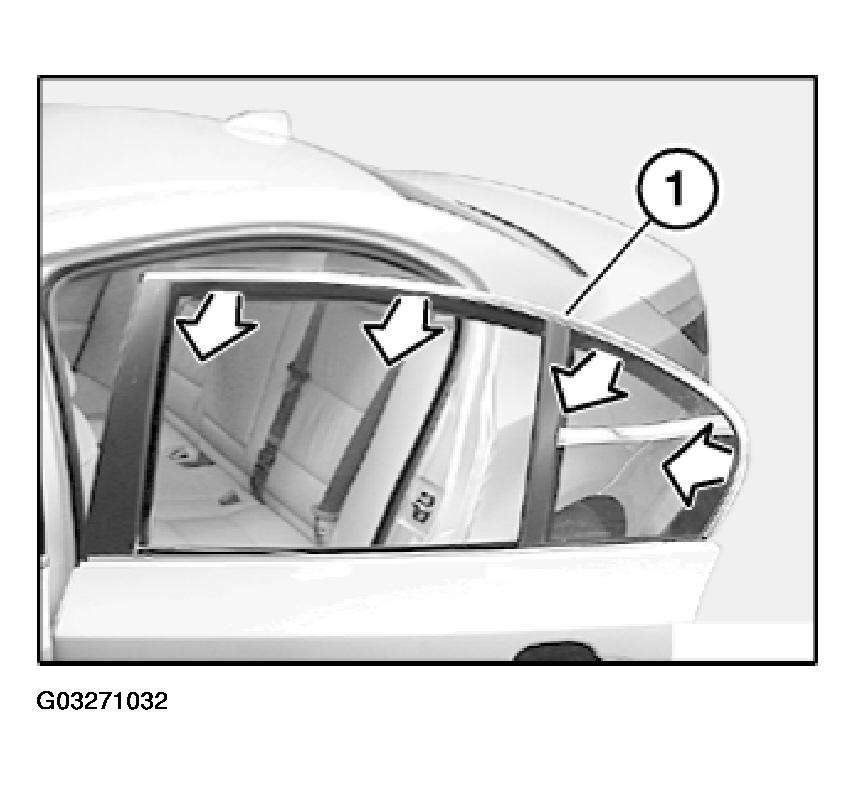

Pull off decorative strip (1) in outwards direction.

Fig 2: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

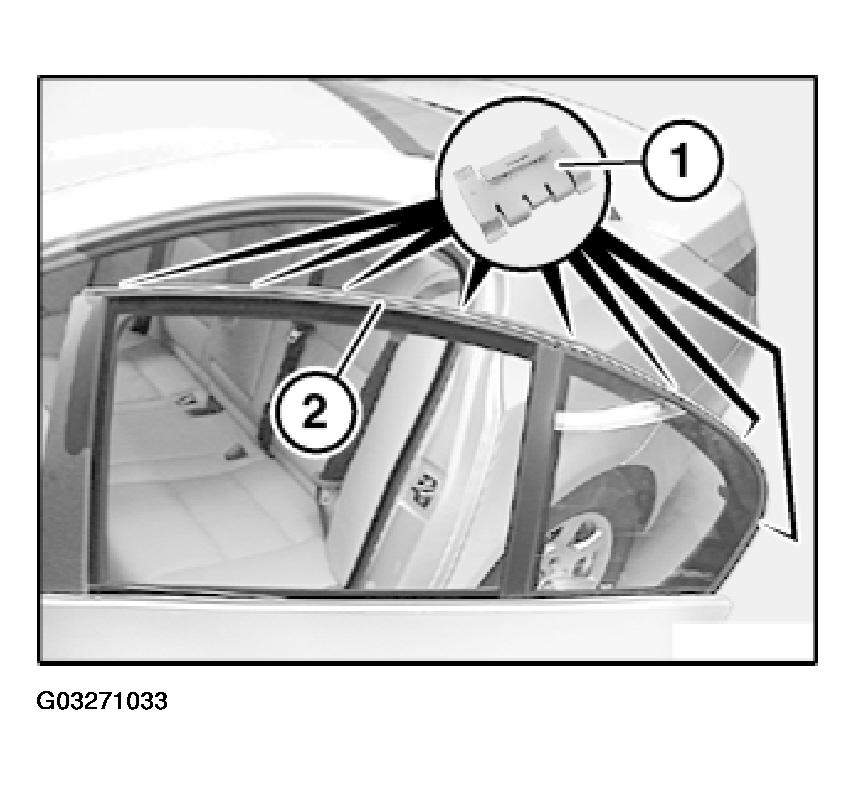

If necessary, remove faulty clips (1) from window frame (2) and replace.

Fig 3: View Of Clips In Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
