51 12 827 Removing and installing / replacing guide for bottom rear bumper

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear bumper trim. Refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

All Models Except M6:

Release nuts (1) on guide (2).

Remove guide (2).

Installation:

If necessary, replace faulty nuts (1).

Fig 1: Identifying Nuts On Guide

Courtesy of BMW OF NORTH AMERICA, INC.

M6 Only:

Bend guide (1) downwards slightly and release nuts (2) behind.

Remove guide (1).

Installation:

If necessary, replace faulty nuts (2).

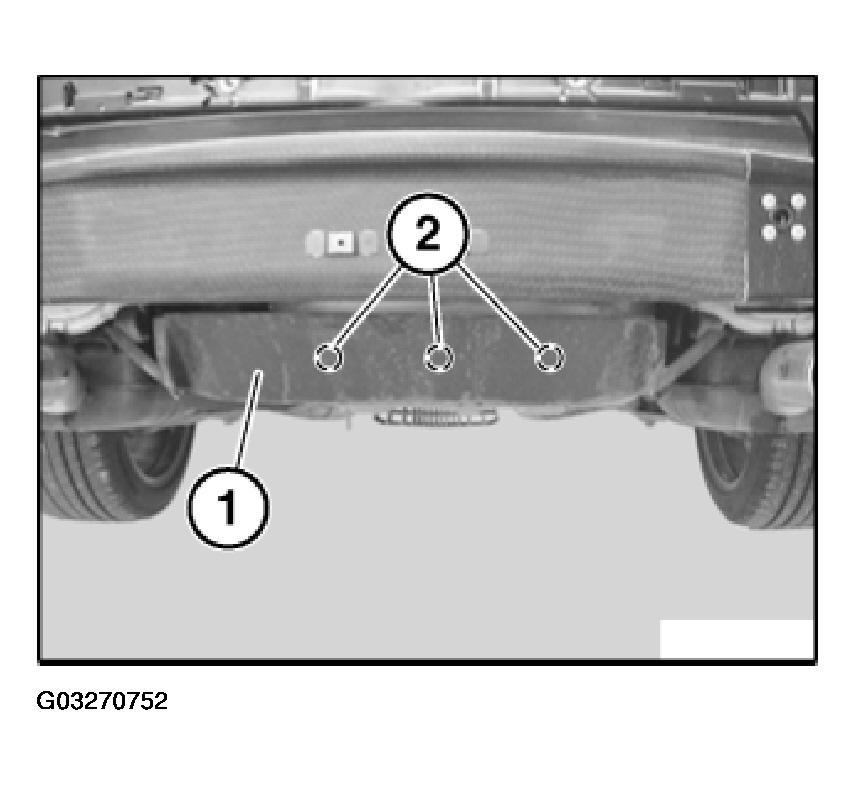

Fig 2: View Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
