51 12 826 Removing and installing/replacing guide for rear bumper
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear bumper trim. Refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .
If necessary, disconnect wiring harness for PDC.

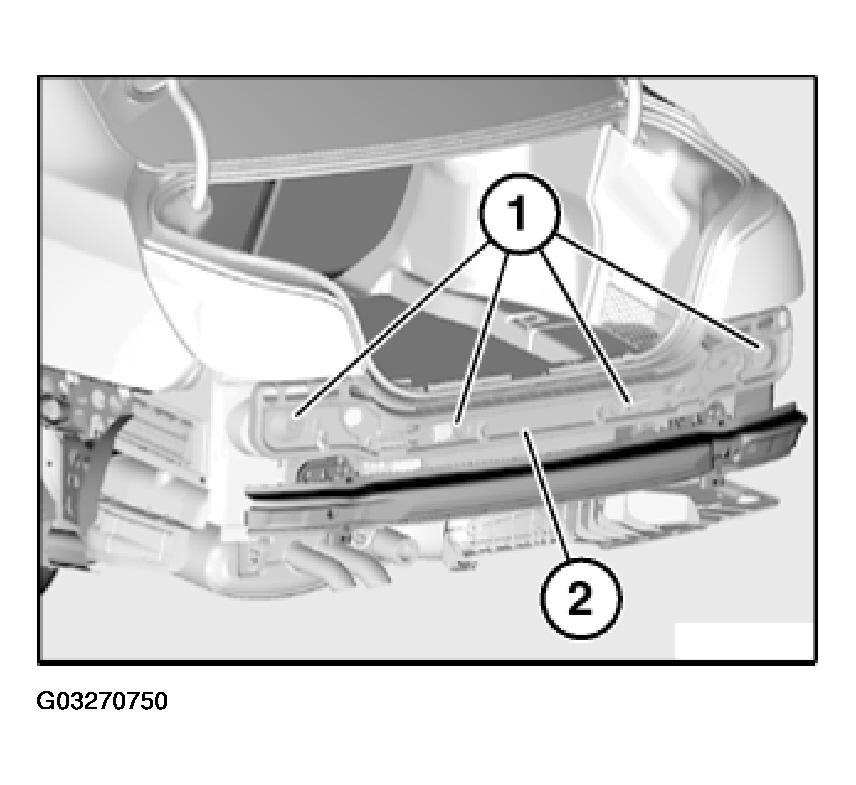

Release screws (1) and remove guide (2).
