51 12 810 Removing and installing / replacing deformation element on bumper carrier on left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove carrier for rear bumper trim. Refer to 51 12 050 REMOVING AND INSTALLING / REPLACING CARRIER FOR REAR BUMPER TRIM .

Release screws (1).

Remove locator (2) straight towards rear.

Installation:

Tightening torque, refer to 51 12 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

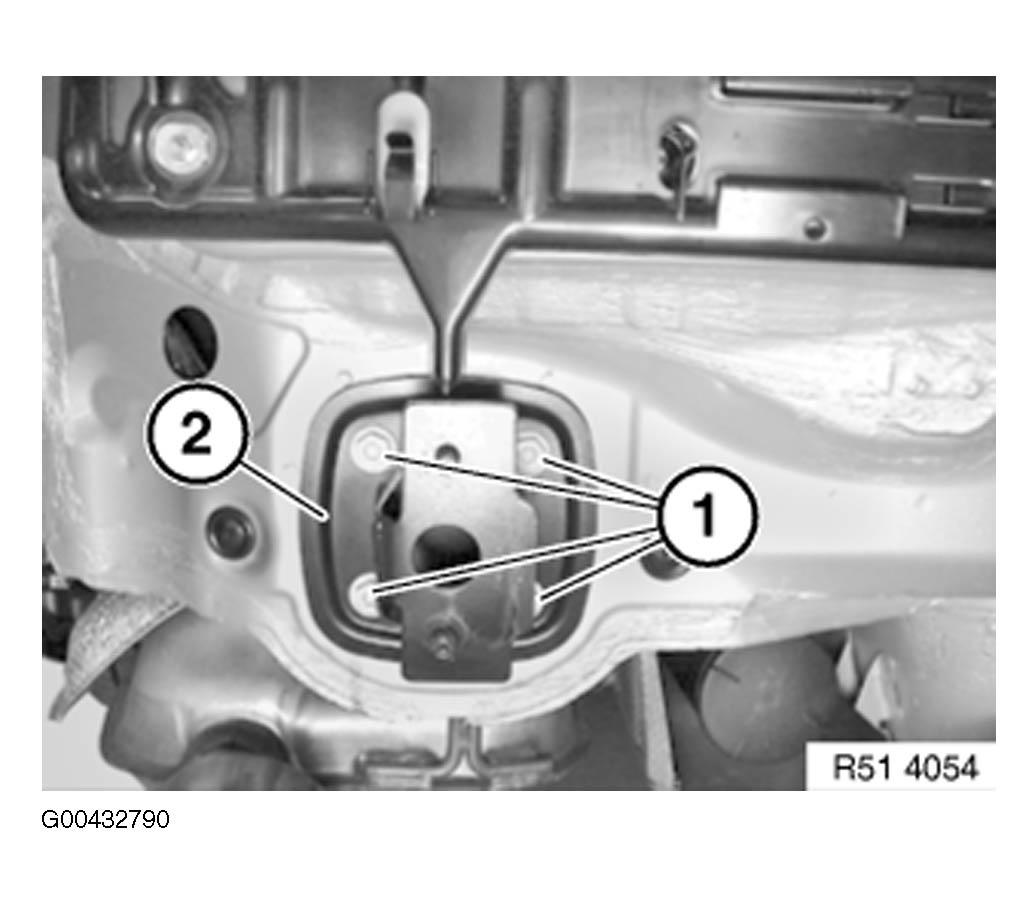

Fig 1: View Of Locator Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Foam seal (1) on locator (2) must not be damaged.

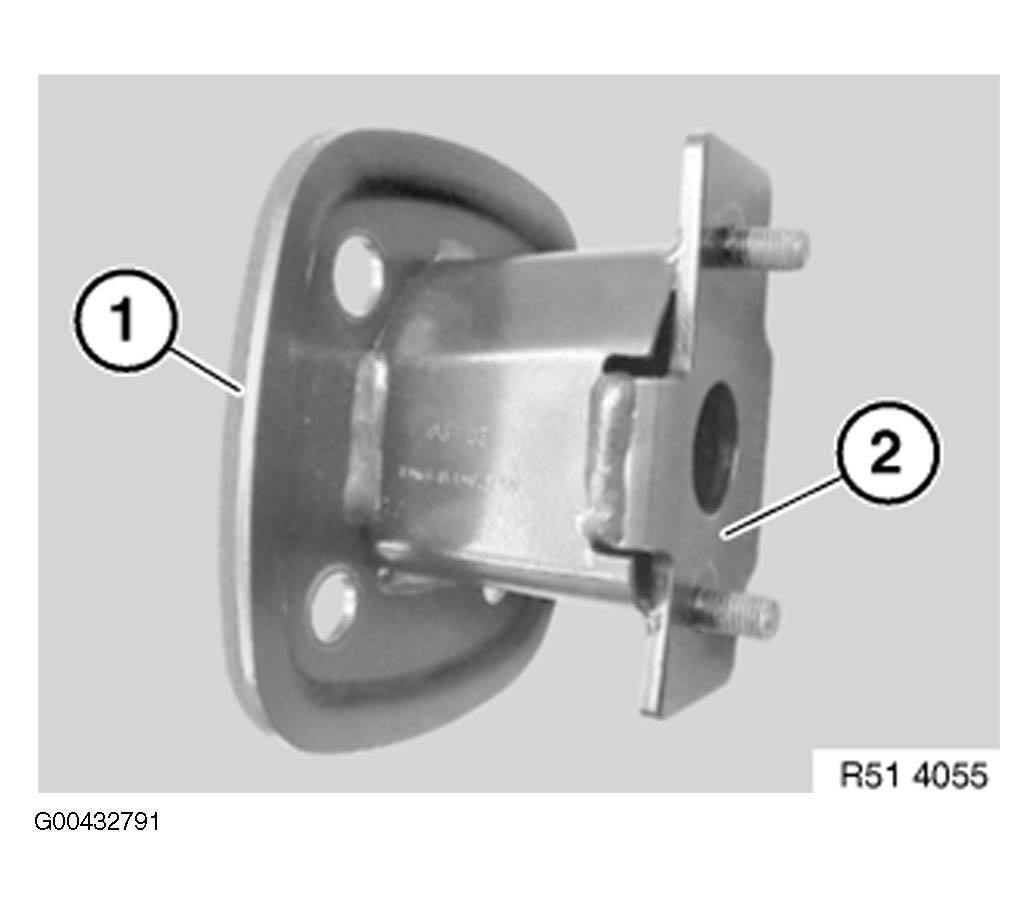

Fig 2: Identifying Foam Seal On Locator

Courtesy of BMW OF NORTH AMERICA, INC.
