51 12 801 Replacing bracket for rear bumper at left or right
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear bumper trim. Refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

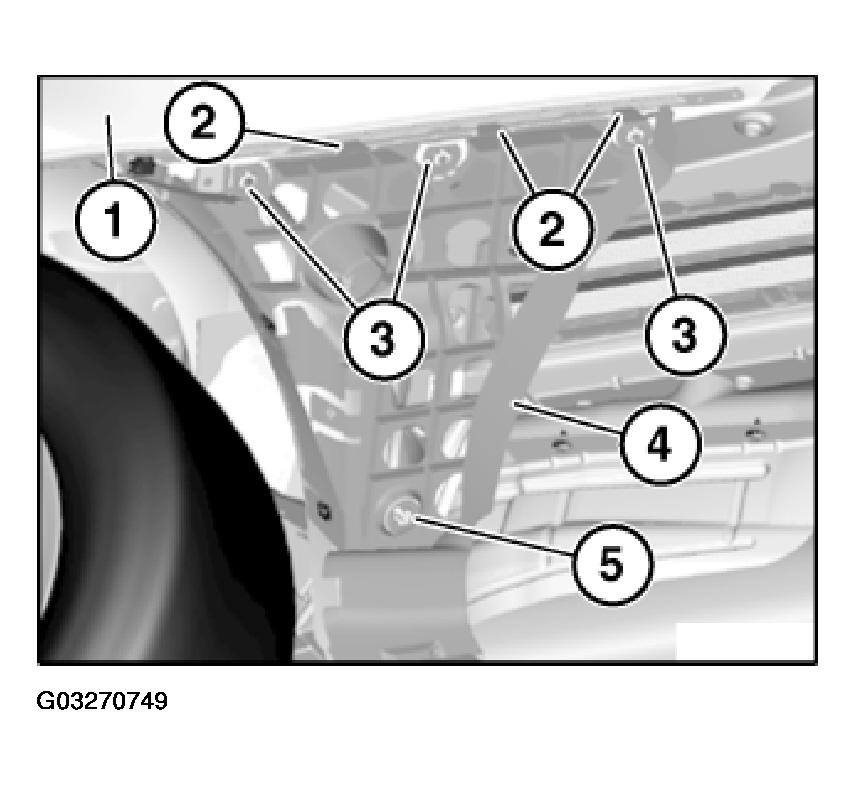

Release screws (3).
Release nut (5) and remove holder (4).
1) Side panel.
Installation:
Catches (2) of holder (4) must not be damaged or missing.
