51 16 360 Removing and installing/replacing right glovebox

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open glovebox.

Unclip pin (1) from retaining strap (2).

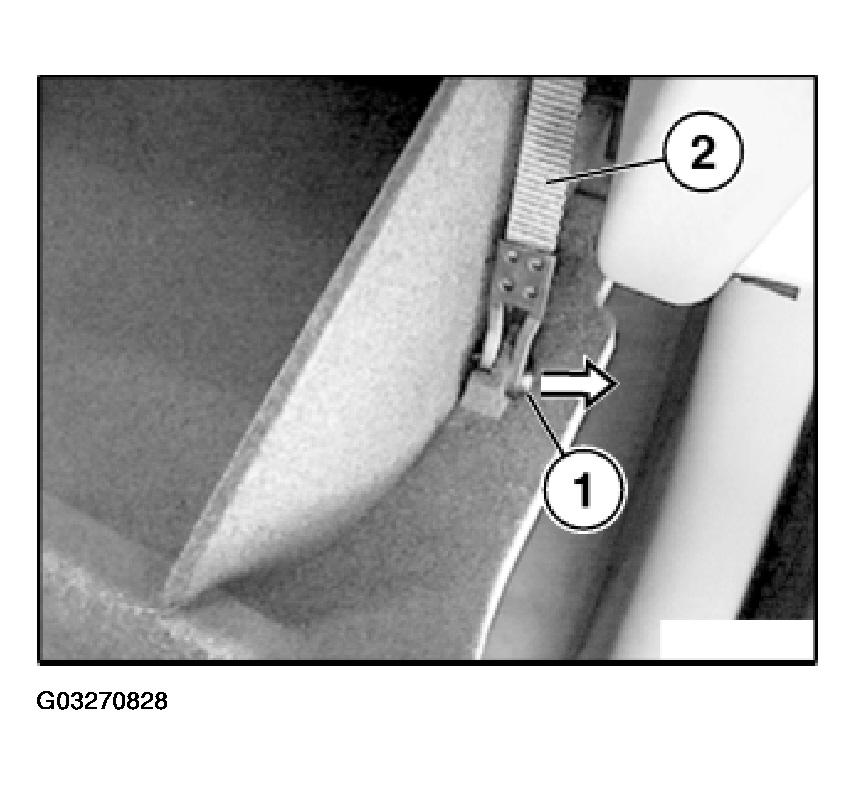

Fig 1: Disconnecting Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pin (1) from shock absorber (2).

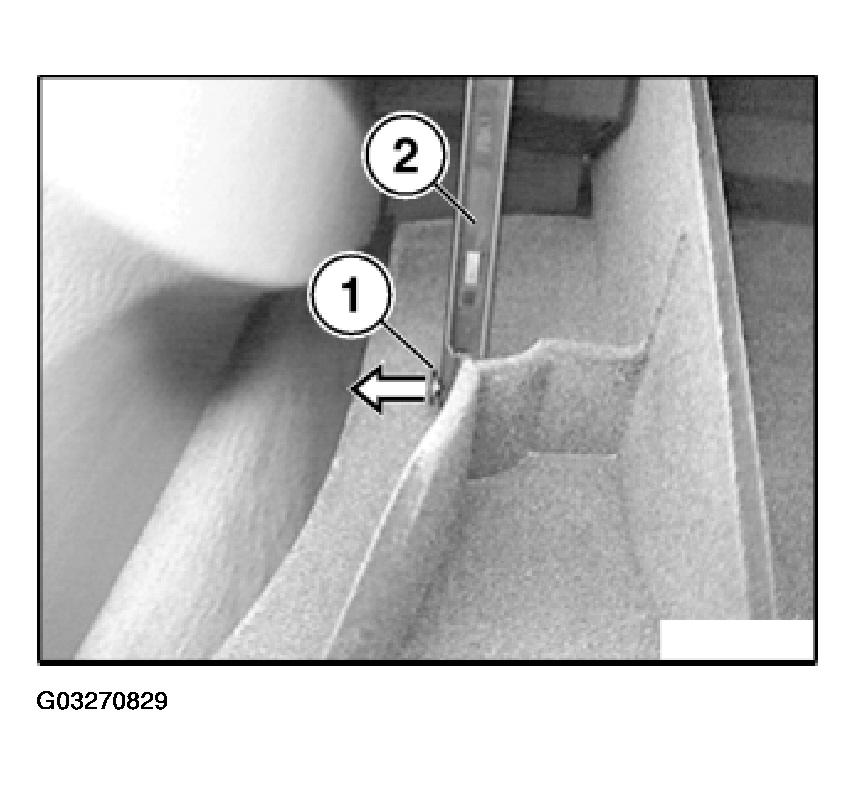

Fig 2: Removing Pin From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Close glovebox (3) and secure against falling out.

Release screws (1) and remove counter-support (2).

Open glovebox (3) and remove.

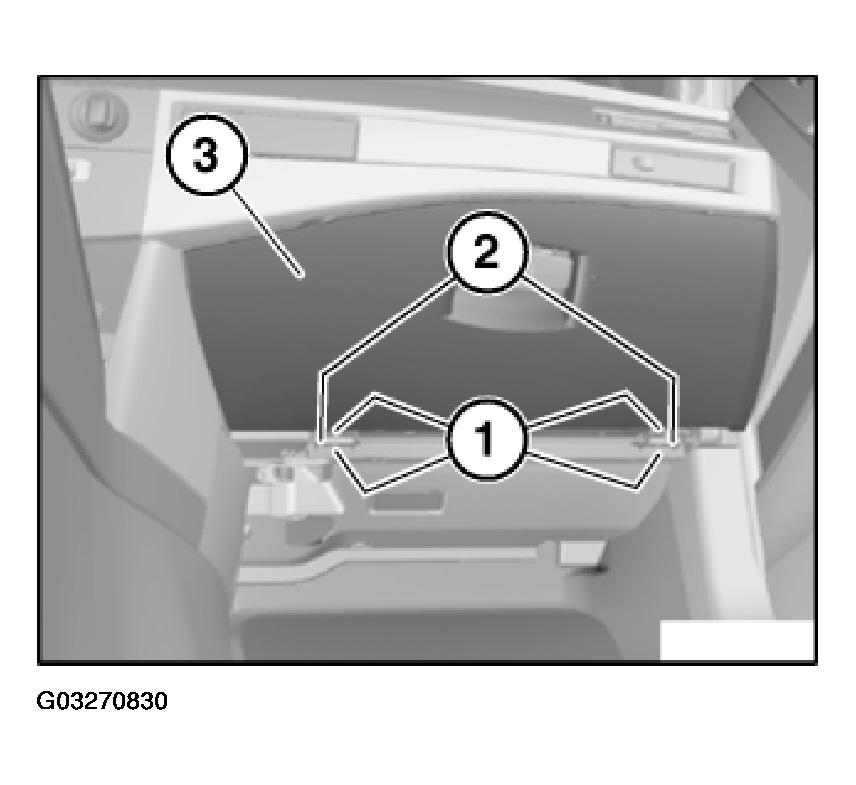

Fig 3: View Of Counter-Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure counter-support (1) is correctly seated on chamfered faces of shaft (2).

If necessary, turn shaft (2) accordingly.

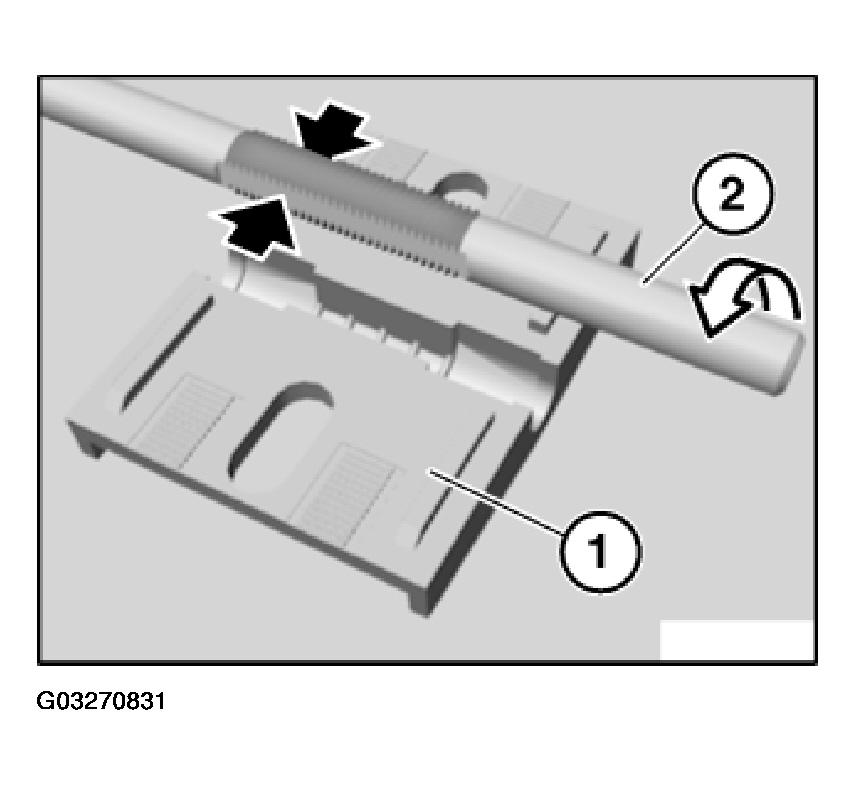

Fig 4: Aligning Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove lock for right glovebox. Refer to 51 16 340 REMOVING AND INSTALLING/REPLACING LOCK FOR RIGHT GLOVEBOX .
