51 16 ... Removing and installing / replacing front insert (on storage compartment trim)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for storage compartment. Refer to 51 16 211 REMOVING AND INSTALLING/REPLACING FINISHER FOR STORAGE TRAY .

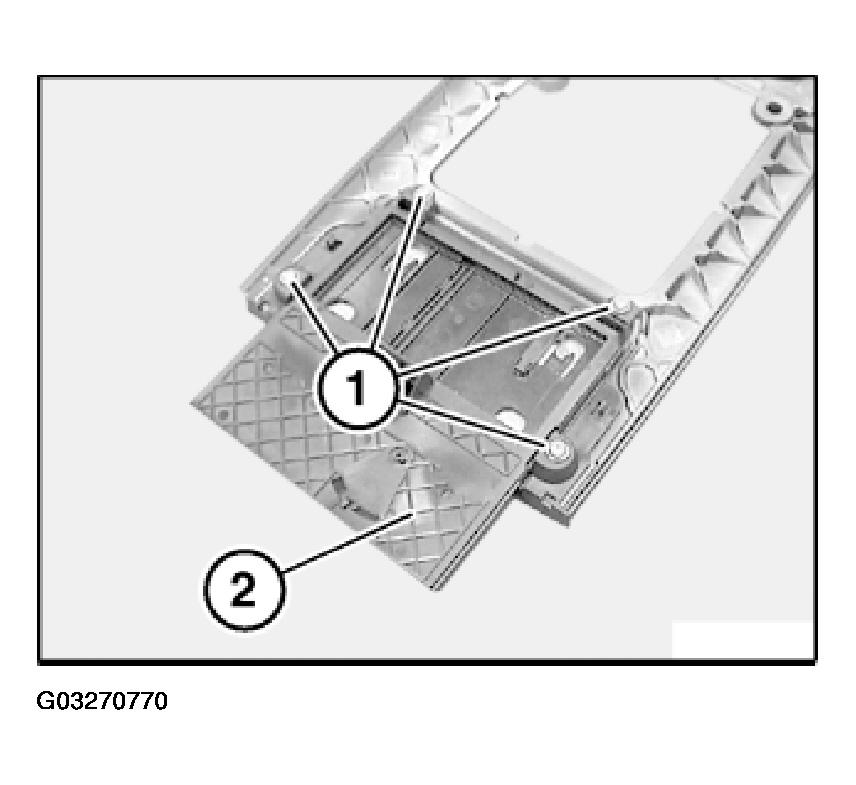

Release screws (1) and remove insert (2).

Fig 1: Locating Insert Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

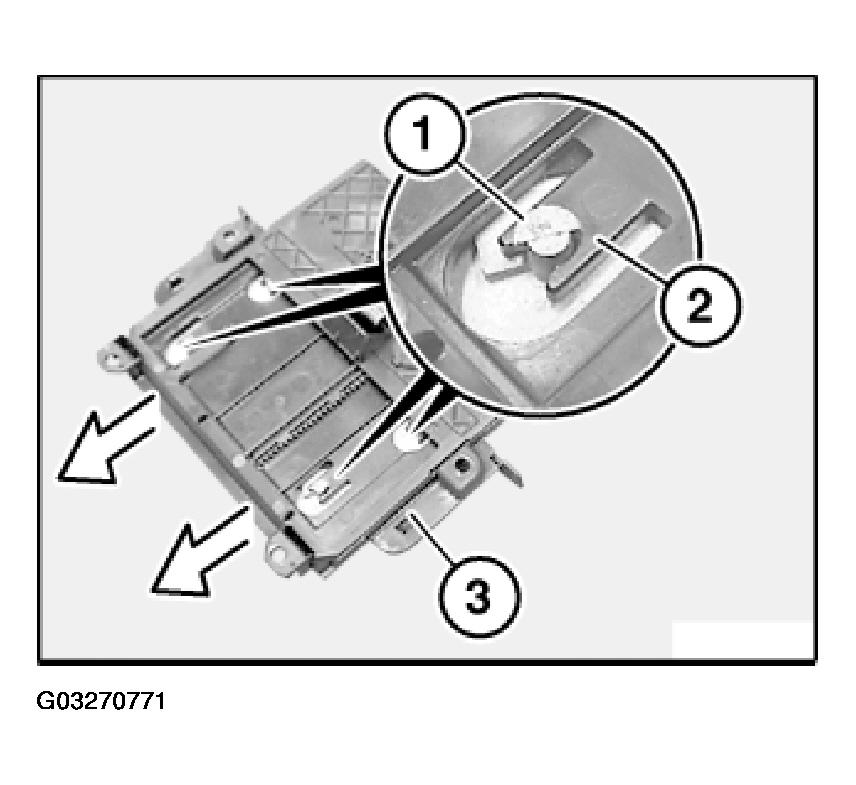

Carefully release pin (1) from catch (2) and remove decorative trim from insert (3).

Installation:

Pin (1) and catch (2) must not be damaged.

Fig 2: View Of Pin And Catch

Courtesy of BMW OF NORTH AMERICA, INC.
