51 17 400 Removing and installing/replacing bump stop with ejector for filler flap

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

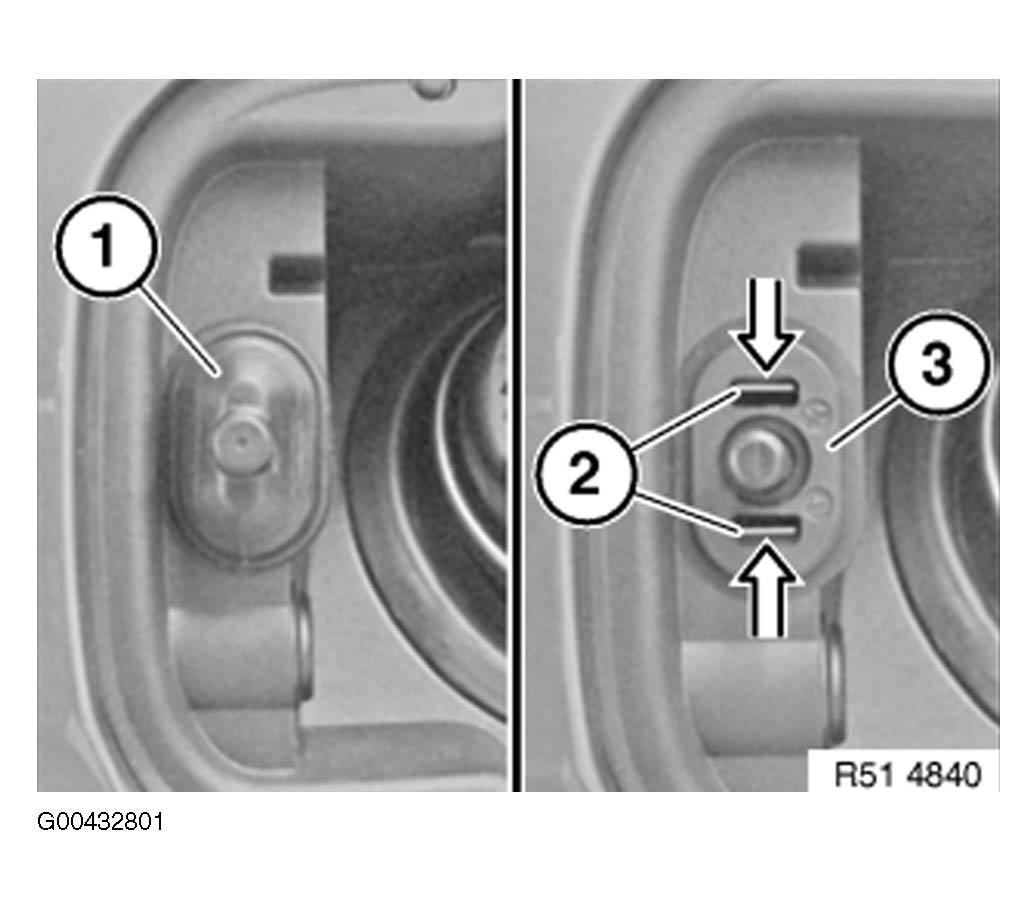

Release cover (1).

Press catches (2) together and pull out ejector (3).

Installation:

Install ejector (3) with fitted cover (1).

Fig 1: View Of Ejector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

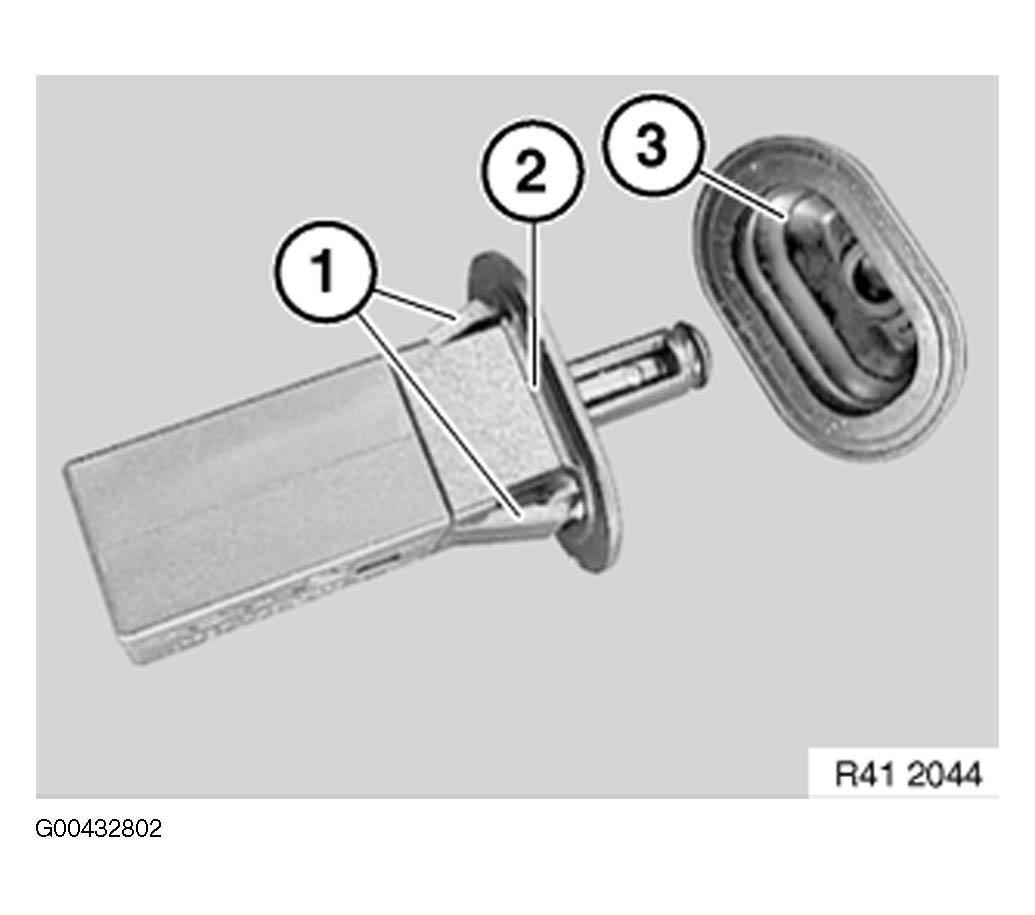

Catches (1) on ejector (2) must not be damaged.

Make sure cover (3) is correctly seated on ejector (2).

Fig 2: Identifying Catches On Ejector

Courtesy of BMW OF NORTH AMERICA, INC.
