51 23 160 Removing and installing/replacing arrester hook on engine hood

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Raise bonnet/hood lid.

Release screws (1) and remove arrester hook (2).

Tightening torque, refer to 51 23 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

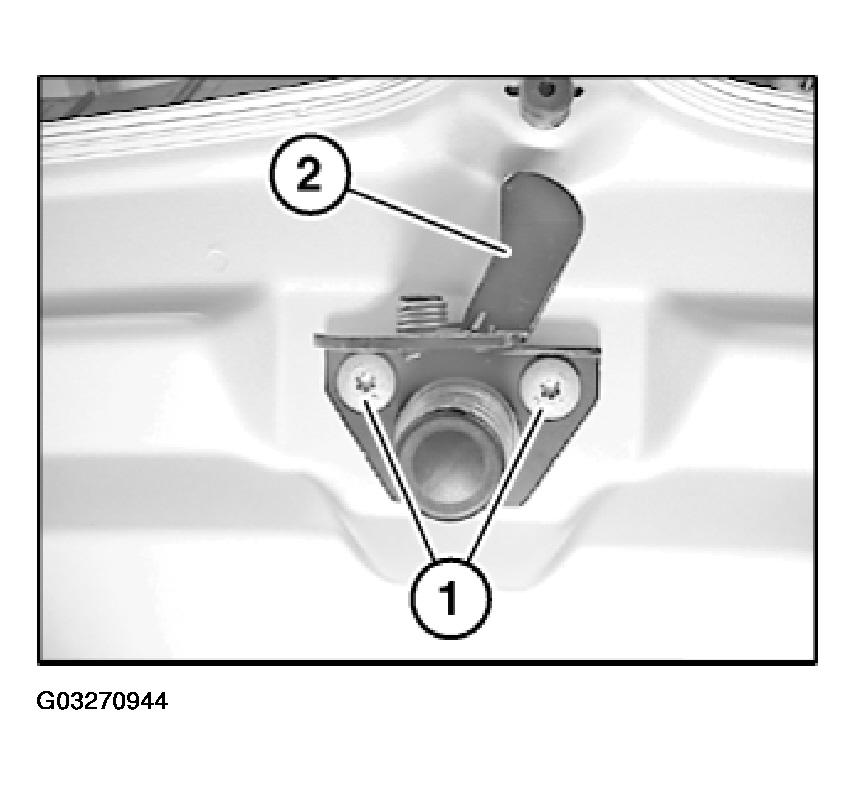

Fig 1: View Of Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.
