51 23 110 Removing and installing/replacing left hood/bonnet lock

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove hood/bonnet lock (2) in direction of arrow.

Tightening torque, refer to 51 23 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

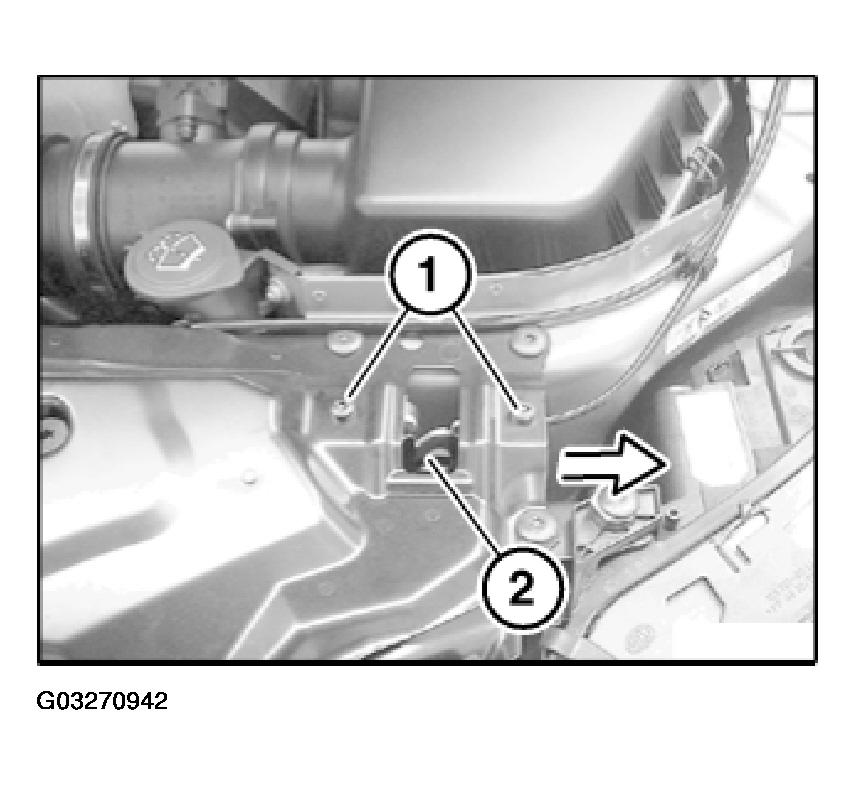

Fig 1: Locating Hood/Bonnet Lock Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (2).

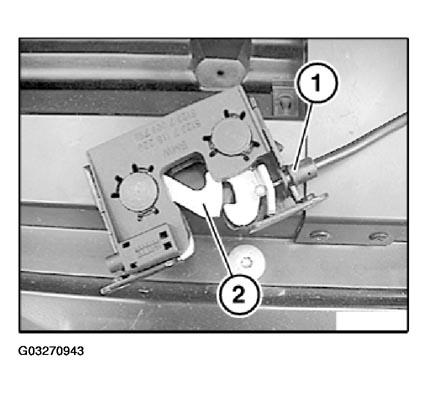

Fig 2: View Of Bowden Cable In Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
