Section 286 (Body Equipment - Repair)
>>
General
>>
51 21 ... Overview of front door locks
51 21 ... Overview of front door locks
WARNING:
This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

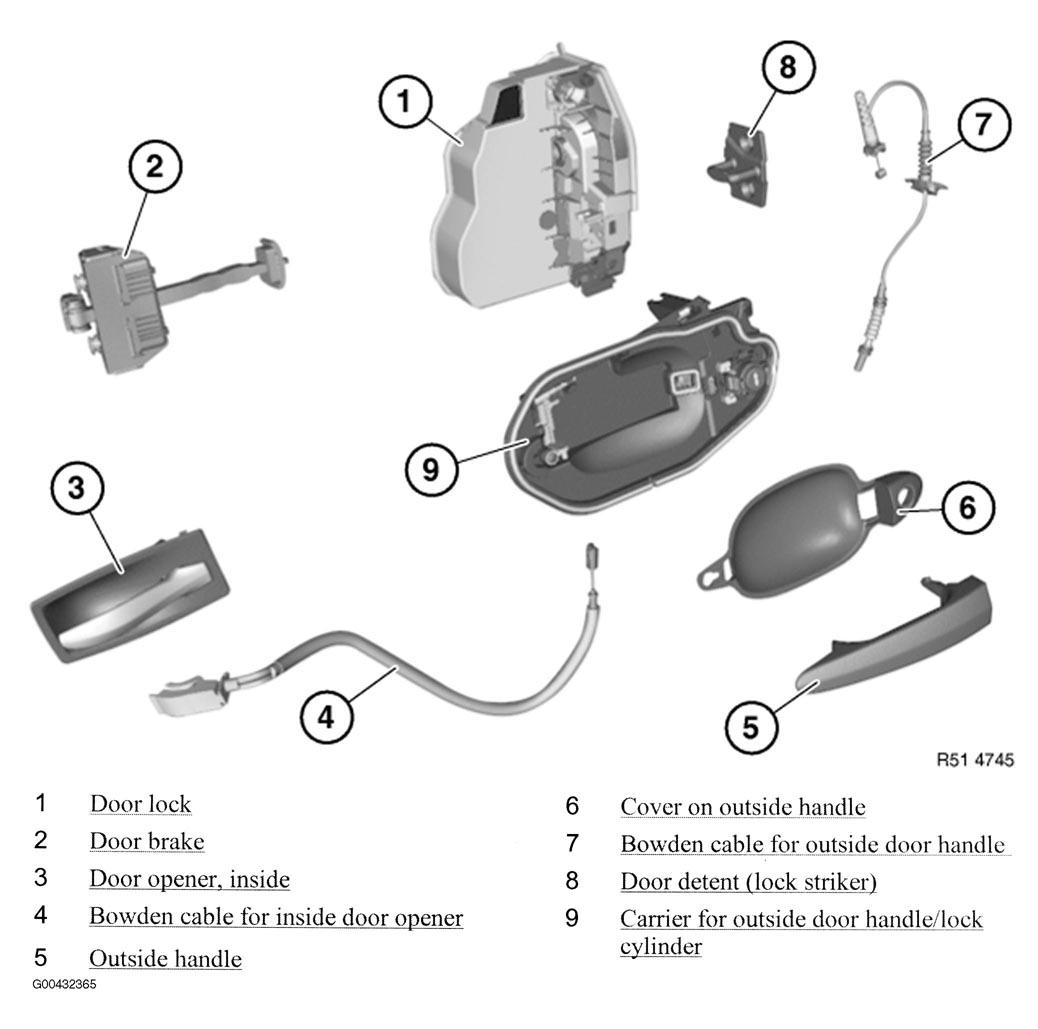

Fig 1: Overview Of Front Door Locks
Courtesy of BMW OF NORTH AMERICA, INC.
