51 32 420 Removing and installing/replacing finisher on front door window frame, left or right

Necessary Preliminary Tasks:

• Remove window cavity cover strip on outside of front door. Refer to 51 21 300 REMOVING AND INSTALLING OR REPLACING WINDOW RECESS COVER STRIP ON OUTSIDE OF LEFT OR RIGHT FRONT DOOR .

  Partially detach rubber window seal (1) at rear.

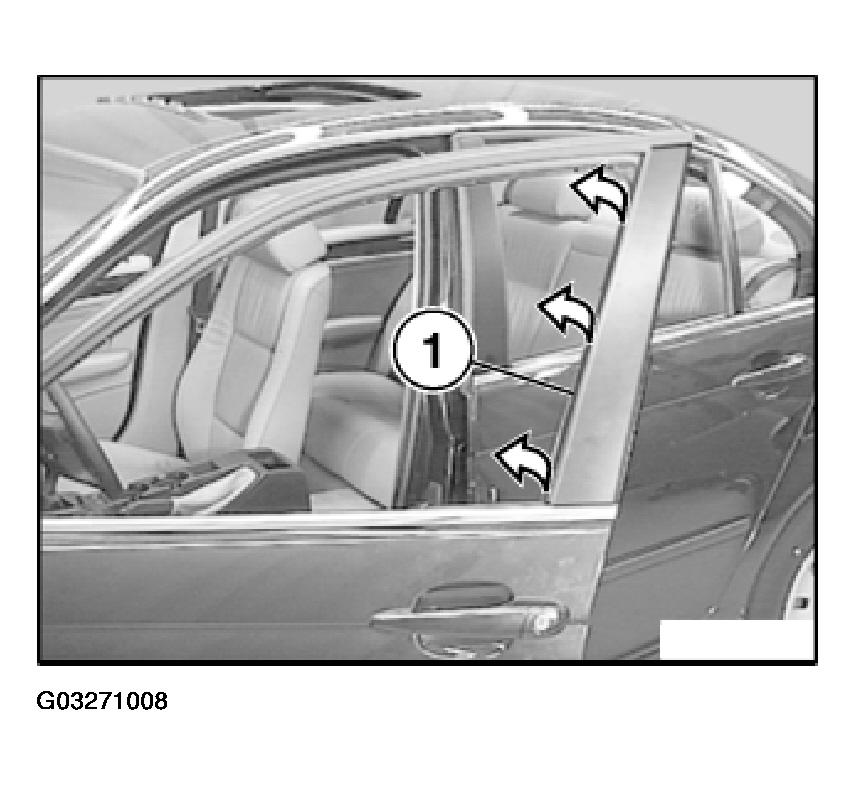

  Fig 1: Removing Rubber Window Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove finisher (2) and press approx. 3 mm towards rear.

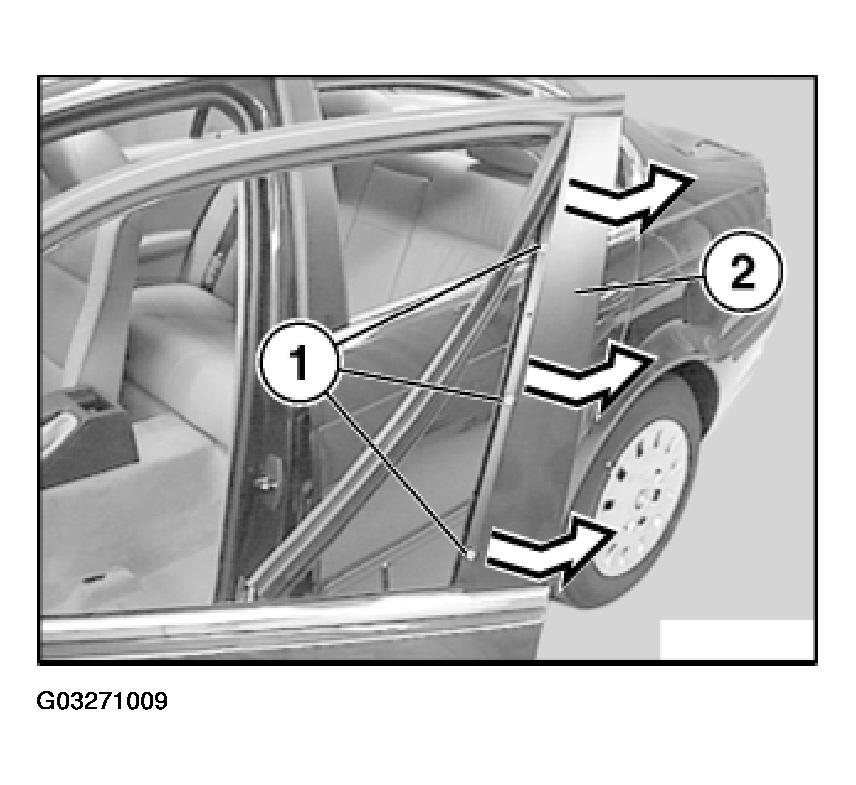

Fig 2: Locating Finisher Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove finisher (1) towards top.

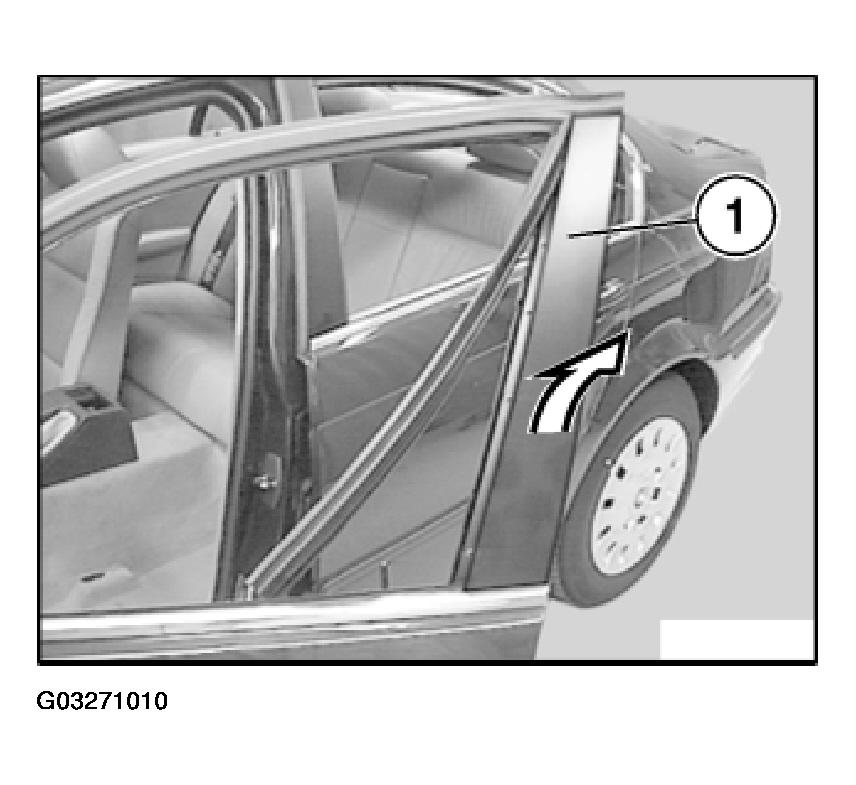

Fig 3: Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

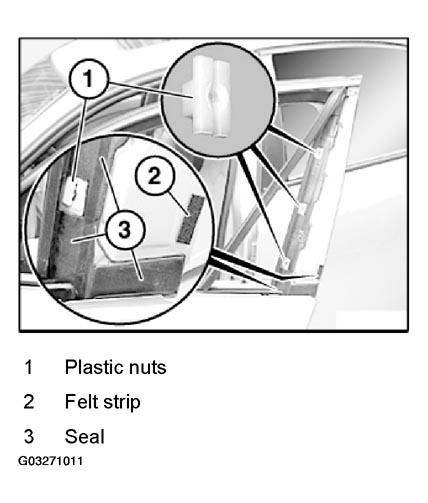

Fig 4: View Of Trim Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check finisher (1) for damage, replace if necessary.

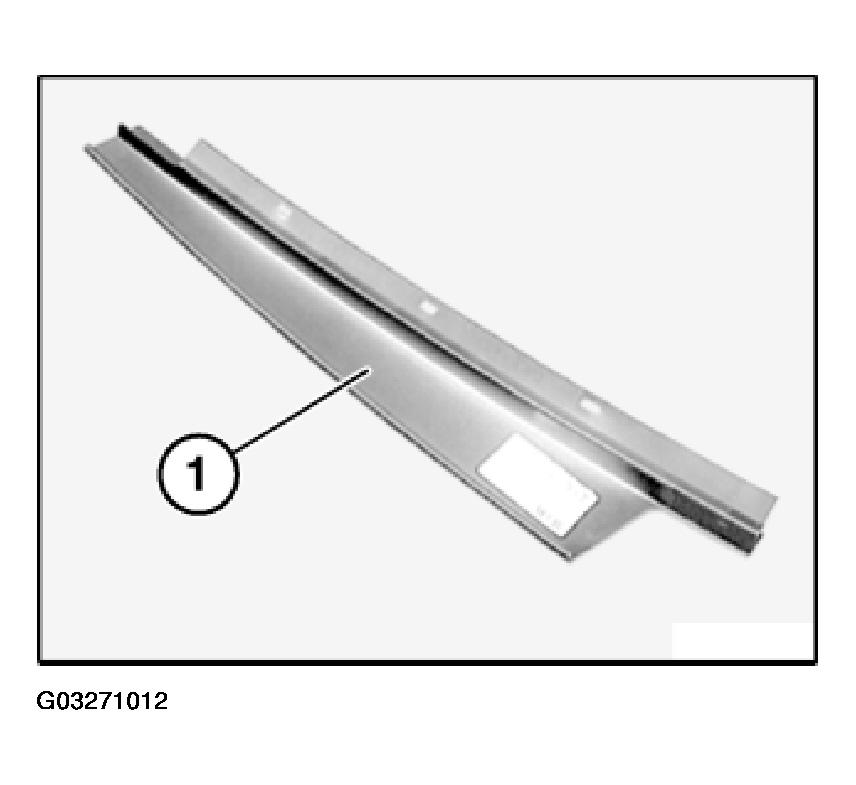

Fig 5: Identifying Finisher

Courtesy of BMW OF NORTH AMERICA, INC.
