51 32 390 Removing and installing/replacing decorative strip on front left or right door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open door window.
Remove mirror on front door.

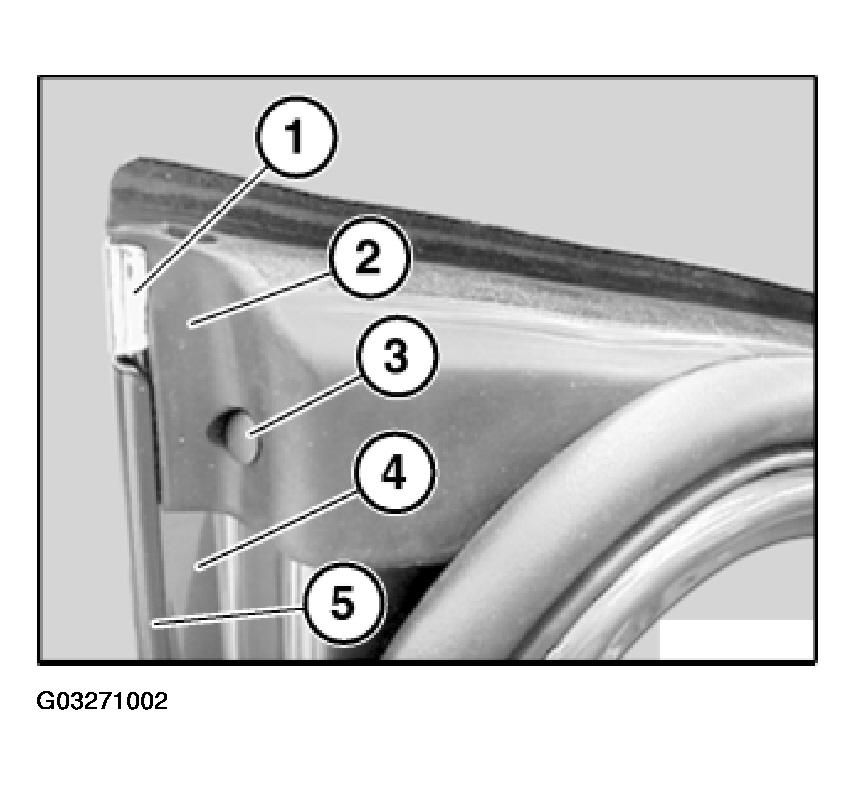

Lever out plastic rivet (3).

Lever seal (2) out of decorative strip (1).

Installation:

During installation, attach decorative strip (1) first at rear to door edge (4).

Decorative strip (1) must match trim (5).

Fig 1: Locating Plastic Rivet In Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

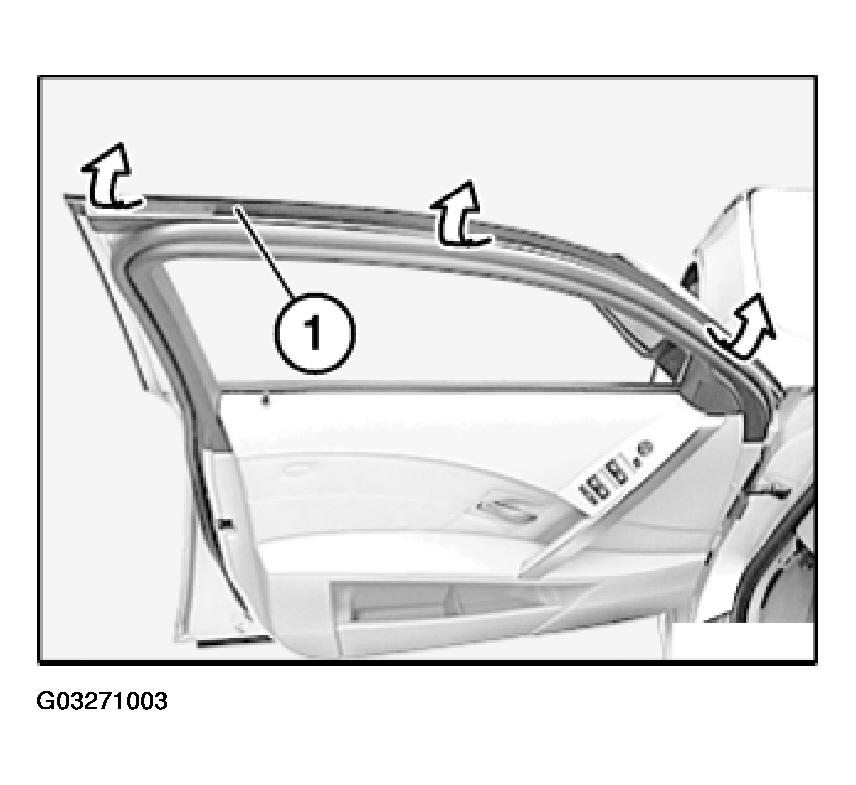

Lever out seal (1) from inside.

Fig 2: Removing Door Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

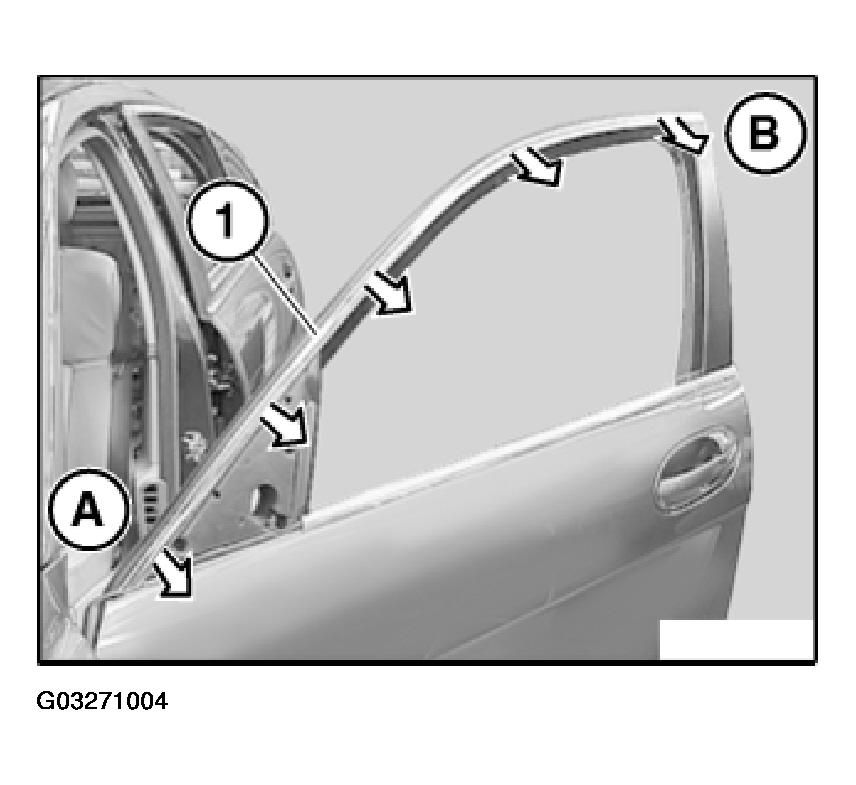

NOTE: Start pulling off decorative strip (1) at front (A) and disconnect at rear (B).

Detach decorative strip (1) in direction of arrow.

Fig 3: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

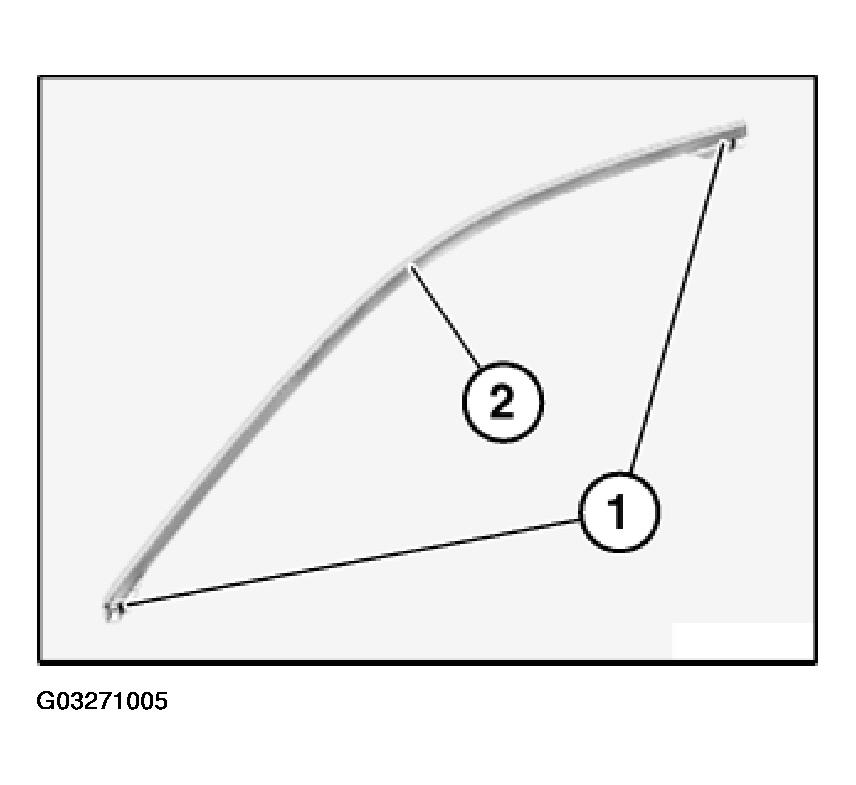

Detach seal (1) from decorative strip (2).

Fig 4: View Of Seal From Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

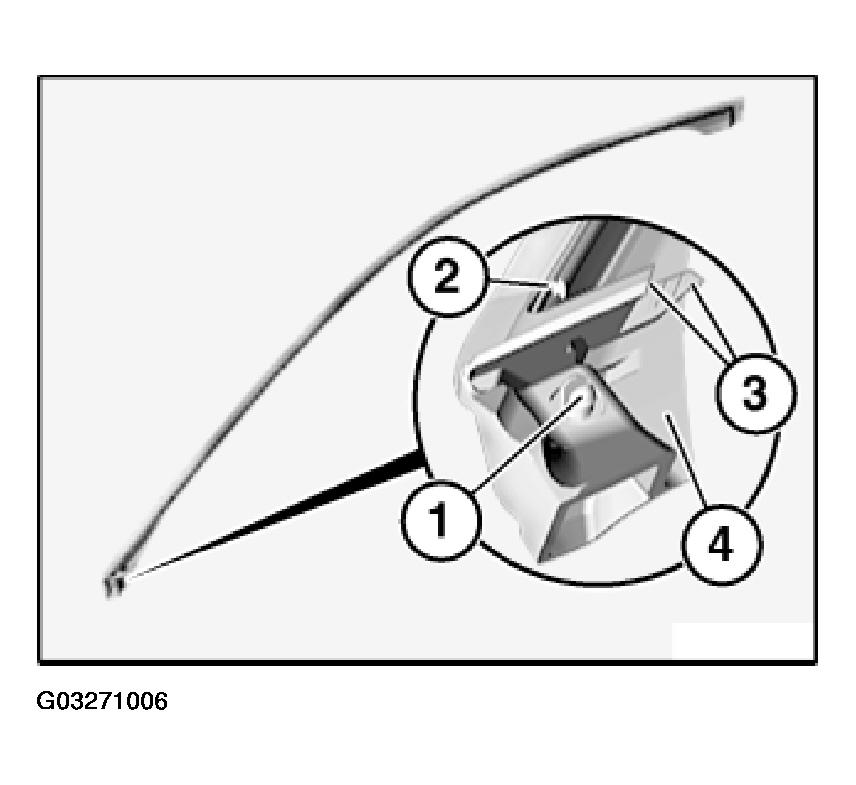

Following parts of decorative strip on window frame (4) must not be damaged or missing:

Plastic rivet.
Rubber profile.
Seal.

Fig 5: Identifying Decorative Strip Components
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

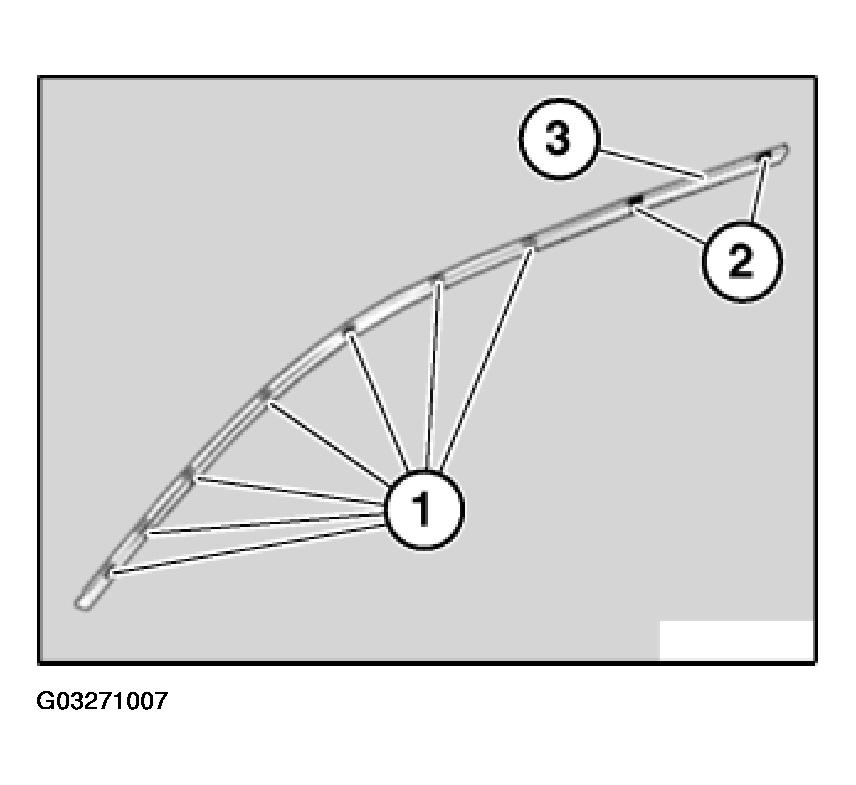

If necessary, replace faulty clips (1 and 2) on decorative strip (3).

Fig 6: Locating Decorative Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
