51 48 001 Removing and installing/replacing insulation lining on hood/bonnet
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

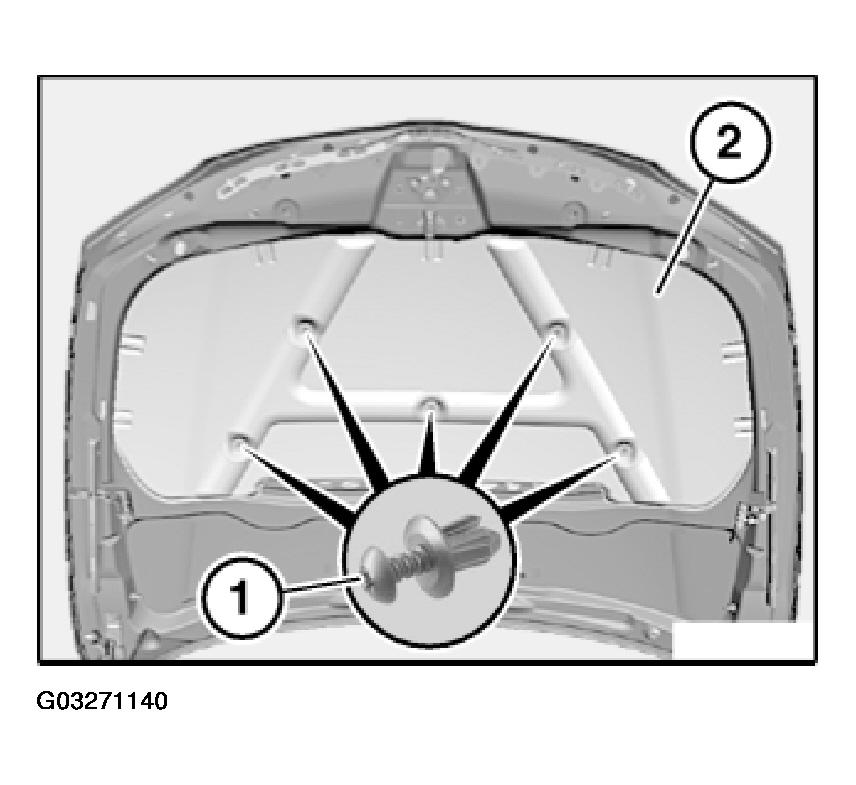

Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.
Release threaded rivets (1) on insulation lining (2).
Remove insulation lining (2).
Courtesy of BMW OF NORTH AMERICA, INC.
