51 41 ... Replacing door pocket on front left or right door trim panel

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

IMPORTANT: Only drill down to door trim panel area (2) so as not to damage the contact surface.

Drill out welding spots (1) on door trim panel (2) with 8 mm dia. welding spot drill bit and remove door pocket.

NOTE: Door pocket is welded to door trim panel only on initial installation. If necessary, release nuts instead of welding spots (1).

Fig 1: Locating Welding Spots On Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Secure door pocket with nuts (1) to door trim panel (2).

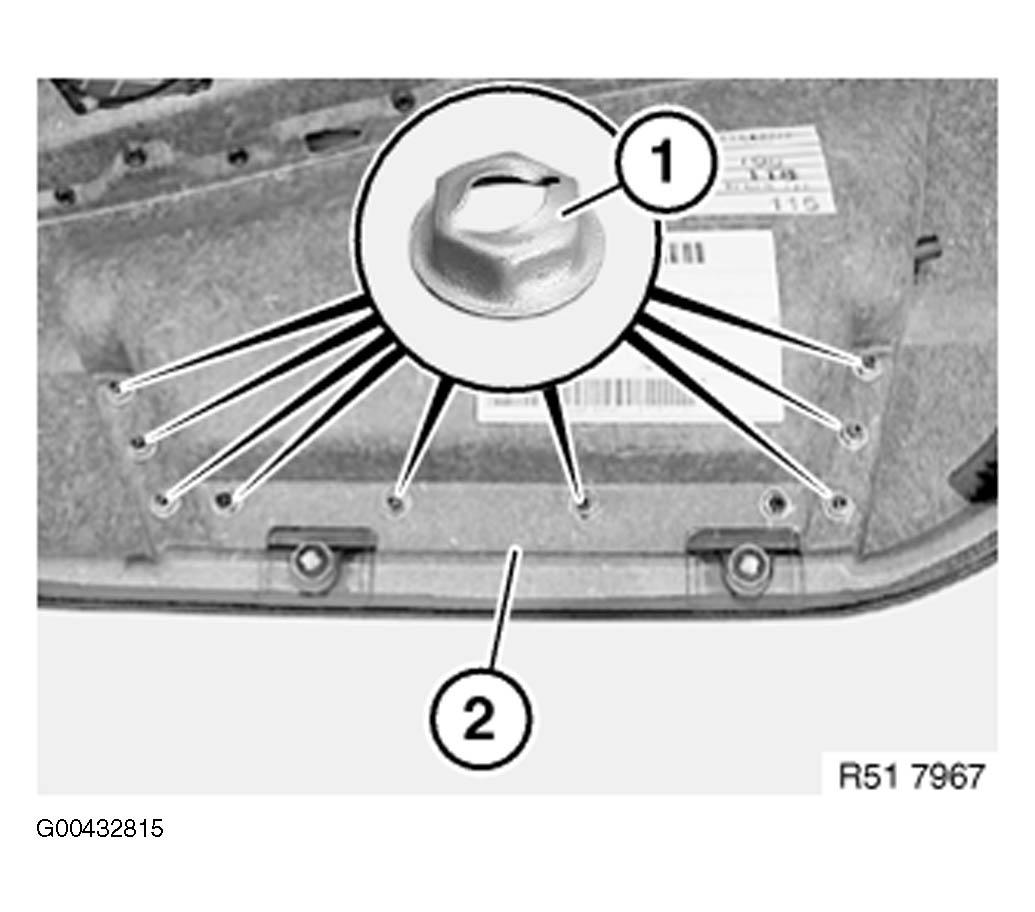

Fig 2: Identifying Door Pocket Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
