51 2. ... Removing window cavity cover strip with special tool 00 9 324 at front or rear

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see BODY EQUIPMENT - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

00 9 318
00 9 324

Open complete door window glass.

Front door:

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (letters TOP pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (letters TOP pointing upwards).

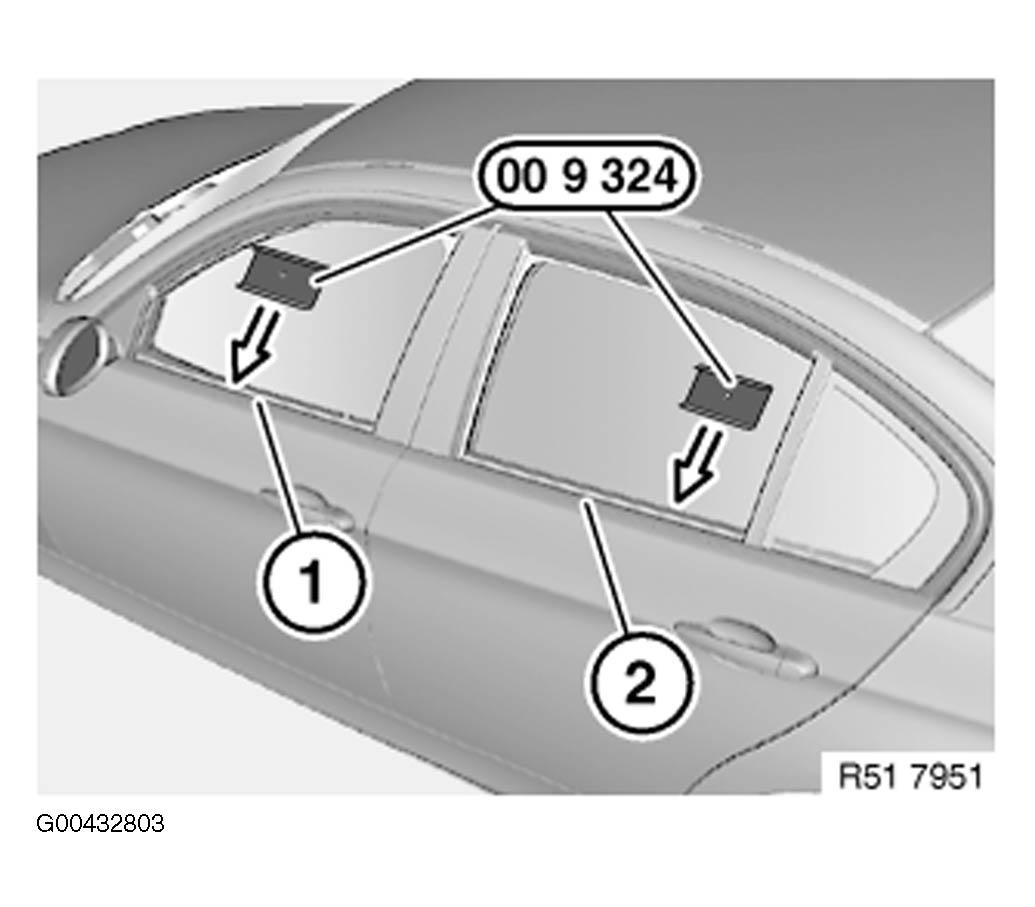

Fig 1: Identifying Special Tool 00 9 324

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows inner door panel and door window glass removed.

Special tool 00 9 324 must be correctly guided under window cavity cover strip (1).

2) Short leg, bottom.

3) Long leg, top (TOP).

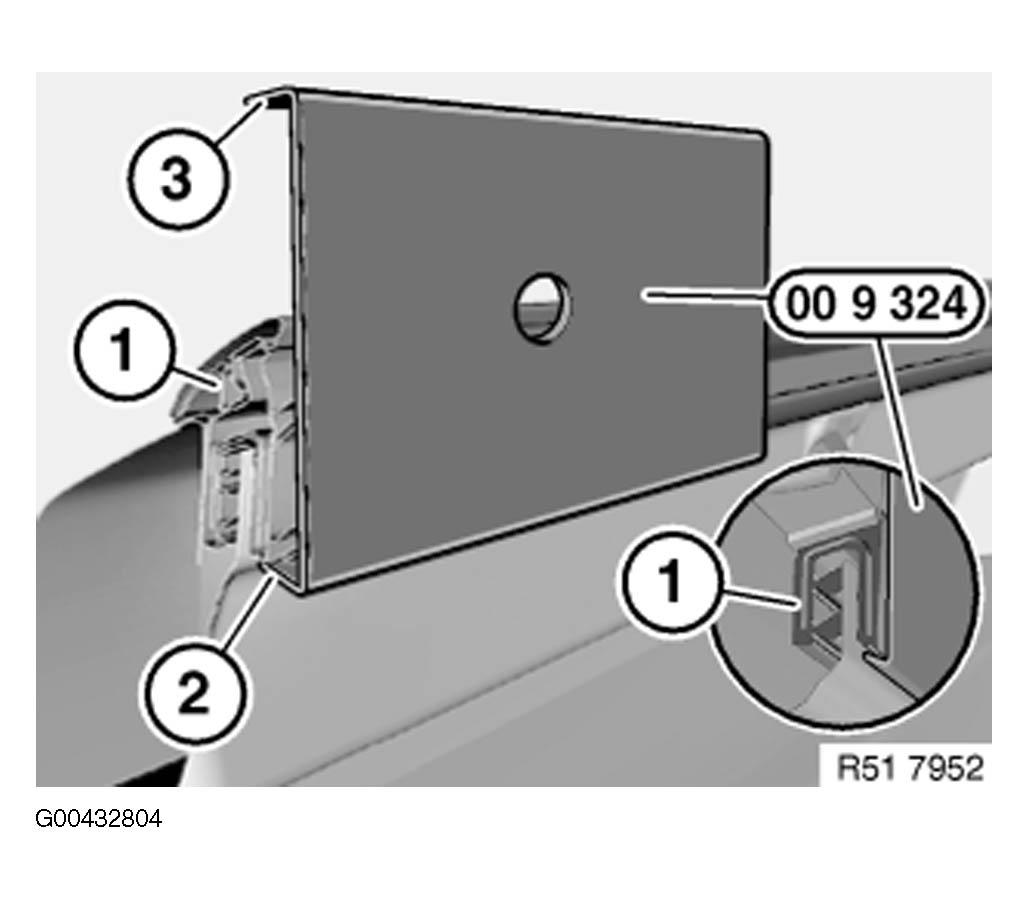

Fig 2: Installing Special Tool Into Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage! Raise window cavity cover strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

Position special tool 00 9 318 on door trim panel (1).

Slide screwdriver (2) into special tool 00 9 324 and lever window cavity cover strip (3) upwards no more than 5 mm.

Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out window cavity cover strip (3) in the process.

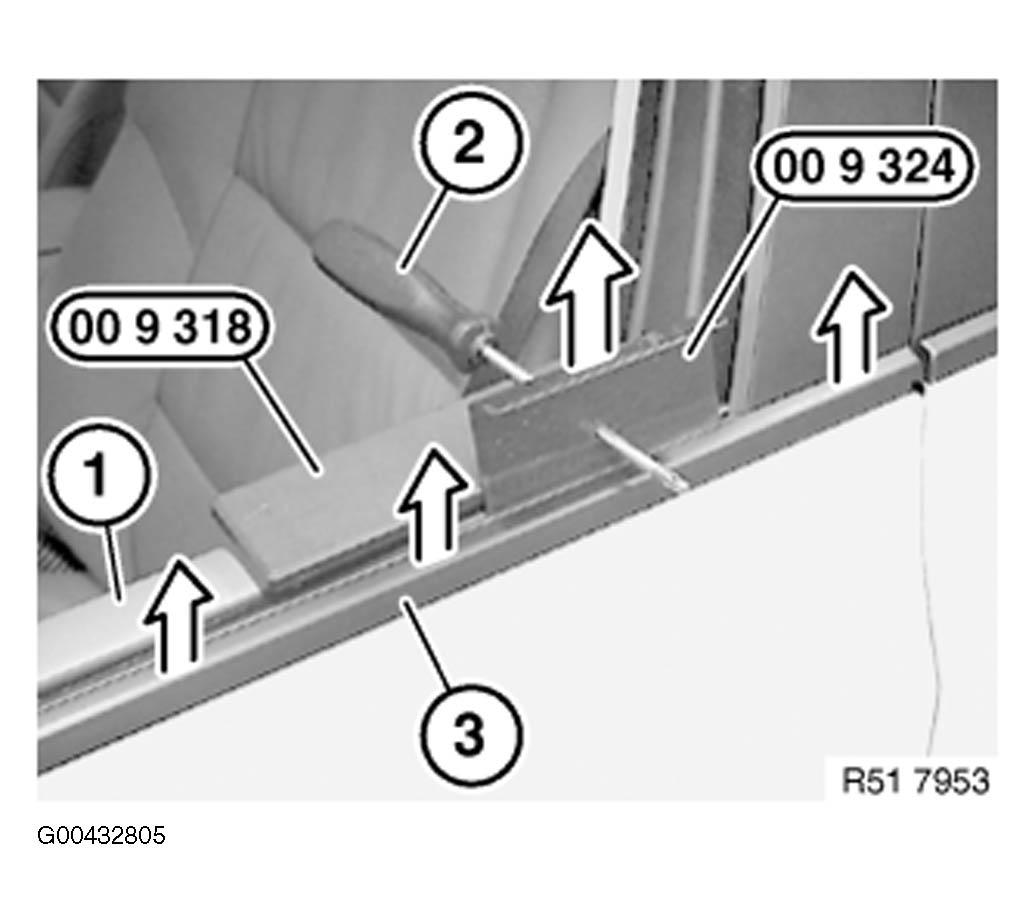

Fig 3: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
