51 11 180 Removing and installing/replacing trim grille in bumper trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release catches (2).

Remove grill (1) in direction of arrow.

Installation:

Retaining elements must not be damaged.

Grill must snap securely into place.

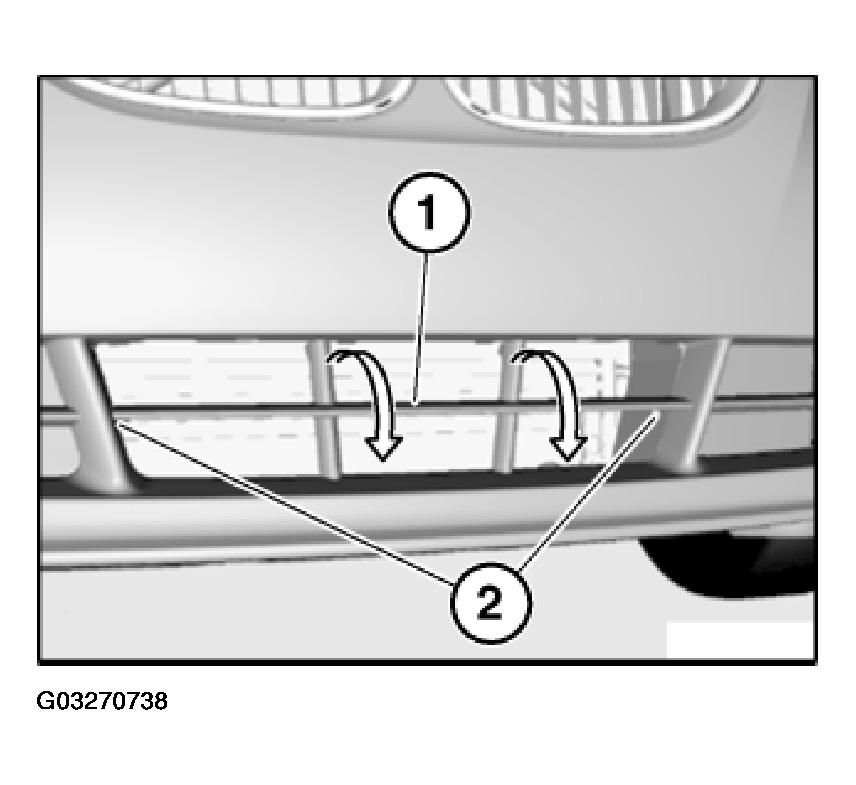

Fig 1: Locating Catches On Trim Grill

Courtesy of BMW OF NORTH AMERICA, INC.
