51 31 030 Removing and installing or replacing left or right gutter along windshield

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip gutter strip (1) towards top.

IMPORTANT: Replace clips (2) after each removal.

Note part number.

Installation:

Locks (3) of clips (2) must not be damaged.

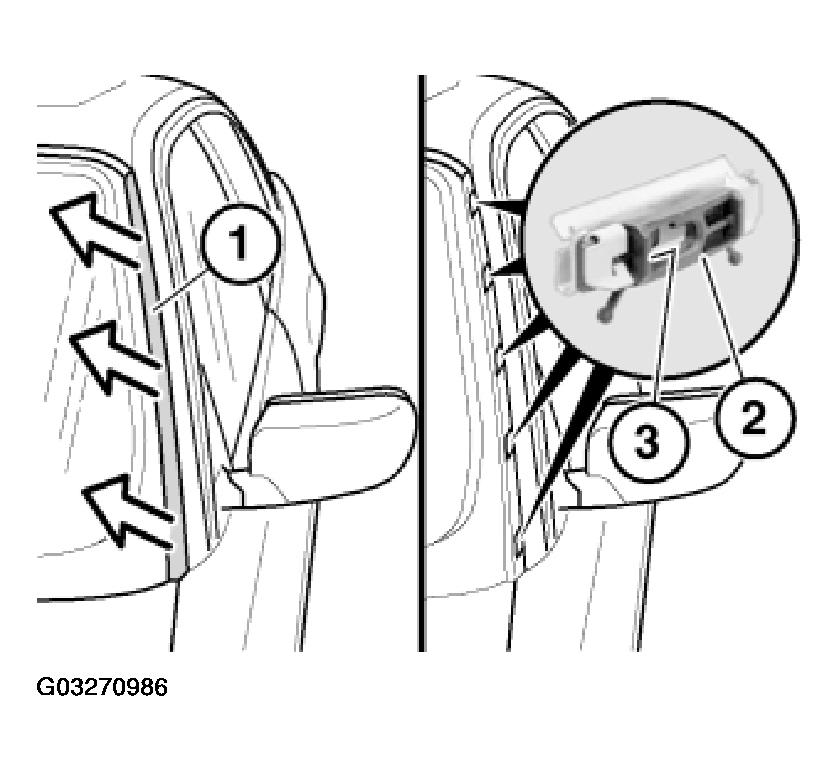

Fig 1: Identifying Gutter Strip
G03270986Courtesy of BMW OF NORTH AMERICA, INC.
