51 47 312 Replacing footrest for front passenger compartment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

NOTE: Footrest (1) is glued to carpet along line (2). Adhesive bead must remain on carpet (risk of damage).

Heat footrest (1) with hot air blower and thereby release adhesive bead from footrest (1).

If necessary, place footrest (1) under tension with assembly wedge and pull off in inward direction while applying heat.

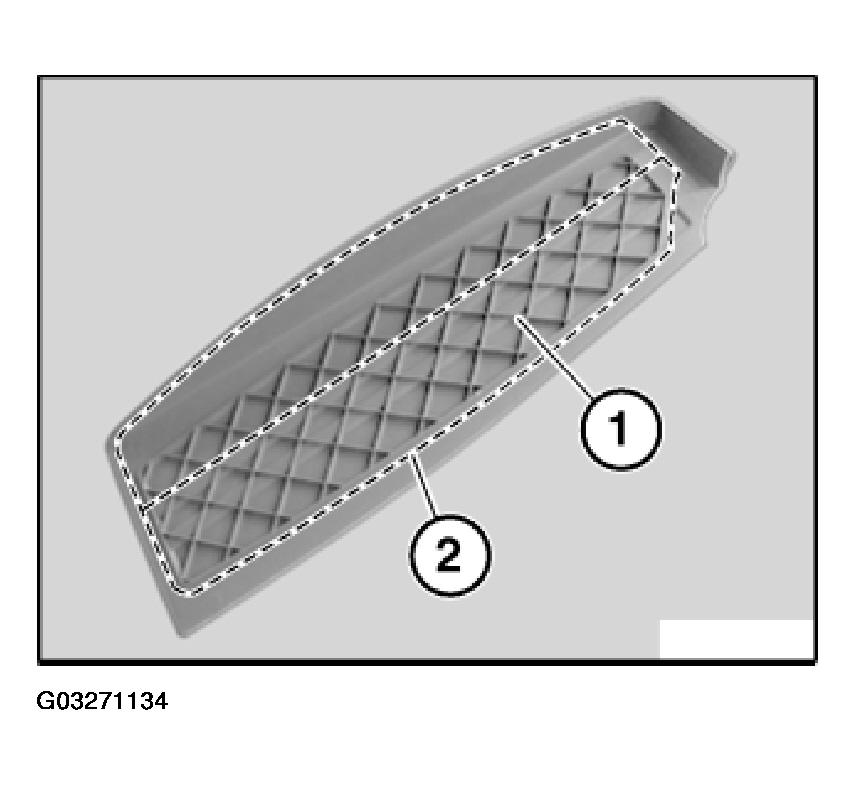

Fig 1: Locating Adhesive Bead Under Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Heat footrest (1) with hot air blower and apply adhesive bead along line (1) with hot-melt adhesive gun.

Place footrest (1) on carpet and stick on.

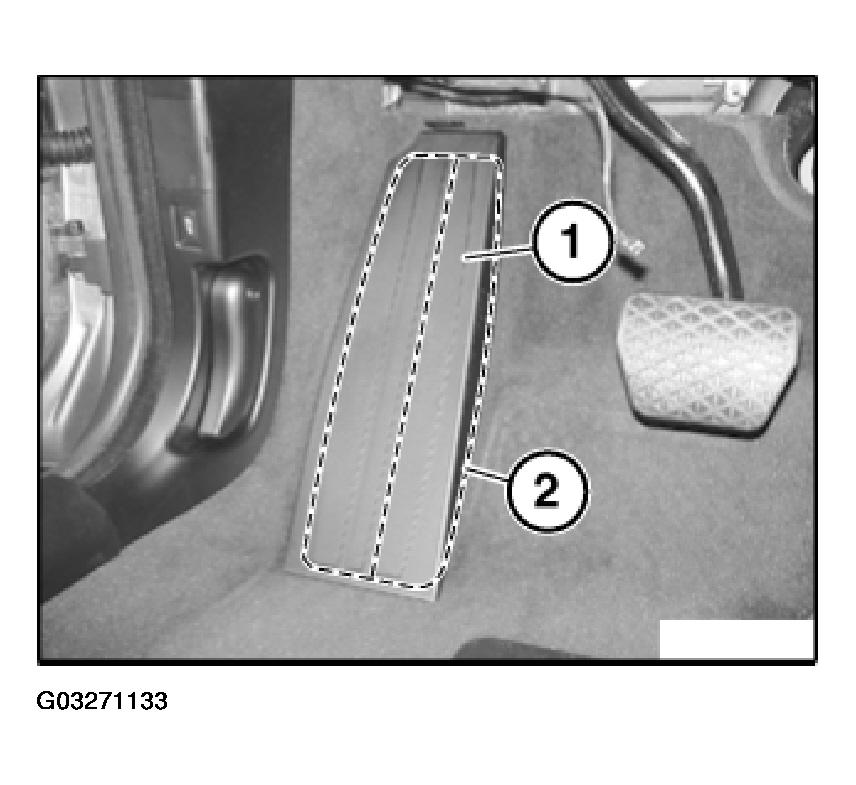

Fig 2: Identifying Adhesive Bead Application Area

Courtesy of BMW OF NORTH AMERICA, INC.
