51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 318

Lever out badge with special tool 00 9 318 and remove towards top.

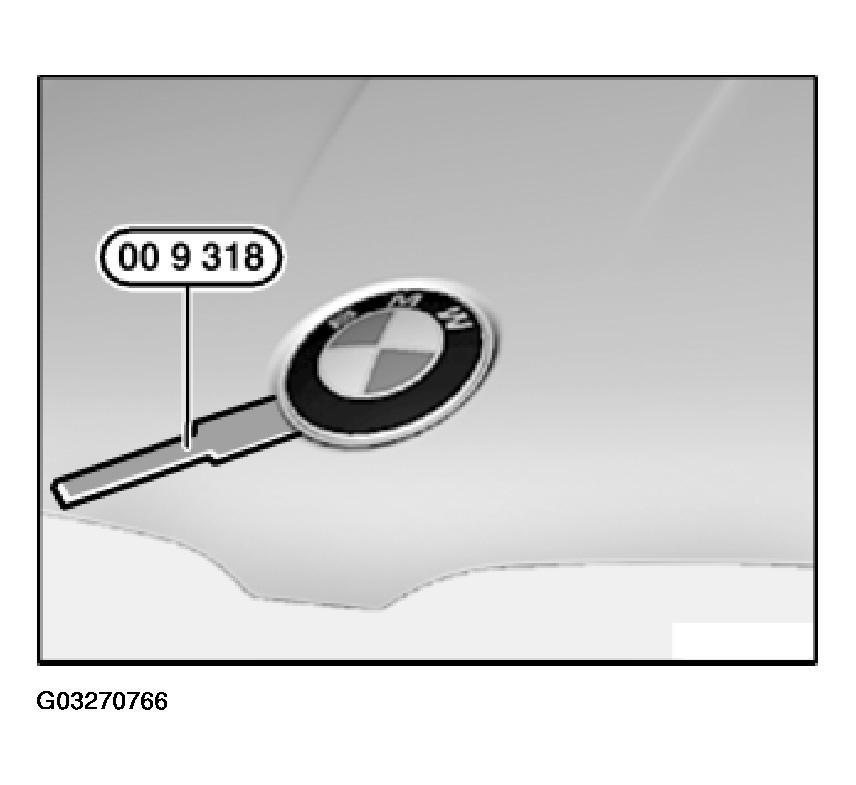

Fig 1: Removing Badge With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of badge (1) must not be damaged or missing:

2) Guide pins.

3) Grommets.

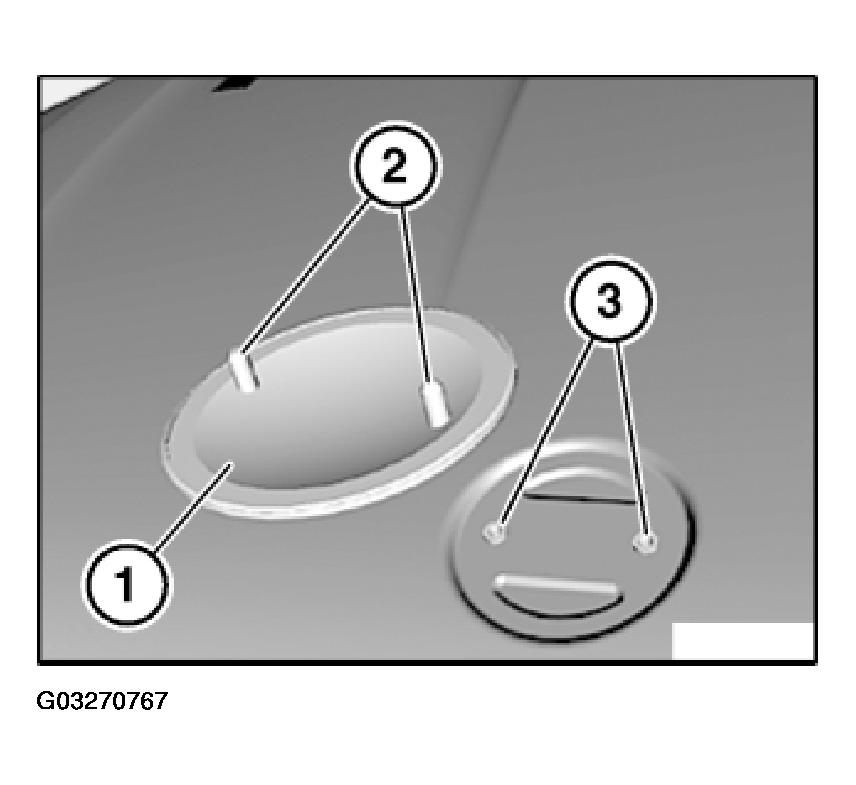

Fig 2: Identifying Guide Pins And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
