51 14 ... Instructions for attaching number/letter designation combination: Removing:

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1) from rear lid (2).

Remove remainder of adhesive layer with adhesive remover.

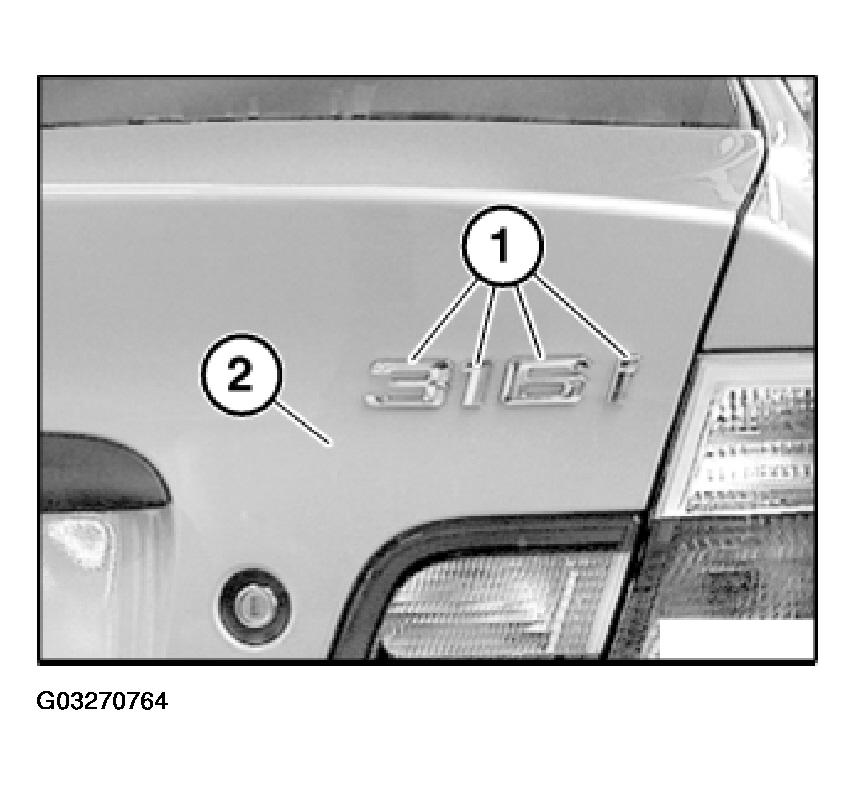

Fig 1: Identifying Model Designation On Rear Lid
G03270764Courtesy of BMW OF NORTH AMERICA, INC.
