35 40 001 Removing and installing/replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

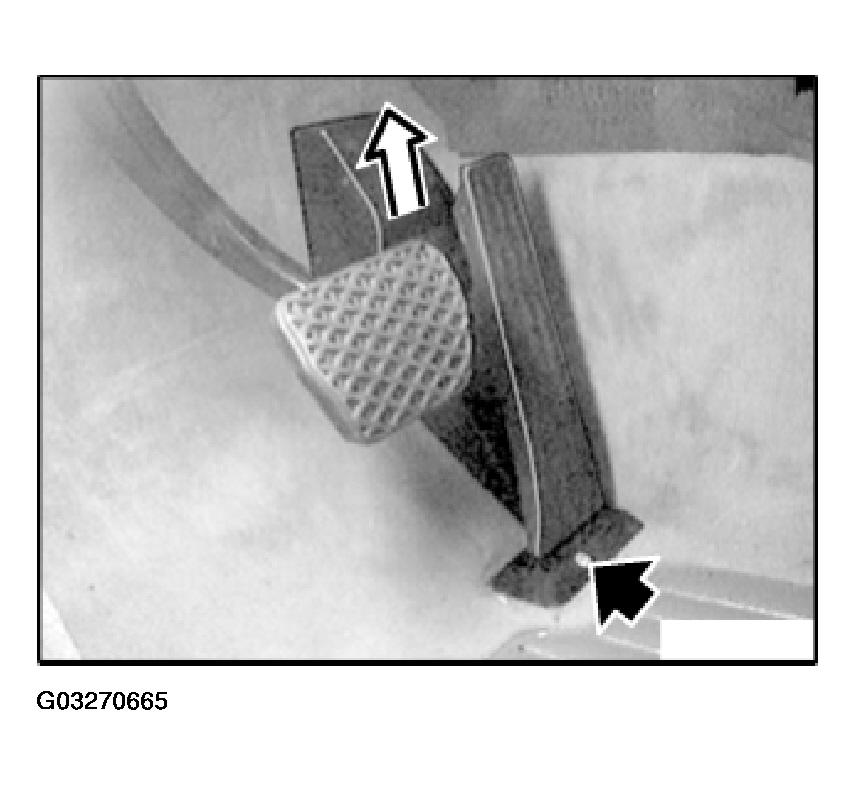

Unscrew screw.

Pull accelerator pedal module upwards out of fixture.

Installation:

Tightening torque, refer to 35 40 1AZ in PEDALS - TIGHTENING TORQUES .

Fig 1: View Of Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

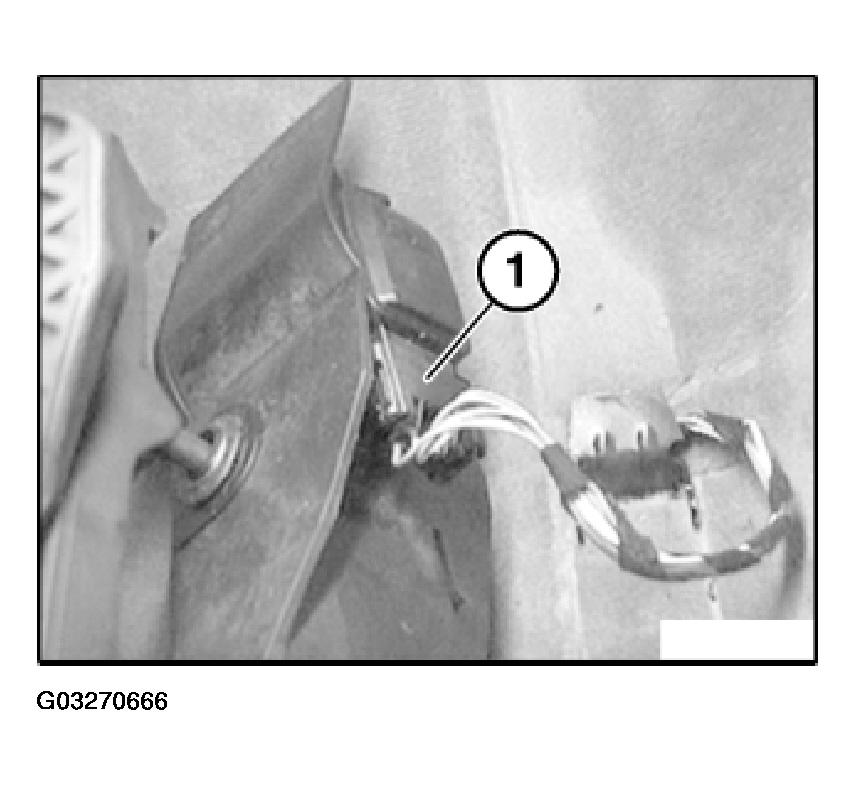

Pull off plug (1).

Remove accelerator pedal module.

Fig 2: Identifying Accelerator Pedal Module Plug

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
