34 52 550 Removing and installing / replacing DSC sensor
WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary Preliminary Tasks:
- Remove right front seat. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) and 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
- Remove front inside entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
- Lift carpet and fold back to one side.
NOTE:
The yaw sensor comprises the function of the transversal-acceleration sensor and the yaw sensor.
Unlock plug connection.
Installation:
Make sure plug connection locks correctly.

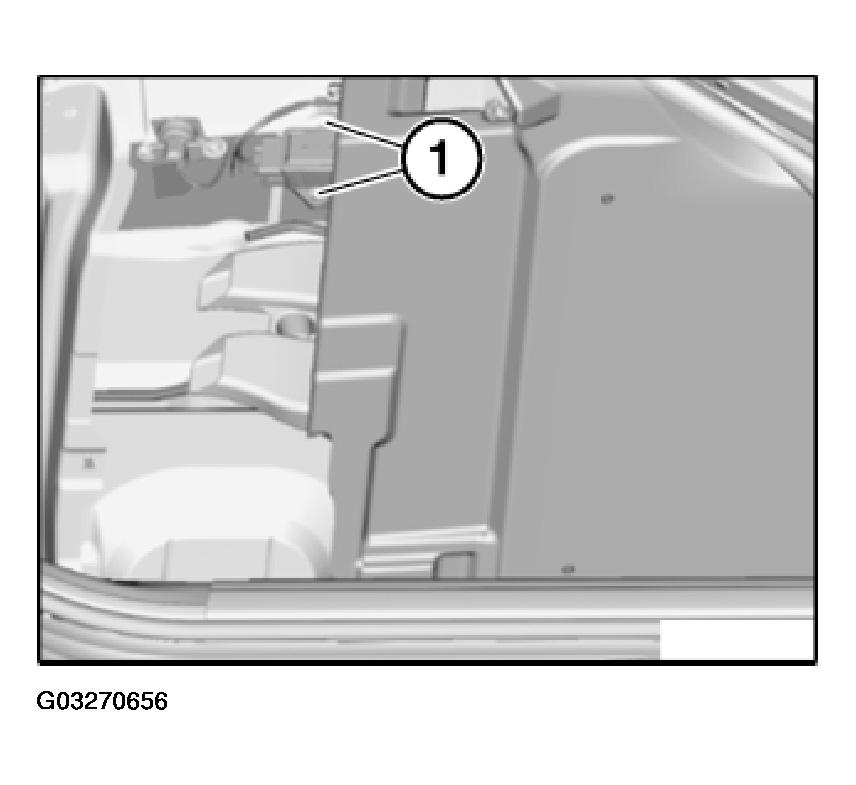

Release screws (1) and remove rotation rate sensor.
Installation:
Tightening torque, refer to 34 51 3AZ in BRAKES - TIGHTENING TORQUES - E60 .
