Flushing Brake System Completely

WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close bleed valve.

Follow same procedure on rear left, front right and front left wheel brake.

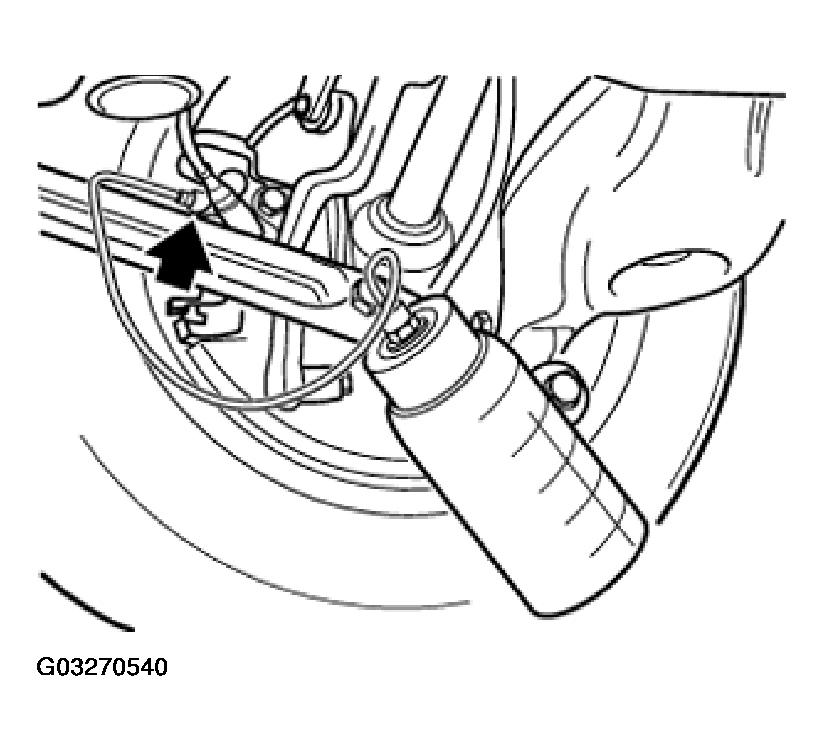

Fig 1: Locating Right Brake Caliper Bleeder Valve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The clutch slave cylinder must also be scavenged in vehicles with manual transmissions.

Switch off brake fluid changer and remove from expansion tank.

Check brake fluid level.

Close expansion tank.

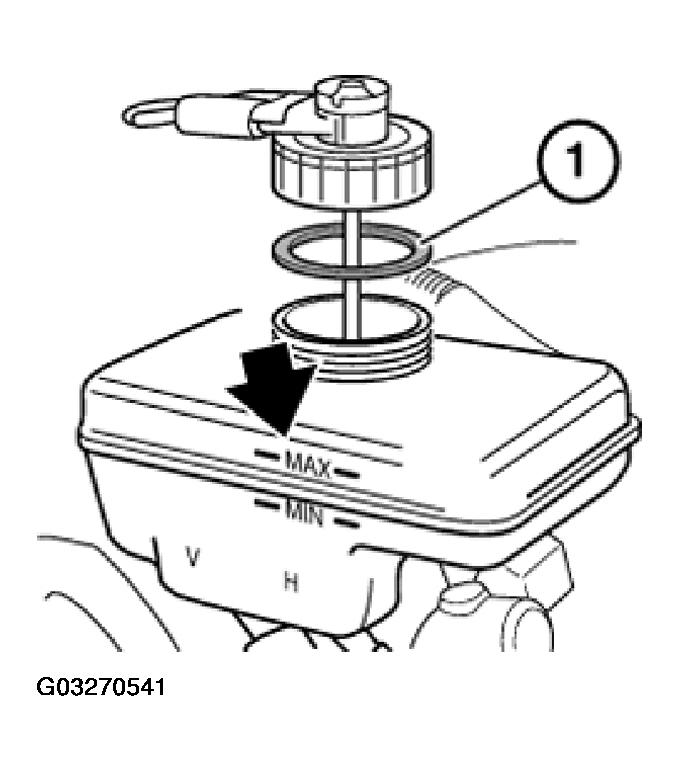

NOTE: Pay attention to rubber seal (1) in sealing cap.

Fig 2: Identifying Rubber Seal In Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.
